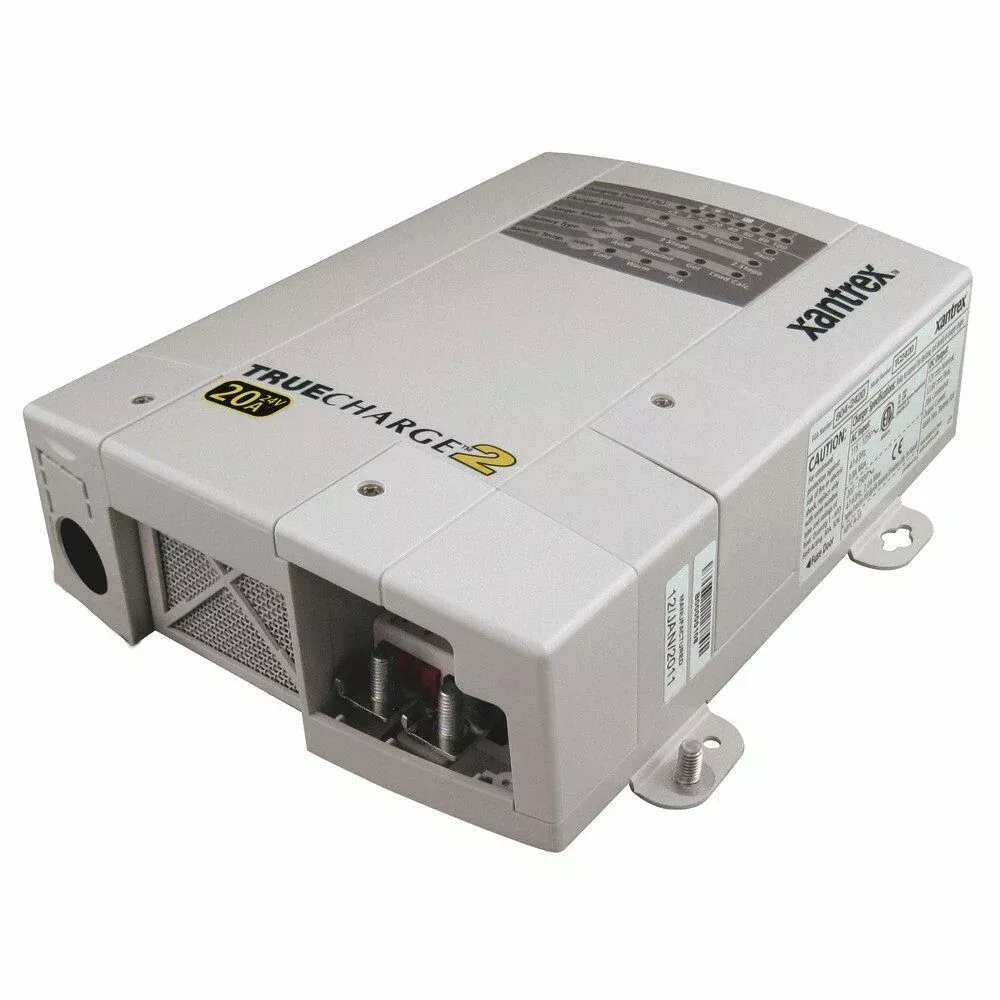

The Xantrex TRUECharge2 20A Battery Charger 24V (804-2420) from Nomadic Supply Company® is designed to meet the specific needs of marine and commercial markets. Available in 10A, 20A and 30A versions, each model packs a powerful universal charger (90-240Vac, 47-63 Hz) in an ultra-compact, lightweight package.
TRUECharge2 battery chargers are highly versatile and can be mounted in multiple positions, thanks to their inherent drip-free design characteristics. TRUECharge2 delivers outstanding low electrical interference, coupled with efficient, power factor corrected, multistage charging capability. Installation is a breeze, thanks to the easy-access AC and DC wiring compartments. The easy-to-read display can be augmented with an optional remote panel.
NEW PARALLEL FEATURE
TRUECharge2 24-volt chargers are available with parallel stacking feature which allows you to double the output current when used with the optional REMOTE PANEL (part 808-8040-01).
Xantrex TRUECharge2 20A Battery Charger 24V (804-2420) Features:
- 24-volt models available in 10A, 20A and 30A
- Microprocessor-controlled, multistage charging algorithms
- Settings for two and three-stage charging
- Settings for flooded, gel, AGM or lead-calcium batteries
- Auto-ranging universal input voltage (90-265 Vac, 47-63 Hz) is also compatible with a generator or other low-quality power sources
- Power factor corrected, temperature-compensated charging
- Battery-equalization feature
- Ability to charge batteries drained to extremely low voltage
- Optional Battery Temperature Sensor (Part 808-0232-01)
- Optional Remote Panel (808-8040-01)
Xantrex TRUECharge2 20A Battery Charger 24V (804-2420) Features:
- Reverse battery polarity protection
- Drip-proof design
- Over and under-temperature protection
- DC over-voltage protection
- Battery overcharging protection
