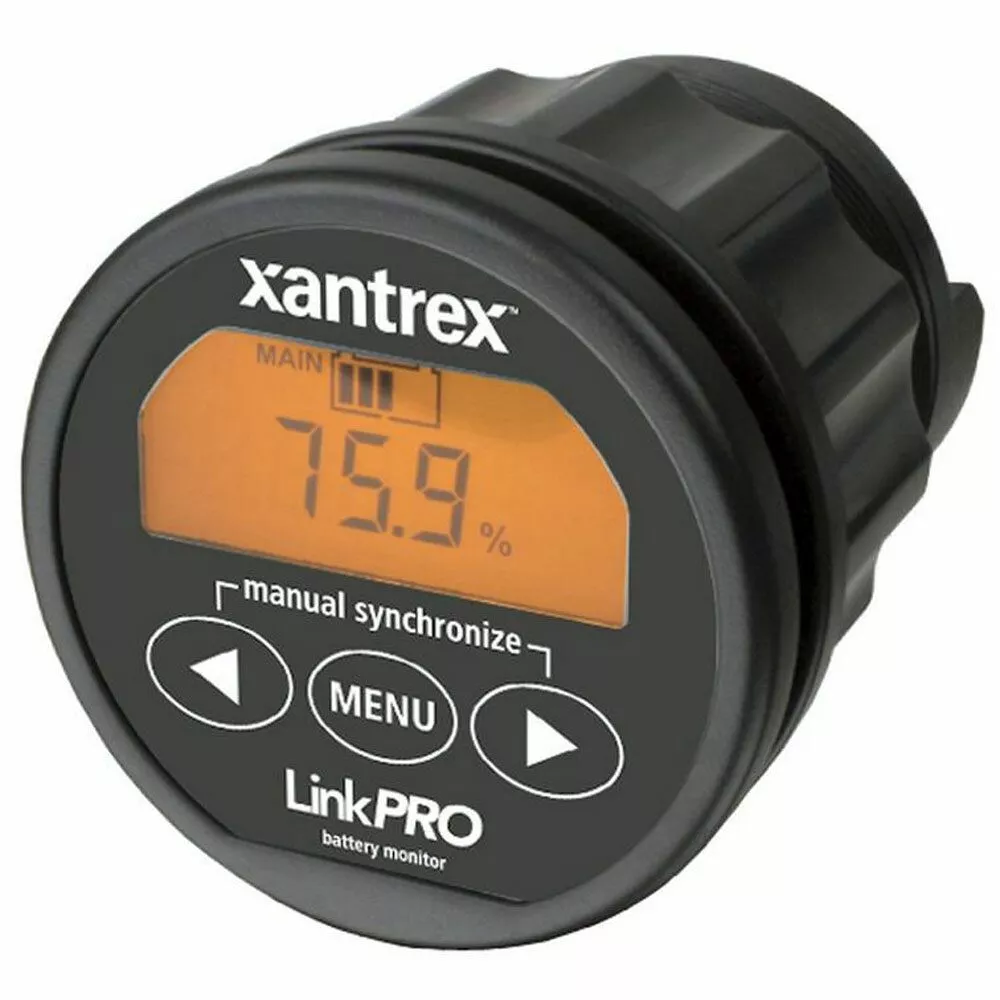

The Xantrex LinkPRO Battery Monitor (84-2031-00) from Nomadic Supply Company® selectively displays voltage, charge and discharge current, consumed amp hours, remaining battery capacity, and the time remaining of your battery bank. Using a clear backlit LCD Display and an intuitive user interface, all parameters can be recalled with just a button press. A second battery input is also provided to monitor the voltage on a second battery.
Defining the amount of energy available in a battery is a complex task since battery age, discharge current and temperature all influence the actual battery capacity. High-performance measuring circuits, along with complex software algorithms, are used to exactly determine the remaining battery capacity. A new shunt selection feature enables the Xantrex LinkPRO Battery Monitor (84-2031-00) to measure currents up to 10,000 Amps.
Xantrex LinkPRO Battery Monitor (84-2031-00) is equipped with an internal programmable alarm relay, to run a generator when needed or to turn off devices when the battery voltage exceeds programmable boundaries.
Xantrex LinkPRO Battery Monitor (84-2031-00) Features:
- Read your battery bank like a fuel gauge
- Provides critical information about the status of your battery bank
- Displays voltage, current, consumed amp hours, and remaining battery capacity
- Two battery inputs
- Auto-sensing battery voltage inputs
- Large backlit LCD Display
- Quick nut mounting construction
- Programmable alarm relay
- Shunt selection capability enables flexible system integration
- Splashproof front panel
- 500 Amp shunt included
- CE and e-mark certified
- Displays time remaining
- Communication/expansion port
- Stores a wide range of historical events in internal memory
- Advanced programmable alarm relay
- Battery temperature sensor input
