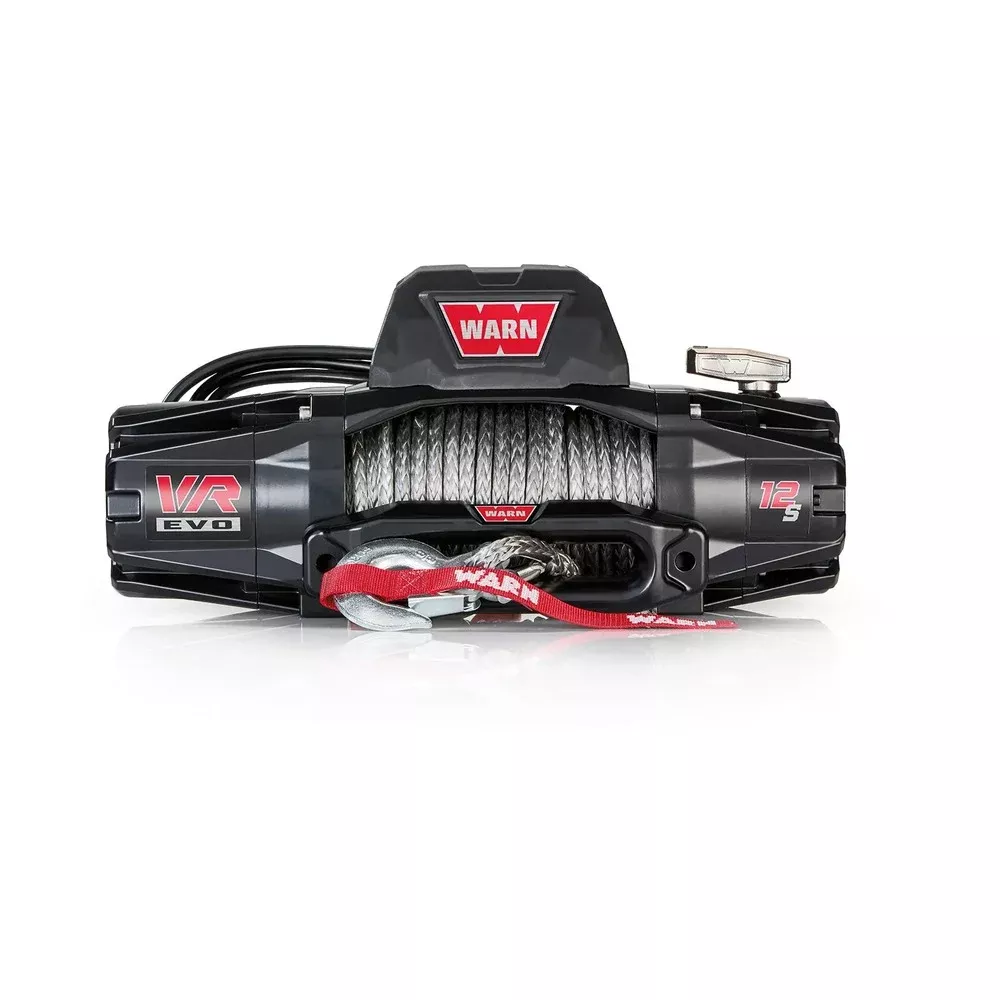

The Warn VR EVO 12-S 12V 12,000 lb. Winch w/ Synthetic Rope (103255) from Nomadic Supply Company® delivers class-leading performance with the lowest amp draw and fastest line speed under load, backed by IP68-rated waterproof construction that keeps you pulling in any environment. Built for serious off-road duty on 3/4- and one-ton pickups and larger rigs, the Warn VR EVO 12-S pairs a robust 12,000 lb. rated line pull with the convenience of 90 feet of lightweight synthetic rope.
The Warn VR EVO 12-S 12V 12,000 lb. Winch w/ Synthetic Rope (103255) is engineered from the ground up for operators who demand reliability without compromise. A sealed Albright contactor protects the electrical system from the elements, while the rugged one-piece cast-aluminum tie plate reinforces the entire assembly for long-term durability under extreme loads.
Versatility is a defining characteristic of the Warn VR EVO 12-S 12V 12,000 lb. Winch w/ Synthetic Rope (103255), thanks to a two-in-one remote that offers both wired and wireless control options so you can manage recovery situations from wherever the moment demands. The relocatable control pack supports low-profile installations, and the automatic spring brake combined with free-spooling capability ensures safe, efficient operation every time you spool out.
Warn VR EVO 12-S 12V 12,000 lb. Winch w/ Synthetic Rope (103255) Features:
- Rugged One-Piece Cast-Aluminum Tie Plate: A rugged, one-piece, cast-aluminum tie plate provides added strength and durability to the entire winch assembly.
- Synthetic Rope and Hawse Fairlead: Ninety feet of lightweight, easy-to-handle 3/8″ synthetic rope and a black hawse fairlead are included for safer, more manageable recovery operations.
- Two-in-One Remote: A two-in-one remote with wired and wireless controls provides increased winching options so you can operate the winch from the most advantageous position.
- Sealed Albright Contactor: A sealed Albright contactor delivers the ultimate in reliability, protecting the electrical connection from moisture, debris, and the harshest trail conditions.
- Relocatable Control Pack: The control pack can be relocated for low-profile installations, giving you greater flexibility when mounting the winch on your specific vehicle setup.
- Limited Lifetime Warranty: The Warn VR EVO 12-S 12V 12,000 lb. Winch w/ Synthetic Rope (103255) is backed by a limited lifetime warranty on mechanical components and a seven-year electrical warranty.
- Lowest Amp Draw and Fastest Line Speed Under Load: The Warn VR EVO 12-S 12V 12,000 lb. Winch w/ Synthetic Rope (103255) achieves the lowest amp draw and fastest line speed under load in its class, maximizing efficiency and reducing strain on your vehicle’s electrical system.
- IP68-Rated Waterproof Construction: IP68-rated waterproof construction ensures consistent performance in all conditions, whether you’re crossing streams, navigating mud, or working in heavy rain.
- 12,000 lb. Rated Line Pull Capacity: A 12,000 lb. rated line pull capacity makes the Warn VR EVO 12-S well suited to recovering large, heavy vehicles from demanding off-road situations.
- 3-Stage Planetary Gearing: Three-stage planetary gearing with a 234:1 gear ratio delivers smooth, powerful pulling performance with reliable mechanical efficiency.
- 12V Series Wound Motor: A 12V series wound motor provides the high torque output needed for consistent, dependable recovery performance under load.
- Automatic Spring Brake: An automatic spring brake holds the load securely whenever the winch is not actively spooling, preventing unintended line movement.
- Free Spooling Capability: Free spooling capability allows you to quickly pull out the synthetic rope by hand when positioning for a recovery, saving valuable time in the field.
- Power Out Feature: The power out feature uses the motor to unspool the rope under power, giving you precise control over line deployment even under tension.
- 4-Bolt Mounting Pattern: A 4-bolt mounting pattern measuring 4.5 IN x 10 IN ensures a secure, stable fit on compatible winch carriers and mounts.
- Ideal for 3/4 and one-ton pickups and all types of larger, heavier rigs
- Requires Winch Carrier or Winch Mount
Warn VR EVO 12-S 12V 12,000 lb. Winch w/ Synthetic Rope (103255) Specifications:
- Brake Activation: Automatic
- Brake Type: Spring
- Cable Diameter: 0.375 IN
- Cable Length: 90 FT
- Cable Material: Synthetic Rope
- D Shackle Included: No
- Fairlead Type: Hawse
- Free Spooling: Yes
- Gear Ratio: 234:1
- Gearing: 3-Stage Planetary
- Hand Saver: Yes
- Length: 21 IN
- Maximum Height: 10.1 IN
- Maximum Width: 7.1 IN
- Motor Type: Series Wound
- Motor Voltage: 12
- Mounting Bolt Pattern Length: 4.5 IN
- Mounting Bolt Pattern Width: 10 IN
- Mounting Hole Quantity: 4
- Power Out: Yes
- Rated Line Pull: 12,000 LB
- Remote Included: Yes
- Remote Type: Wire, Wireless
- Solenoid Type: Yes
- Type: Electric
- Voltage: 12
