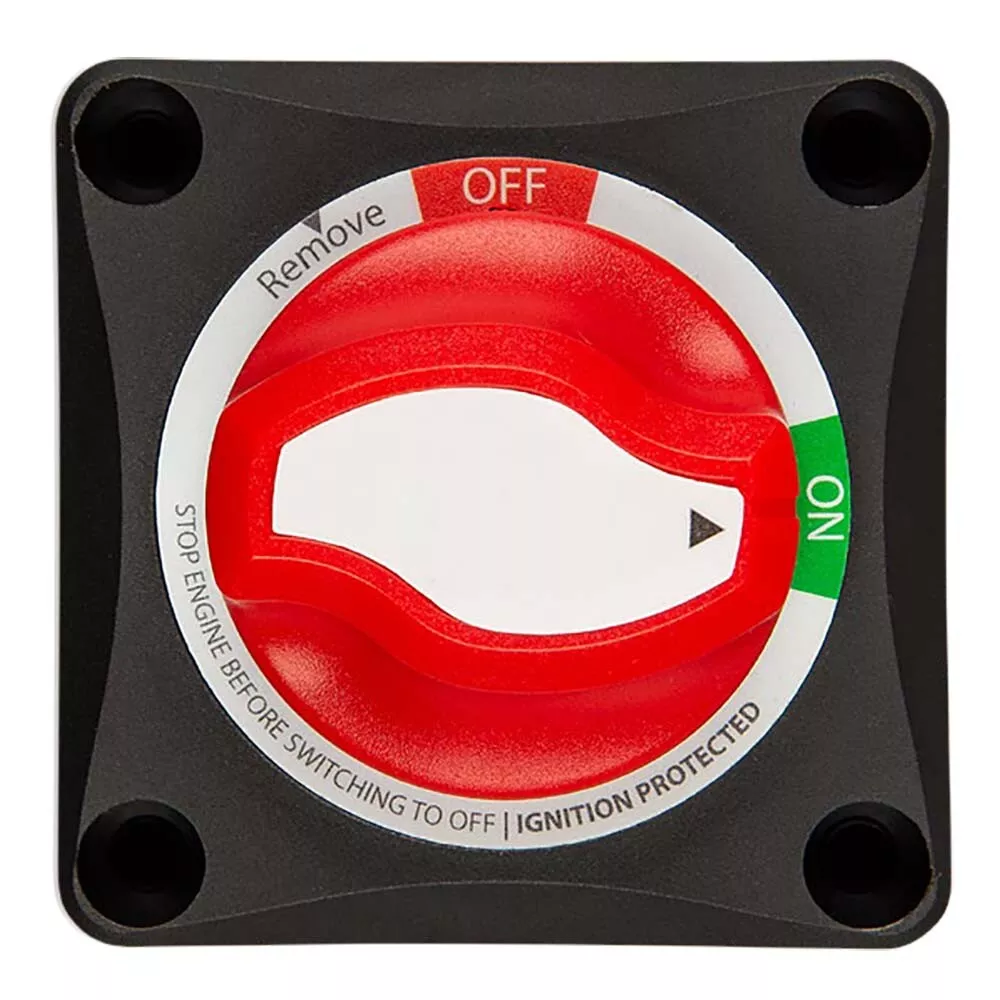

The Victron Energy Surface or Panel Mount 275A 12-48VDC Battery Switch (VBS127010010) from Nomadic Supply Company® is suitable for battery systems up to 48V. The Victron Energy Surface or Panel Mount 275A 12-48VDC Battery Switch (VBS127010010) has a unique ergonomic and aesthetic knob design. The knob is removable for isolation or safety purposes.
The Victron Energy Surface or Panel Mount 275A 12-48VDC Battery Switch (VBS127010010) can be either surface or panel-mounted, providing flexibility during installation.
The Victron Energy Surface or Panel Mount 275A 12-48VDC Battery Switch (VBS127010010) meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.
Victron Energy Surface Mount 275A 12-48VDC Battery Switch (VBS127010010) Features:
- 275A Continuous Rating. Rated for 275 amps of continuous current for high-power DC electrical systems.
- 12-48VDC Operating Range. Compatible with 12V, 24V, and 48V battery systems for versatile installation across different voltage architectures.
- Surface Mount Design. Compact surface-mount form factor for easy installation on bulkheads, panels, and electrical compartments.
- Single-Pole Disconnect. Provides a manual disconnect point for safely isolating battery banks during maintenance and emergencies.
- Durable Construction. Built for the demanding conditions of marine, RV, and industrial power systems with high-current rated terminals.
Victron Energy Surface Mount 275A 12-48VDC Battery Switch (VBS127010010) Specifications:
- Max. Continuous Current: 275 A
- One Minute Rating: 455 A
- Cranking Rating: 1250 A
- Voltage Rating: 48 V
- Terminal Material: Tin-plated copper
- Hex Nut Material: Tin-plated copper
- Terminal Diameter: 3/8 inch (9.53 mm)
- Recommended Torque: 70 lbf/inch (8 N/m)
- Base Material: Glass fiber reinforced nylon
- Weight: 0.4 lb (0.2 kg)
- Dimensions (l x w x h): 2.7 x 3.0 x 2.7 inch (69.5 x 76.3 x 69.5 mm)
- Mounting: Surface or rear panel mount
- Ignition Protected: ISO8846 / SAE J1171
Victron Energy Surface Mount 275A 12-48VDC Battery Switch (VBS127010010) Documents:
Victron Energy Surface or Panel Mount 275A 12-48VDC Battery Switch (VBS127010010) Manual
