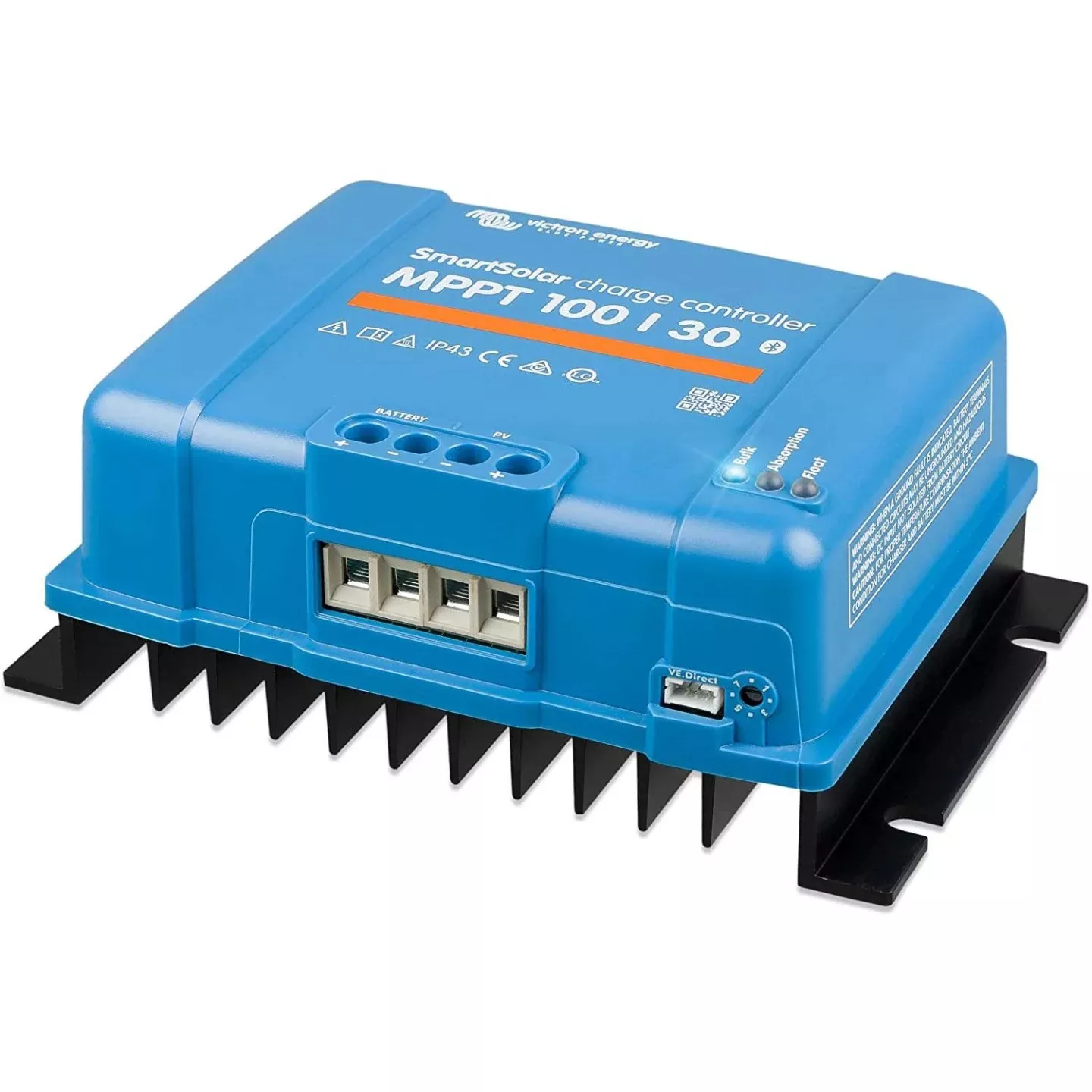

The Victron Energy SmartSolar MPPT 100/30 Solar Charge Controller from Nomadic Supply Company® gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, Victron Energy SmartSolar MPPT 100/30 Solar Charge Controller maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The Victron Energy SmartSolar MPPT 100/30 Solar Charge Controller (SCC110030210) will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
Bluetooth Smart built-in
The wireless solution to set-up, monitor, update and synchronize SmartSolar Charge Controllers.
VE.Direct
For a wired data connection to a Color Control GX, other GX products, PC or other devices
Ultrafast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay).
Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life.
The load output is short circuit proof.
Battery Life: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months.
The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
Programmable battery charge algorithm
See the software section on our website for details
Day/night timing and light dimming option
See the software section on our website for details
Internal temperature sensor
Compensates absorption and float charge voltage for temperature.
Optional external battery voltage and temperature sensing via Bluetooth
A Smart Battery Sense or a Victron BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
Fully discharged battery recovery function
Will initiate charging even if the battery has been discharged to zero volts.Will reconnect to a fully discharged Li -ion battery with integrated disconnect function
Victron Energy SmartSolar MPPT 100/30 Solar Charge Controller (SCC110030210) Features:
- Ultra-Fast Maximum Power Point Tracking. Advanced MPPT algorithm continuously optimizes solar panel output in all conditions including partial shading.
- Built-In Bluetooth. Wireless connectivity enables monitoring and configuration through the free VictronConnect smartphone app.
- Multi-Stage Adaptive Charging. Intelligent charge algorithm with bulk, absorption, and float stages adapts to battery chemistry for optimal charging and longevity.
- Wide PV Input Voltage Range. Accepts a wide range of solar panel configurations for maximum flexibility in system design.
- VE.Direct Communication. Digital port connects to Victron GX devices for complete system monitoring, data logging, and remote management.
- Day/Night Load Output Control. Programmable load output with timer functionality for automatic lighting or load management.
Victron Energy SmartSolar MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Victron Energy SmartSolar MPPT 100/30 Remote Monitoring and Control
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartPhone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520.
Victron Energy SmartSolar MPPT 100/30 Solar Charge Controller (SCC110030210) Specifications:
- Dimensions: (H x W x D) 1.2″ x 7.3″ x 2.8″
- Weight: 2.86 lbs.
- Power terminals: 16 mm² / AWG6
- Protection: IP43 (electronic components), IP22 (connection area)
- Battery voltage: 12/24V Auto select
- Rated charge current: 30A
- Nominal PV power, 12V: 440W
- Nominal PV power, 24V: 880W
- Nominal PV power, 48V: n. a.
- Max. PV short circuit current: 35A
- Maximum PV open circuit voltage: 100V
- Charge voltage ‘absorption’ 14.4V / 28.8V (adjustable)
- Charge voltage ‘float’ 13.8V / 27.6V (adjustable)
