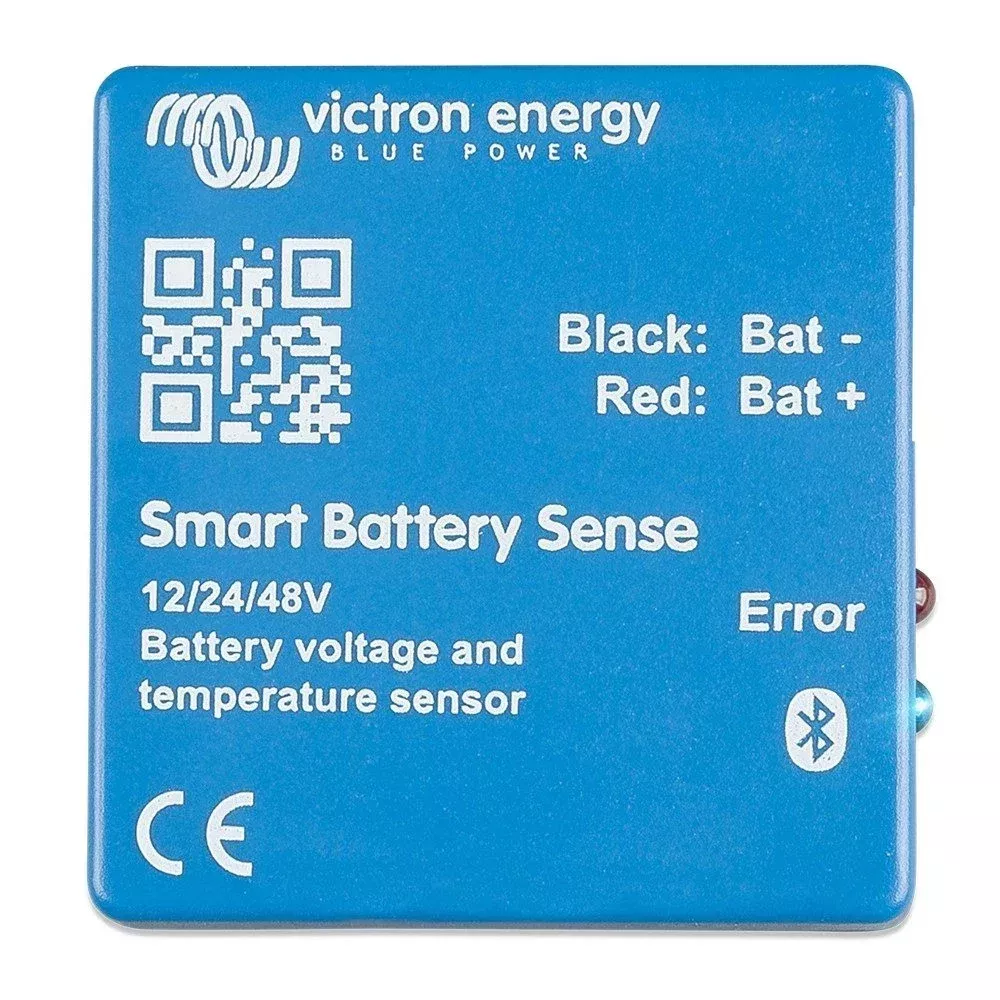

The Victron Energy Smart Battery Sense Voltage Sensor (SBS050150200) from Nomadic Supply Company® measures battery voltage and temperature wirelessly for accurate charging.
The Victron Energy Smart Battery Sense Voltage Sensor (SBS050150200) is a wireless battery voltage-and-temperature sensor. Although it is designed specifically for Victron MPPT Solar Chargers it can be used anywhere. The display can be shown on a Phone or tablet. Victron Energy Smart Battery Sense Voltage Sensor (SBS050150200) is ideal for out of the way batteries like generator starting batteries or bow thruster batteries.
When used with a Victron MPPT Solar Charger the charger uses the measurements to optimize its charge parameters. The accuracy of temperature data will improve battery charging efficiency, and prolong battery life. The connection between Smart Battery Sense and one or more Solar Charger(s) is wireless: It uses VE.Smart Network – a wireless technology based on Bluetooth Smart. Simple to install and configure, Smart Battery Sense comes with an inline fuse and pre-crimped eyelets. Revealing the self-adhesive tape on the back allows you to mount it directly on the battery. Victron Energy Smart Battery Sense Voltage Sensor (SBS050150200) long range version and can be read up to 10 meters away (depending on conditions).
- Operating voltage range 8V to 60V
- Operating temperature range -10°C to +60°C
- Cable length 45cm
- Dimensions 15 x 40 x 42 mm
Victron Energy Smart Battery Sense Voltage Sensor (SBS050150200) Features:
- Wireless Voltage and Temperature Sensing. Bluetooth-connected sensor provides accurate battery voltage and temperature data to compatible Victron charge controllers.
- Direct Battery Measurement. Mounts at the battery terminals for precise readings unaffected by voltage drop in long cable runs from the charge controller.
- Automatic Temperature Compensation. Enables connected charge controllers to adjust charge voltage based on actual battery temperature for safer, more effective charging.
- Bluetooth Smart Communication. Wirelessly pairs with SmartSolar MPPT charge controllers within Bluetooth range for cable-free data transmission.
- Simple Installation. Ring terminals connect directly to battery posts with no additional wiring to the charge controller.
