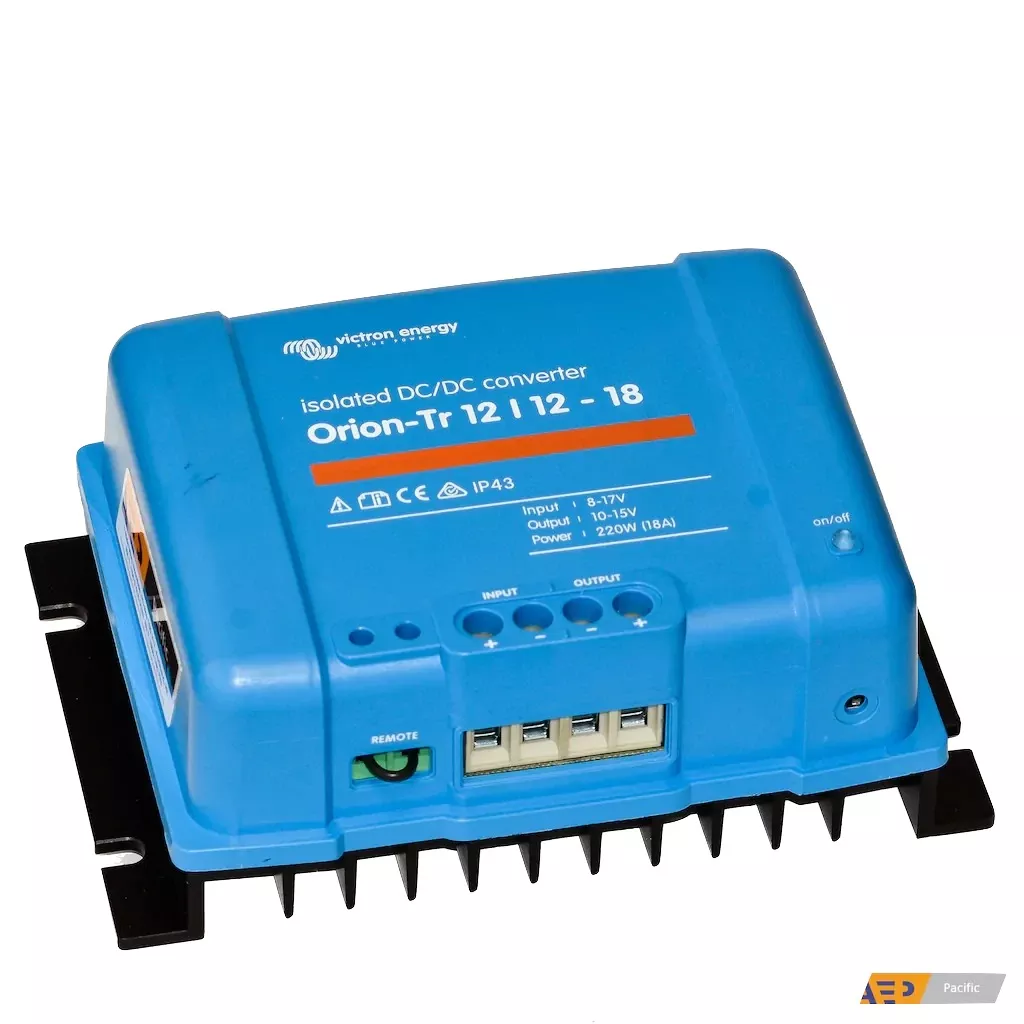

The Victron Energy Orion-TR 12/12-18 DC-DC Converter Isolated (ORI121222110) from Nomadic Supply Company® is a reliable solution for power management and connectivity in RV, marine, and off-grid applications.
is an isolated DC-DC converter intended for power conditioning; it gives a constant output, isolating the loads from power fluctuations.
The Victron Energy Orion-TR 12|12-18 DC-DC Converter Isolated (ORI121222110) can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.
Victron Energy Orion-TR 12|12-18 DC-DC Converter Isolated (ORI121222110) is suitable for high temperatures up to 55°C with a full rated output up to 40°C.
Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
P43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse
On 12V and 24V input models only.
Models
12 / 24 / 48 Volt
Victron Energy Orion-TR 12/12-18 DC-DC Converter Isolated (ORI121222110) Features:
- Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch.
- Adjustable output voltage: can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
- All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel.
- High temperature protected The output current will reduce at high ambient temperature.
- IP43 protection When installed with the screw terminals oriented downwards.
- Screw terminals No special tools needed for installation.
- Input fuse (not replaceable) On 12V and 24V input models only
Victron Energy Orion-TR 12/12-18 DC-DC Converter Isolated (ORI121222110) Documents:
Victron Energy Orion-TR 12|12-18 DC-DC Converter Isolated (ORI121222110) Warranty Info
Victron Energy Orion-TR 12|12-18 DC-DC Converter Isolated (ORI121222110) Brochure
Victron Energy Orion-TR 12/12-18 DC-DC Converter Isolated (ORI121222110) Warranty Card
