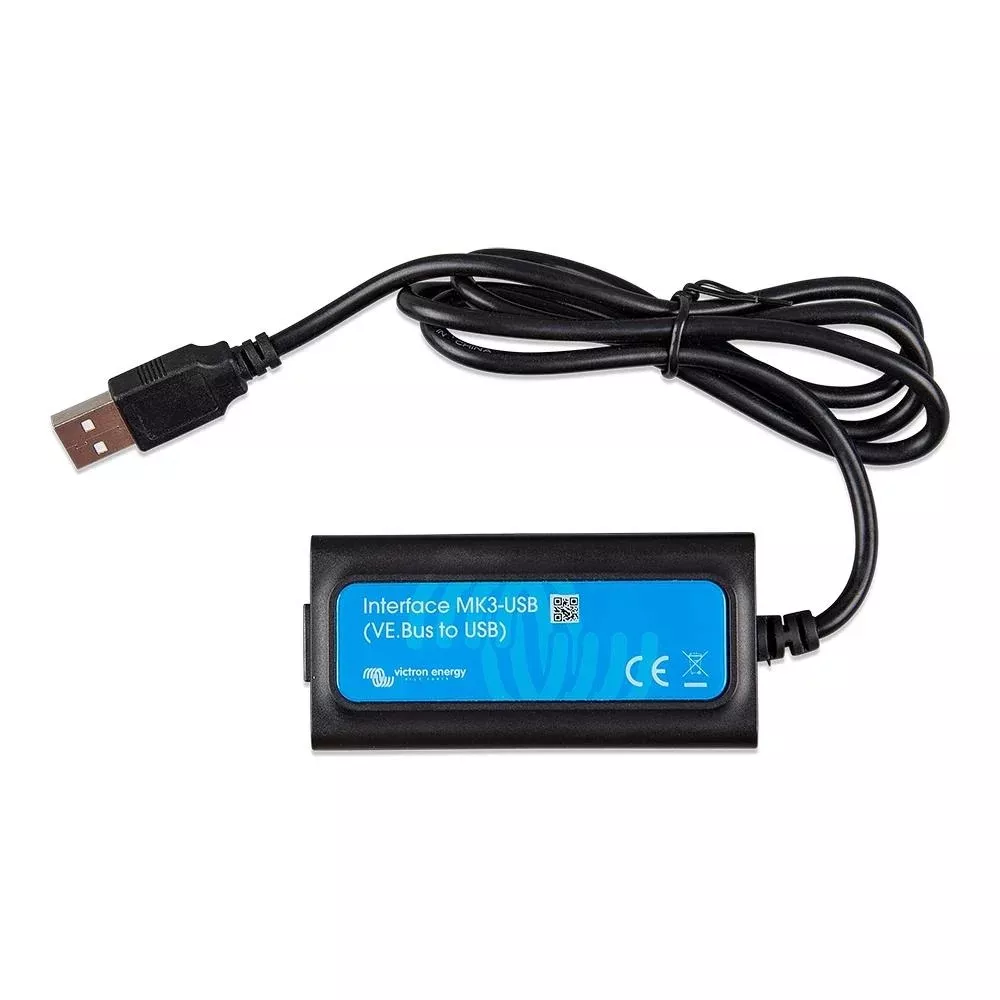

The Victron Energy Interface MK3-USB VE. BUS to USB (ASS030140000) from Nomadic Supply Company® connects Victron’s VE Bus port to a USB connection that you can plug into your PC. Every MultiPlus and Quattro is ready to communicate with a computer through its RS-485 data port.
All you need to link to your PC and be able to set and read out all parameters is the Victron Energy Interface MK3-USB VE. BUS to USB (ASS030140000) as shown plus an ethernet cable or Victron UTP cable (not included). Moreover, all Victron Energy products equipped with an RS-485 data port can easily be integrated into a computerized monitoring and control system, such as VE.Net from Victron Energy.
VE-Configure software is required. The software can be downloaded for free from the Victron website. The software can be run in demo mode without having this or any external device present. For most purposes the Mk3 version will be no different than the previous Mk2 version, it was just redesigned to allow it to communicate with a wider range of devices.
The Victron Energy Interface MK3-USB VE. BUS to USB (ASS030140000) allows the following products to connect to a computer for configuration and firmware updates:
- Victron Multi,
- Victron MultiGrid,
- Victron MultiPlus,
- Victron MultiPlus-II,
- Victron Quattro,
- Victron Inverter/Charger settings in ECOmulti,
- Victron EasySolar,
- Victron EasyPlus,
- Victron Inverters with a VE.Bus communication port.
Use the Victron Energy Interface MK3-USB VE. BUS to USB (ASS030140000) to connect the following products to a computer for configuration:
- Multi
- MultiGrid
- MultiPlus
- Quattro
- Inverter (only models with a VE.Bus communication port)
- ECOmulti
- EasySolar
- EasyPlus
Victron Energy Interface MK3-USB VE. BUS to USB (ASS030140000) Features:
- VE.Bus to USB Communication. Converts VE.Bus protocol to USB for connecting Victron MultiPlus, Quattro, and other VE.Bus devices to a computer.
- VEConfigure and VEFlash Compatible. Required interface for advanced device configuration, firmware updates, and assistant programming via Victron software.
- Plug-and-Play USB. Standard USB connection works with Windows and other operating systems without additional driver installation.
- Bidirectional Communication. Supports both reading device data and writing configuration changes to connected VE.Bus equipment.
- Essential Service Tool. Required for initial commissioning, advanced setup, and firmware maintenance of Victron VE.Bus inverter/charger systems.
Victron Energy Interface MK3-USB VE. BUS to USB (ASS030140000) Documents:
Victron Energy Interface MK3-USB VE. BUS to USB (ASS030140000) Configuration Guide
Victron Energy Interface MK3-USB VE. BUS to USB (ASS030140000) Configuration Guide
