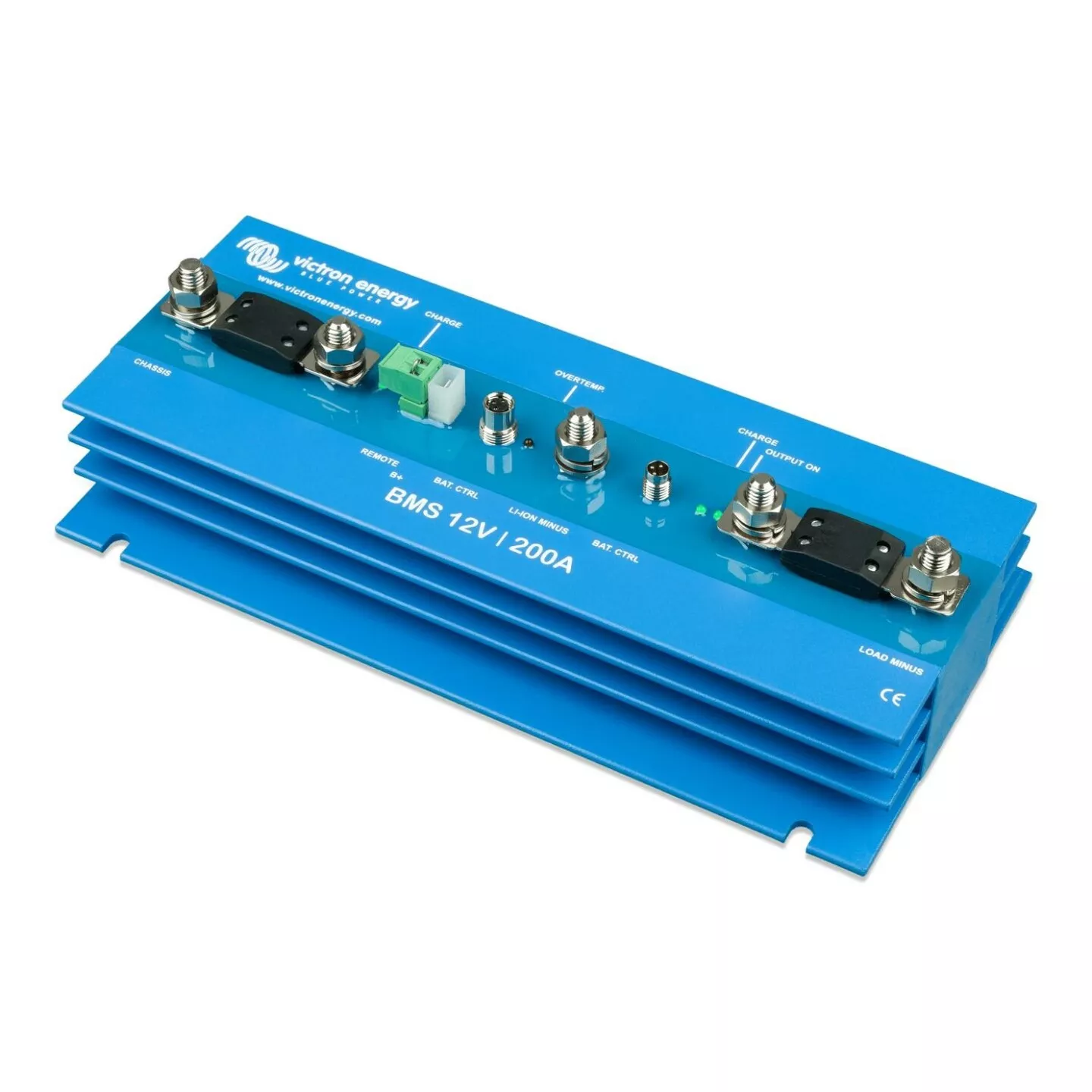

The Victron Energy Battery Management System BMS 12/200 (BMS012201000) from Nomadic Supply Company® is an all-in-one Battery Management system for Victron Lithium-Iron-Phosphate (LiFePO4) Smart Batteries. It has been specifically designed for 12V systems with a 12V alternator such as in vehicles and boats.
It combines a Current Limiter, Battery Combiner and Battery Protector in a robust and compact solution and lets you safely connect any size 12V alternator (and starter battery), loads and chargers to Smart Lithium batteries.
The Victron Energy Battery Management System BMS 12/200 (BMS012201000) monitors and protects each individual battery cell within the battery (or battery bank) and will disconnect the alternator, charge sources or DC loads in case of low battery cell voltage, high battery cell voltage or over temperature.
The dedicated alternator connection provides current limiting and one-way traffic from the alternator into the battery, this so any size alternator (and starter battery) can be safely connected to the Smart Lithium battery (or battery bank) and the starter battery is protected from excessive discharge.
The BMS is equipped with Bluetooth for monitoring and configuration, a remote on/off connector, to turn the BMS (and the system) off via a remote switch and a pre-alarm contact, to give a warning signal before the BMS will disconnect the batteries from the system.
The Victron Energy Battery Management System BMS 12/200 lets you safely connect any size 12V alternator (and start battery) to Victron LiFePO4 Smart Batteries. This all-in-one Battery Management System, Current Limiter, Battery Combiner and Battery Protector is a robust and compact solution, specifically designed for 12V systems with 12V alternators, such as camper vans and boats.
The Victron Energy Battery Management System BMS 12/200 monitors and protects each individual battery cell within the battery (or battery bank) and will disconnect the alternator, charge sources or DC loads in case of low battery voltage, high battery voltage or over temperature.
The dedicated alternator connection provides current limiting and one-way traffic from the alternator into the battery, this so any size alternator (and start battery) can be safely connected to the Smart Lithium battery or batteries and the starter battery is protected from excessive discharge.
The dedicated load connection will disconnect loads and charge in case of low battery voltage, high battery voltage or over temperature.
The Victron Energy Battery Management System BMS 12/200 is also equipped with a remote on/off connector, to turn the BMS (and the system) off via a remote switch.
Victron Energy Battery Management System BMS 12/200 (BMS012201000) Features:
- With integrated cell balancing
- For use without battery management system: CB series
- For use with battery management system: BMS series
- The BMS batteries can be parallel and series connected
Victron Energy Battery Management System BMS 12/200 (BMS012201000) Documents:
BMS Overview
Victron Energy Battery Management System BMS 12/200 (BMS012201000) Owner’s Manual
Victron Energy Battery Management System BMS 12/200 (BMS012201000) Specifications Sheet
