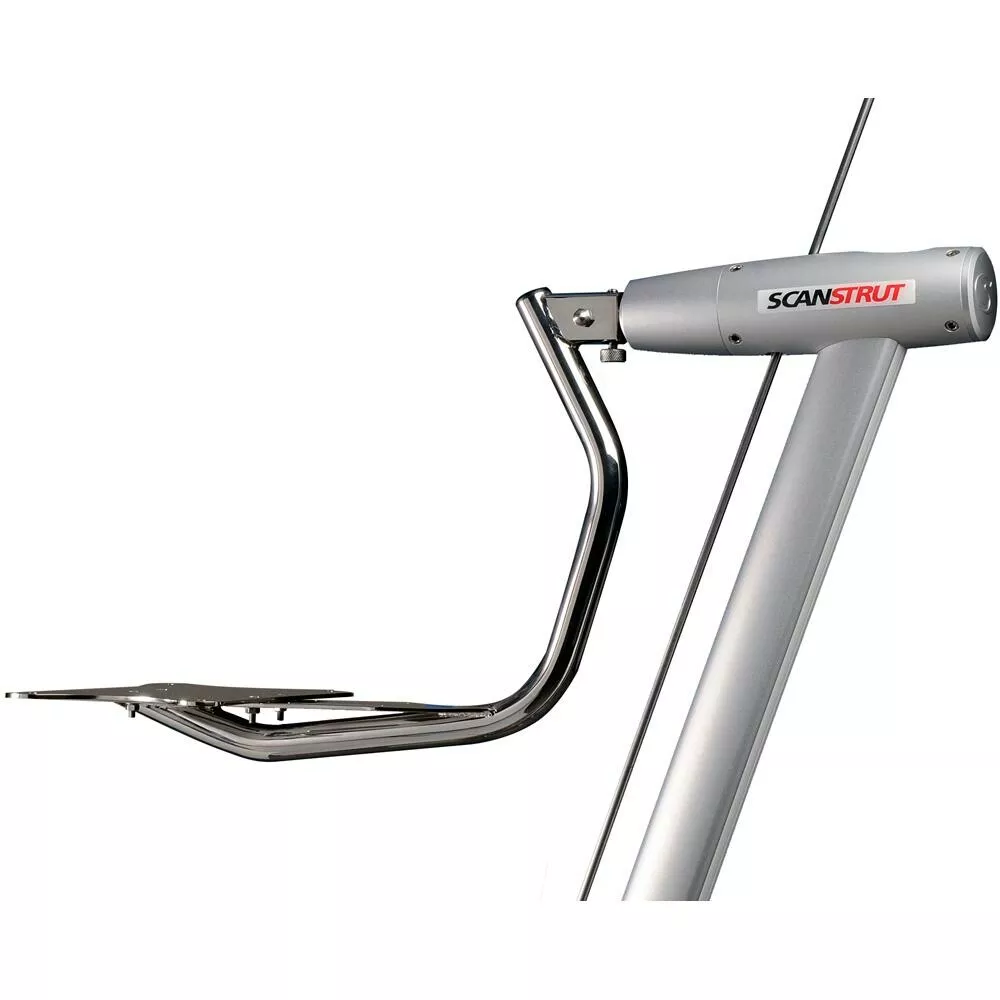

The Scanstrut Self Leveling Radar Device Mount Backstay (A) for Raymarine/Garmin Domes (LMB-A1) from Nomadic Supply Company® ensures your radar stays level with the horizon at all times for optimum antenna performance. Made specifically for Raymarine/Garmin Domes, the self-levelling backstay mount keeps the radar horizontal as the boat heels or rolls, preventing target loss and giving the best possible radar picture.
Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.
Scanstrut Self Leveling Radar Device Mount Backstay (A) for Raymarine/Garmin Domes (LMB-A1) Features:
- Hydraulic damping to eliminate minor oscillations
- Sealed system – entirely maintenance free
- Passive system – no power required
- Lightweight head unit – reduced weight aloft
- Stainless radome cradle with fine tune adjustment for backstay angle – suitable for any yacht
- Nylon backstay bushing supplied – clamps around backstay allowing cable tension to be adjusted
Scanstrut Self Leveling Radar Device Mount Backstay (A) for Raymarine/Garmin Domes (LMB-A1) Specifications:
- 2.6m pole – supplied in lengths of 1.3m
- Additional 0.6m and 1.3m lengths available
- Finest quality machined and anodised aluminum pole and head unit – lasts the lifetime of your yacht
- Marine grade 316 stainless steel cradle and base plate
Scanstrut Self Leveling Radar Device Mount Backstay (A) for Raymarine/Garmin Domes (LMB-A1) Includes:
- 1 x Levelling mount with integral backstay bushes (to fit 7, 8, 10 and 12mm diameter backstay cables)
- 2 x 1.3m lengths of mounting pole
- 1 x Joiner piece for mounting pole
- 1 x Universal base for mounting pole
- 1 x Complete fastening pack
Scanstrut Self Leveling Radar Device Mount Backstay (A) for Raymarine/Garmin Domes (LMB-A1) Documents:
Scanstrut LMB-A1 Self Leveling Radar Device Mount Backstay (A) for Raymarine/Garmin Domes Installation Guide
