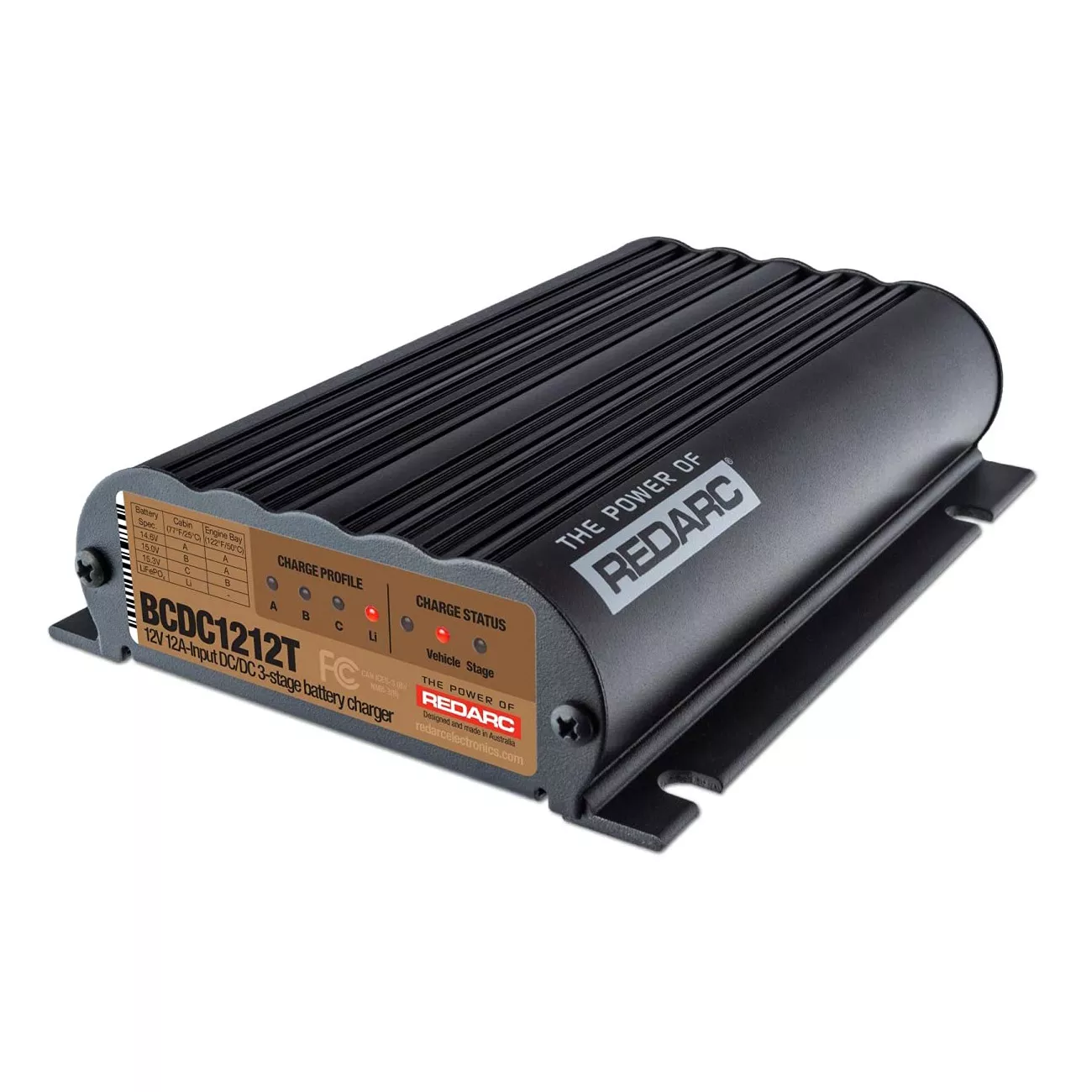

The REDARC BCDC1212T 12A Vehicle DC Battery Charger from Nomadic Supply Company® is designed to charge your auxiliary battery to 100% state of charge while on the move via your alternator. Connecting directly to the trailer plug, the REDARC BCDC1212T 12A Vehicle DC Battery Charger provides 3-stage battery charging for optimum battery charge, protecting the truck’s start battery from discharge while charging the auxiliary battery responsible for operating winches, hydraulic pumps, dump trailers, liftgates and boat trailers.
This dump trailer charger is compatible with all battery makes and chemistries, including Standard Lead-Acid, Calcium, Gel, AGM and Lithium LiFeP04.
It operates in a 12- or 24-volt vehicle and is 12A input current limited to charge your secondary battery banks to 100% state of charge while on the move.*
*large capacity battery banks may require a few cycles to fully charge.
Proven to operate under extreme heat of up to 176°F, our REDARC BCDC1212T 12A Vehicle DC Battery Charger is sealed to eliminate the risk of dust or water ingress, and is made in Australia by Australia’s leading battery charging and overlanding accessories company.
The REDARC BCDC1212T 12A Vehicle DC Battery Charger is heat, water, dust and vibration proof.
The REDARC BCDC1212T 12A Vehicle DC Battery Charger ensures little to no mains charging is required for your trailer battery, meaning you can charge the trailer battery while you drive and reduce the need to plug into the socket to top-up battery charge.
The REDARC BCDC1212T 12A Vehicle DC Battery Charger comes pre-wired with wiring harness allowing easy installation into any typical trailer battery setup, or other trailers where the secondary battery’s charging current is drawn from the 12V Auxiliary Power available on a pre-installed, suitably rated, trailer plug and towing harness.
Easily installed in the trailer’s nose cone
The BCDC Trailer ensures little to no mains charging is required for your trailer battery, meaning you can charge the trailer battery while you drive and reduce the need to plug into the socket to top-up battery charge.
The BCDC Trailer comes pre-wired with wiring harness allowing easy installation into any typical trailer battery setup, or other trailers where the secondary battery’s charging current is drawn from the 12V Auxiliary Power available on a pre-installed, suitably rated, trailer plug and towing harness.
Australian made and proven
Proven to operate under extreme heat of up to 176°F, this trailer battery charger is sealed to eliminate the risk of dust or water ingress, and is made in Australia by Australia’s leading battery charging and overlanding accessories company.
This is an Official Nomadic Supply Company® Product that we use to build our Mercedes Sprinter camper vans.
REDARC BCDC1212T 12A Vehicle DC Battery Charger Specifications:
| Warranty | 2 Years |
|---|---|
| gtin_barcode | 9338628006434 |
| brand | REDARC |
| Battery Chemistry | Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only |
| Continuous Rating | 12A |
| Power Type – AC DC | DC TO DC |
| Nominal Output Power | 147W (12V vehicle) / 294W (24V vehicle) |
| Input Fuse Rating | 15A to 23A (Not supplied) |
| Suitable For 12V Systems | Yes |
| Suitable For 24V Systems | Yes |
| MPPT Solar Regulator | No |
| Cabin/ Canopy Install | Yes |
| No Load Current | <100mA |
| Trailer Install | Yes |
| Engine Bay Install | No |
| Max. Charging Voltage | 15.3V |
| Output Fuse Rating | 30A (Not supplied) |
| Operating Temperature | 5°F to 176°F |
| Output Voltage | 12V DC |
| Max. Rated Output Current | 11A (12V vehicle) / 20A (24V vehicle) |
| Input Voltage | 9 – 32V |
| Standby Current | <8mA |
| Connector Type | Bare wire |
| Weight | 30 oz (850 g) |
| width | 4.7″ (120 mm) |
| height | 1.5″ (37 mm) |
| depth | length | 6.5″ (165 mm) |
