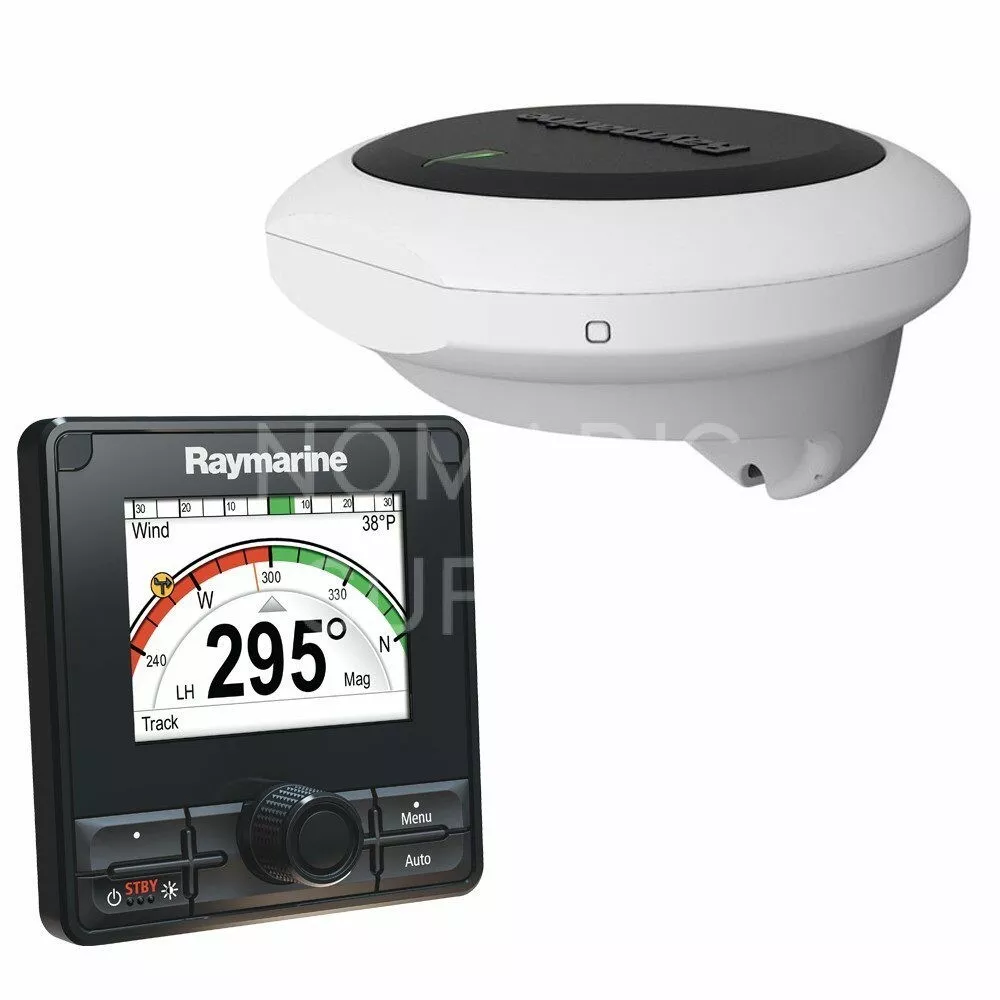

The Raymarine EV-DBW Evolution Autopilot for Drive-by-Wire System (T70164) from Nomadic Supply Company® is a Sail evolution system package consisting of p70R autopilot control head, EV-1 sensor core and ACU actuator control unit. The p70R control heads feature vibrant color displays and are powered by Raymarine’s intuitive LightHouse user interface. LightHouse organizes all options into simple menu structures and with Evolution’s quick setup process you will be up and running in minutes. Designed for sailing yachts, the p70 offers simple 1 and 10 degree direct course change push buttons.
The EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards. The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk bus.
Overview of What’s in the Box:
Raymarine EV-DBW Evolution Autopilot for Drive-by-Wire System (T70164) Features:
- Raymarine P70R control
- Raymarine EV-2 Sensor Core
- Raymarine Evolution Cabling Kit
- Raymarine Evolution EV-2 Cable Kit
Raymarine EV-DBW Evolution Autopilot for Drive-by-Wire System (T70164) Includes:
EV-2 for Drive-by-Wire Propulsion
EV-2 is designed for the latest drive-by-wire steering systems
EV-2 connects directly to Raymarine’s SeaTalk bus
It also has a dedicated CAN Bus port for direct connection to steer-by-wire steering systems:
- ZF Pod Drives
- Volvo† IPS* and Volvo Aquamatic
- Teleflex Optimus Systems
- Yanmar VC10 and JC10 (Joystick) Control Systems
A single CAN Bus connection to the EV-2 eliminates the need for an ACU, further simplifying installation
*Optional Volvo IPS gateway required and additional cabling
† Volvo and Volvo Penta are trademarks and/or registered trademarks of Volvo Trademark Holding AB. Raymarine is not affiliated with, or endorsed by, Volvo.
p70Rs Autopilot Control Head (Power)
The p70Rs autopilot control head is designed for power craft with push buttons and a rotary control dial. Advanced LED backlighting offers low power consumption and delivers vibrant color and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.
The p70Rs control head also features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.
Evolution Cabling Kit – R70160
The Evolution SeaTalk cable kit contains:
- 1 x SeaTalk Power Cable (0.4m)
- 1 x SeaTalk Backbone Cable (5m)
- 1 x SeaTalk Spur Cable (0.4m)
- 1 x SeaTalk 5-way Connector Block
- 2 x SeaTalk T-piece Connector
- 2 x SeaTalk Terminator
Evolution EV-2 Cabling Kit – R70192
The Evolution EV-2 SeaTalk cable kit contains:
- 1 x SeaTalk Power Cable (0.4m)
- 2 x DeviceNet / SeaTalkng Adaptor Cable (Female)
- 2 x SeaTalk Terminator
