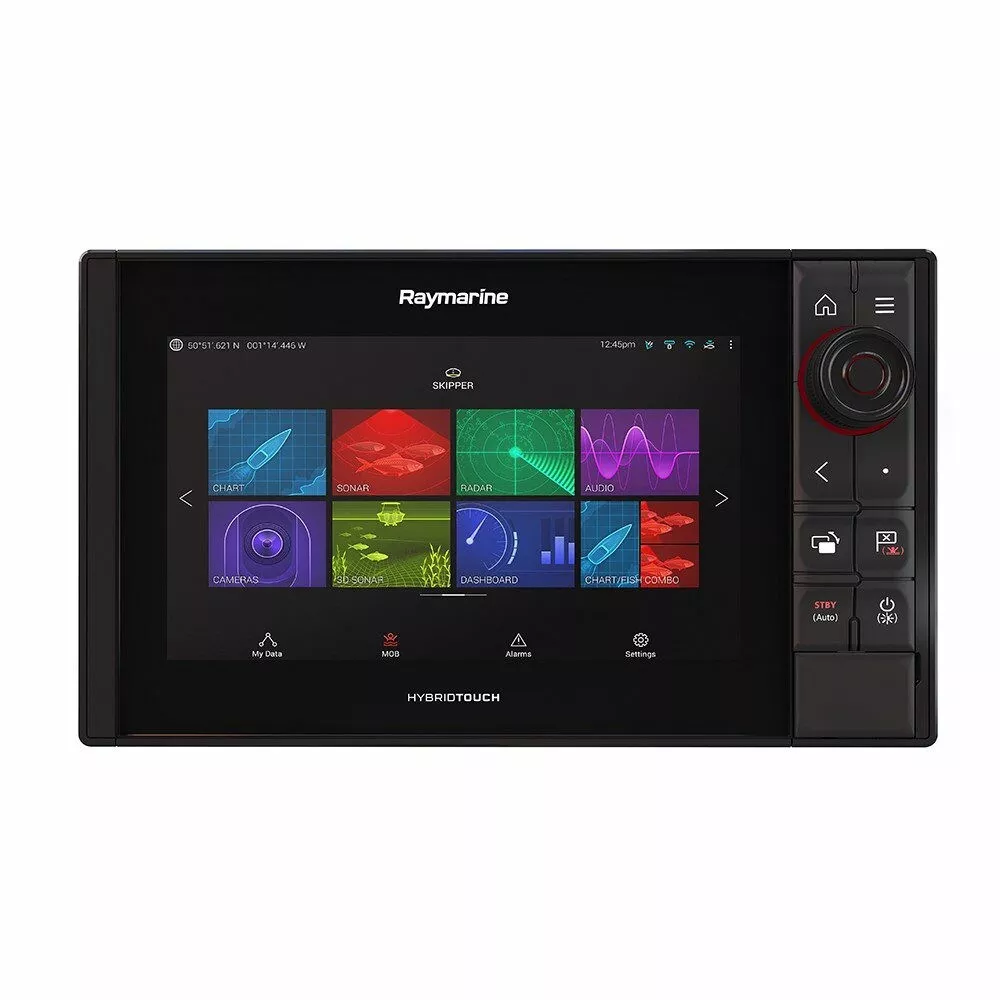

The Raymarine Axiom Pro 9 S MFD w/Single Channel High CHIRP Sonar Navionics+ Chart (E70481-00-NAG) from Nomadic Supply Company® is a professional 9″ all-in-one chartplotter and fishfinder featuring single-channel high CHIRP sonar, HybridTouch control, quad-core processor, optically bonded IPS display, and Navionics+ North America chart.
Raymarine Axiom Pro 9 S MFD w/Single Channel High CHIRP Sonar Navionics+ Chart Features:
- Blazing Fast Quad-Core Processor. Delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.
- Bold and Bright IPS Display. Optical bonding technology and IPS panels give stunning color, clarity, and contrast in all lighting conditions, including through polarized sunglasses.
- HybridTouch Control. Operates via multi-touch screen, physical buttons and rotary knob, or any combination of both.
- Custom Key. User-programmable key provides instant access to favorite functions at any time.
- LightHouse 3 OS. Fast, fluid, and easy-to-learn interface that is uncluttered and easy to personalize for your style of boating.
Raymarine Axiom Pro 9 S MFD w/Single Channel High CHIRP Sonar Navionics+ Chart Specifications:
- Screen Size: 9″
- Display Resolution: 1280 x 720
- Screen Type: Super bright IPS display with optical bonding. Multitouch support
- Mounting Options: Front and trunnion mount Front
- Waterproofing: IPX6 / IPX7
- Memory: 16GB Internal / x2 microSDXC slots
- USB: 1 x USB microAB (rear – charging, external storage device or RCR-SD/USB Accessory (A80440)
- Voltage: 12 / 24 V dc
- Weight: 3.35lbs / 1.52kg
- Operating Temperature: -25ºC to +55ºC (13ºF to 131ºF)
- Wi-Fi
- Ethernet: 2 x 10/100 Mbits/ Network (RayNet)
- NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable)
- NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
- Radar Compatible
- Thermal Night Vision Compatible
- Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras
- Built-in Sonar: High CHIRP Sonar Built-in – S models only
- External Sonar Compatible
- GPS: Built-in GNSS Receiver: GPS/GLONASS/Beidou – 10Hz 167 Channel | External Accessory: GA150 (A80288)
- Optional Remote Controls
- AIS
- Audio Integration
- Autopilot Control: Evolution Autopilot Control
- Digital Switching: Empirbus compatible
- Dimensions (w x h x d): 11.9″ x 6.85″ x 2.56″ / 300 x 174 x 65 mm
The Axiom Pro 9 S includes surface and trunnion mounting kits and hardware, suncover, power/video/NMEA0183 cable, micro-C DeviceNet (F) to STNG (F) 1M cable, Raynet (F) to Raynet (F) 2M cable and installation instructions and Navionics+ Chart
Raymarine Axiom Pro 9 S MFD w/Single Channel High CHIRP Sonar Navionics+ Chart Documents:
Raymarine Axiom Pro 9 S MFD w/Single Channel High CHIRP Sonar Navionics+ Chart Brochure
Raymarine Axiom Pro 9 S MFD w/Single Channel High CHIRP Sonar Navionics+ Chart Installation Guide
