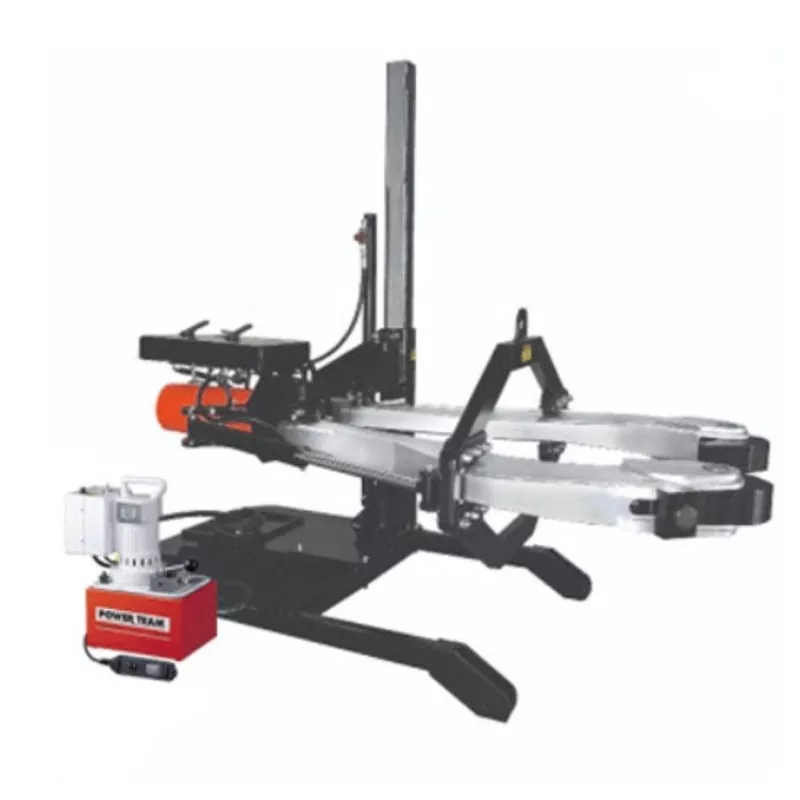

Posi Lock PTPH-102T Portable 100-Ton Two Jaw Hydraulic Puller
Posi Locks 100-Ton hydraulic puller systems provide maximum pulling force in applications requiring high-force removal of large gears, pulleys, wheels, sleeves and other pressfit parts. 100 Ton pullers are available in 3-jaw, 2-jaw, vertical 2-jaw or 2/3-jaw combination systems. For applications requiring high-force removal of press-fit parts, there is no safer, more efficient solution than Posi Lock.
Features and Benefits:
10,000 PSI electric two-stage pump
Remote jog switch with 10-foot cord (3.05 m)
100-ton cylinder, 10,000 PSI with spring return (10.25 inch stroke)
Hydraulic-actuated lift cart extends puller from ground to a height of 5 feet (1.52 m)
Jaws are hydraulically controlled with cylinders
Multiple pushing adaptors
(1) 3.5-in. diameter x 9-in. (89 x 229 mm)
(1) 3.5-in. diameter x 19-in. (89 x 483 mm)
(1) 3.5-in. diameter x 29-in. (89 x 737 mm)
(1) Coupler
Removable transport cart
Puller can be used in horizontal and/or suspended vertical positions
Adjustable jaw tips
Adjustable jaw guides
Specifications:
- ModelPH-102T
- Jaws:2
- Capacity:100 ton (980 kN)
- Spread:7.5 to 70 in (191 to 1778 mm)
- Overall Length:77 in (1956 mm)
- Reach:50 in. (1270 mm)
- Jaw Length:53 in. (1346 mm)
- Jaw Tip Width:1.25 in. (32 mm)
- Tip Clearance:3.5 in. (89 mm)
- Tip Depth:3.5 in. (89 mm)
- Weight:1700 lbs (771 kg)
Options:
Specialized jaw tips
Double acting cylinder
The PH-102T and PH-102TV hydraulic pullers are designed for big pulling jobs with limited jaw placement options.
