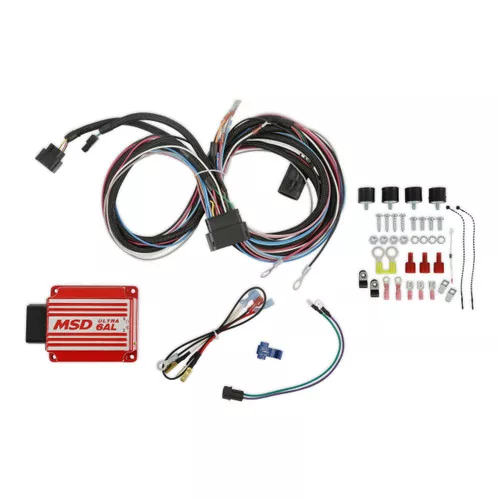

The new ground-breaking Ultra 6AL delivers full MSD power in a compact, feature dense, and lighter package!
The Ultra 6AL greatly expands on the capabilities of the 6-series line with three rev limiters (Launch, Burnout, and Step Retard activation) and is wirelessly controlled from a smart phone via the “MSD Ultra 6AL” app. A Programmable Step Retard (up to 30 degrees) is available for: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation. High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation. Mobile app available settings include Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value.
The Ultra 6AL greatly expands on the capabilities of the 6-series line and is wirelessly controlled from a smart phone via the “MSD Ultra 6AL” app
Built-in tri-step RPM rev limit capability – Launch, Burnout, and Step Retard activation
Mobile app available settings: Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value
Programmable Step Retard (up to 30 degrees): On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation
Programmable Start Retard: 0, 10, 20 degrees
Alerts and monitors available
High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation
High conversion efficiency ensures minimal heat generation and maximum spark energy output with less current draw from the battery – (Highly efficient Ignition, minimum heat and max spark energy with less current draw)
High RPM operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253
Powerful capacitive discharge of multiple sparks improves performance – quickens throttle response & improves starting
Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline RPM
Increase spark series duration lasts for 18 of crankshaft rotation
Operates on most 7 to 28 volt electrical systems
Connects to points, magnetic pickups, and Hall/Crank Input distributors on 4,6, and 8-cylinder engines
MSD CAN communication for easy connectivity to MSDView using a CAN MSD Hub and Power Grid USB or CAN-USB Bridge 89982 product
Fully protected against an open coil, shorted coil & open load
Tach Output
