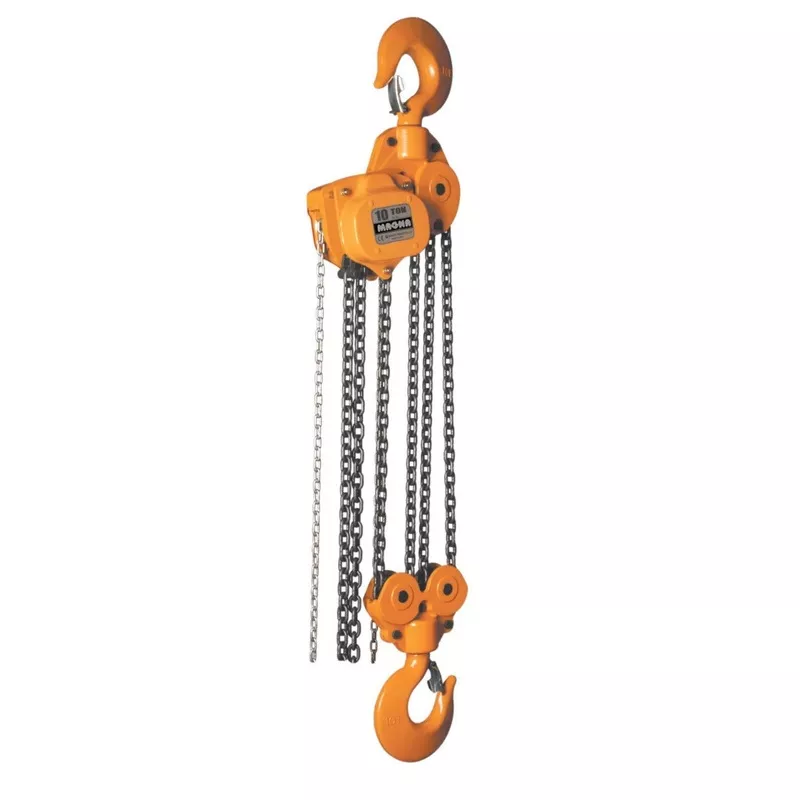

MAGNA 10 Ton Chain Hoist, 10 ft. Lift CH100010
For lifts that demand double-digit tonnage, the MAGNA CH100010 provides a staggering 10 Ton (22,000 lbs) capacity. Designed for specialized applications in shipyards, steel mills, and heavy construction, this hoist utilizes a robust 4-fall configuration of Grade 100 chain to lift immense loads with a standard 10-foot reach. Its heavy-duty hooks feature wide throat openings to accommodate large rigging hardware and slings.
The CH100010 is built to last, featuring a stamped steel body that protects the precision-machined gear train. The low-temperature grease ensures that even in unheated facilities or outdoor winter projects, the hoist operates smoothly without binding. With a hand pull effort of just 90 lbs to lift 10 tons, it maximizes mechanical advantage to reduce operator strain during critical lifting procedures.
Features & Benefits
- Massive Power: 22,000 lb capacity for heavy industrial and infrastructure projects.
- Grade 100 Chain: High-tensile alloy chain ensures safety under extreme loads.
- Robust Build: Stamped steel casing offers superior protection and repairability.
- Mechanical Advantage: Efficient gearing requires only 90 lbs of pull for full load.
- Weather Resistant: -49F rated grease allows for all-season operation.
- Safety Assured: Load tested to 150% capacity (33,000 lbs) per ANSI standards.
Compatible Accessories: Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR1000 (10 Ton Plain Trolley), GTR1000 (10 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamps), ULBC1000F/S (10 Ton Universal Beam Clamps)
Specifications
- Model Number: CH100010
- Working Load Limit (WLL): 10 Ton (22,000 lbs)
- Standard Lift: 10 ft.
- Load Chain Dimensions: 9.0 x 27.0 mm
- Load Chain Grade: Grade 100
- Number of Falls: 4
- Pull to Lift Full Load: 90 lbs
- Headroom (Dimension C): 29.92 in.
- Hook Throat Opening (Dimension G): 2.36 in.
- Net Weight: 152.0 lbs
