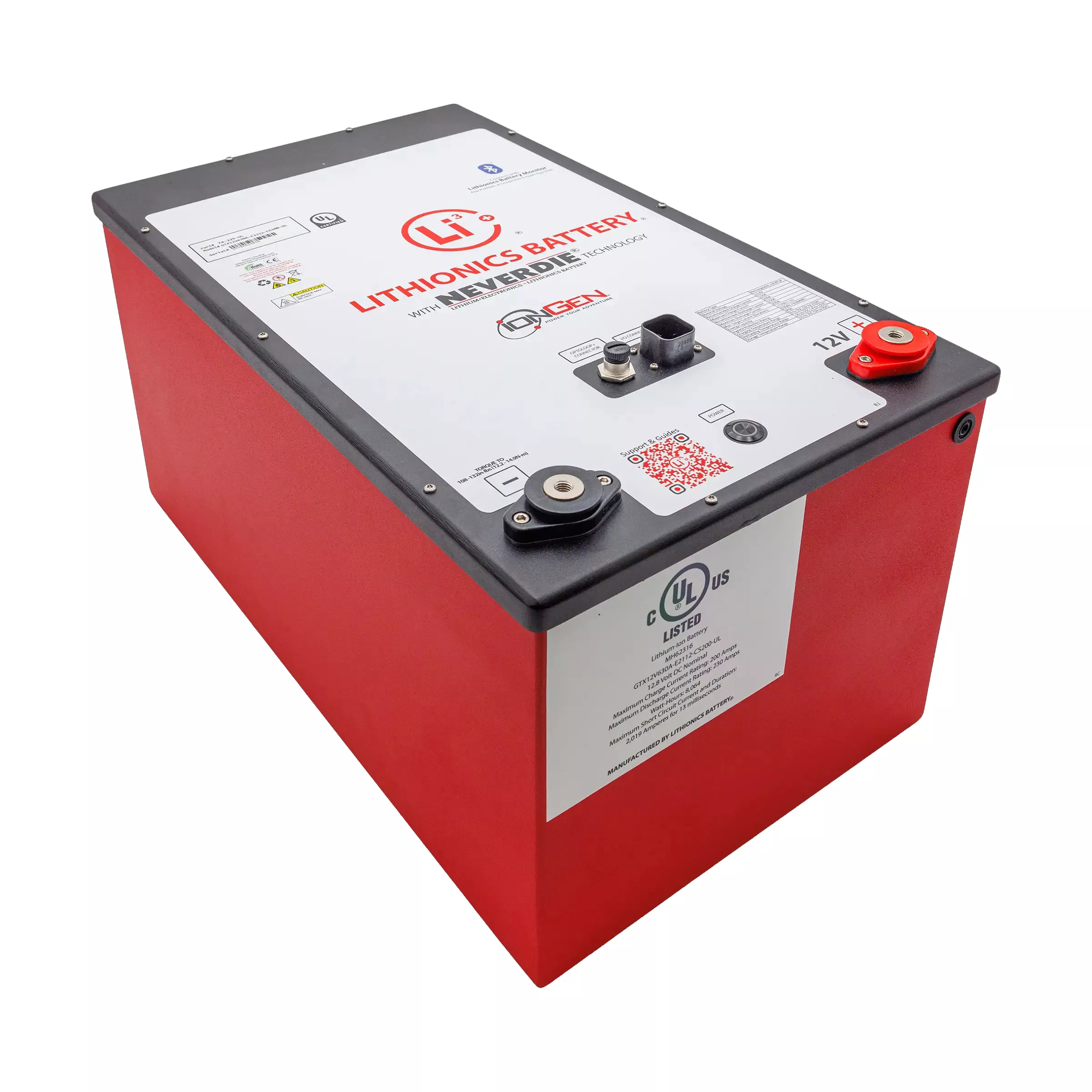

Lithionics 12V 630AH E2112 GTX Battery w/ Built-in Heater (GTX12V630A-E2112-CS200-UL) from Nomadic Supply Company® is the latest from Lithionics, with a Built-in BMS, heater, Bluetooth, smaller than 3 group 31 100 amp hour batteries, and is UL certified for vehicles. Consumer Model: Requires a Fuse and Fuse Holder.
Lithionics 12V 630AH E2112 GTX Battery w/ Built-in Heater Energy:
- 630 AMP HOURS
- PULSE AMPS: 1200 (1 second)
- 8064 WATT-HOURS
Lithionics 12V 630AH Self-Heating LifeP04 Lithium Battery (GTX12V630A-E2112-CS200-UL) Features:
- NeverDie® Power Reserve (Spare Fuel) for Hotel Loads and Engine Cranking
- Over-Charge, Over-Discharge and Short-Circuit Protection (LVC, HVC, SCC)
- Low/High-Temperature Charge/Discharge Protection
- Internal Heating Kit: Permits Charging as low as -20C/-4F
- Pushbutton On/Off switch for Safety and Storage
- Battery Gauge and Status Codes for Health Monitoring
- Bluetooth wireless telemetry with Lithionics Battery iOS and Android app
- CANbus telemetry in the RVIA RV-C format (M12)
- An alternator Field Control Circuit (FCC) (AMPSEAL8)
- Remote LED illuminated On/Off Power switch (AMPSEAL8)
Lithionics 12V 630AH Self-Heating LifeP04 Lithium Battery (GTX12V630A-E2112-CS200-UL) Specifications:
- Model: GTX12V630A-E2112-CS200
- Nominal Voltage: 12.8 Volts
- Nominal Capacity: 630 AH
- Nominal Watt Hours: 8064 WH
- Internal Resistance: <3 milliohms
Lithionics 12V 630AH E2112 GTX Battery w/ Built-in Heater (GTX12V630A-E2112-CS200) Charge
- Charging temperature range: 32F/0C to 131F/55C
- Charge voltage: 14.4V recommended
- Recommended float charge voltage: 13.4V – 13.6V
- Recommended charge current: 150A
- Allowed max charge current: 200A
Lithionics 12V 630AH E2112 GTX Battery w/ Built-in Heater (GTX12V630A-E2112-CS200) Discharge
- Discharging temperature range: -4F/-20C to 131F/55C
- Output Voltage Range: 10.4V to 13.4V
- Recommended discharge current: 150A
- Max discharge current: 230A
- Pulse discharge current: 1200A (1 SEC)
- Discharge cut-off voltage: NeverDie® Power Reserve @ 12.00V Low-Voltage Cut-Off @10.4V
Lithionics 12V 630AH E2112 GTX Battery w/ Built-in Heater (GTX12V630A-E2112-CS200) Mechanical characteristics
- Length: 20.4in
- Width: 12.0in
- Height: 10.7n
Lithionics 12V 630AH E2112 GTX Battery w/ Built-in Heater (GTX12V630A-E2112-CS200) Storage
Storage Temperature and Humidity Range: 1 Month
-4~95°F (-20~35°C), 45~75RH
3 Months
14~86°F (-10~30°C), 45~75RH
Recommended storage:
59~95°F (15~35°C)，45RH~75％RH
Self-discharge rate:
Residual capacity
≤3 per month; ≤15 per year
Reversible capacity
≤1.5per month; ≤8 per year
Long Term Storage:
If the battery needs to be stored for> 3 months the voltage should be 13.2V (50SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge and discharge cycle every six months.
Lithionics 12V 630AH Self-Heating LifeP04 Lithium Battery (GTX12V630A-E2112-CS200-UL) Documents:
Lithionics 12V 630AH E2112 GTX Battery w/ Built-in Heater Owner’s Manual
Lithionics 12V 630AH E2112 GTX Battery w/ Built-in Heater Data Sheet
Application Note: Compatible with a Maximum Inverter Size of 3000 Watts. Do Not Connect to Larger Inverters or to Parallel-Connected Inverters.
External BMS-module kit recommended for Marine use.
