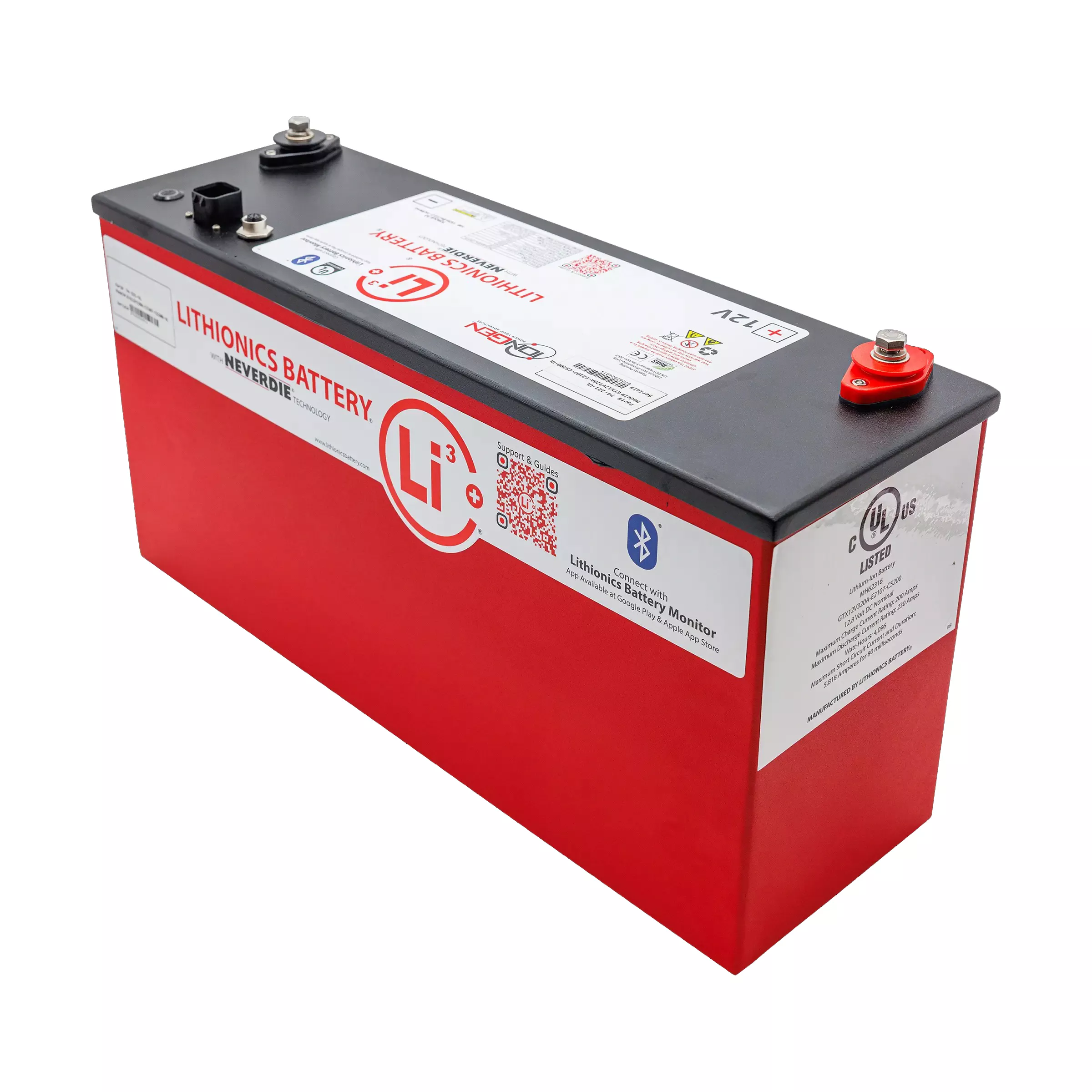

Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater (GTX12V320A-E2107-CS200) from Nomadic Supply Company® is the latest from Lithionics, with a Built-in BMS, heater, Bluetooth, and is smaller than 3 group 31 100 amp hour batteries.
UL Model:
The UL Model of this battery is only sold to OEM manufacturer’s/builders, such as Winnebago, who implement full UL compliant Installation. UL requires the Internal BMS Battery to be connected to a DC Breaker System that is controlled by the BMS for redundancy. A total of two batteries can be connected to the single DC Breaker with no need to add another fuse, the DC Breaker is a fuse and a DC Disconnect. In order to maintain the electrical warranty on a Winnebago, the battery purchase and installation needs to be done ONLY at a Winnebago Dealership.
Consumer Model:
The Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater Consumer Model is for aftermarket installations and authorized dealers such as Nomadic Supply Company. The DC Breakers System is an option, but not a requirement for the Consumer Model. What makes the battery attain the highest-level UL Standards 1973 is the battery being a UL Model with the DC Breaker System.
Application Note: Compatible with inverters up to 3000 watts. Do not use with higher wattage invertors or to parallel-connected inverters. You must have at least 2x of these batteries in parallels when used with a Victron Multiplus 12/3000/120 Inverter.
External BMS-module kit recommended for Marine use.
There is an on/off/reset switch on the lid of the battery; if you need to mount the switch on a panel, then you will need 2 parts for each battery:
1) Lithionics Ampseal 8 Wiring Harness Kit (75-H1FBR-CS2)
2) Lithionics Illuminated Battery Switch (75-240-180)
Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater Energy:
320 AMP HOURS
PULSE AMPS: 1200 (1 second)
4096 WATT-HOURS
Lithionics 12V 320AH E2107 GTX Self-Heating LifeP04 Lithium Battery (GTX12V320A-E2107-CS200-UL) Features:
- NeverDie® Power Reserve (Spare Fuel) for Hotel Loads and Engine Cranking
- Over-Charge, Over-Discharge and Short-Circuit Protection (LVC, HVC, SCC)
- Low/High Temperature Charge/Discharge Protection
- Internal Heating Kit: Permits Charging as low as -20C/-4F
- Pushbutton On/Off switch for Safety and Storage
- Battery Gauge and Status Codes for Health Monitoring
- Bluetooth wireless telemetry with Lithionics Battery iOS and Android app
- CANbus telemetry in the RVIA RV-C format (M12)
- An alternator Field Control Circuit (FCC) (AMPSEAL8) Remote LED illuminated On/Off Power switch (AMPSEAL8)
Lithionics 12V 320AH E2107 GTX Self-Heating LifeP04 Lithium Battery (GTX12V320A-E2107-CS200-UL) Specifications:
Model:
GTX12V320A-E2107-CS200
Nominal Voltage:
12.8 Volts
Nominal Capacity:
320 AH
Nominal Watt Hours:
4096 WH
Internal Resistance:
<3 milliohms
Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater (GTX12V320A-E2107-CS200) Charge
Charging temperature range:
32F/0C to 131F/55C
Charge voltage:
14.4V recommended, 14.6V maximum
Recommended float charge voltage:
13.4V – 13.6V
Recommended charge current:
150A
Allowed max charge current:
200A
Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater (GTX12V320A-E2107-CS200) Discharge
Discharging temperature range:
-4F/-20C to 131F/55C
Output Voltage Range:
10.4V to 13.4V
Recommended discharge current:
150A
Max discharge current:
230A
Pulse discharge current:
1200A (1 SEC)
Discharge cut-off voltage:
NeverDie® Power Reserve @ 12.00V Low-Voltage Cut-Off @10.4V
Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater (GTX12V320A-E2107-CS200) Mechanical characteristics
Length:
20.3in
Width:
6.4in
Height:
10.0in
Weight:
Approx. 68lbs (30.8kg)
Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater (GTX12V320A-E2107-CS200) Storage
Storage Temperature and Humidity Range:
<1 Month
-4~95°F (-20~35°C), 45~75RH
<3 Months
14~86°F (-10~30°C), 45~75RH
Recommended storage
59~95°F (15~35°C)，45RH~75％RH
Self-discharge rate:
Residual capacity
≤3 per month; ≤15 per year
Reversible capacity
≤1.5per month; ≤8 per year
Long Term Storage:
If the Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater needs to be stored for> 3 months the voltage should be 13.2V (50SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge and discharge cycle every six months.
Lithionics 12V 320AH E2107 GTX Self-Heating LifeP04 Lithium Battery (GTX12V320A-E2107-CS200-UL) Documents:
Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater User Guide
Lithionics 12V 320AH E2107 GTX Battery w/ Built-in Heater Data Sheet
