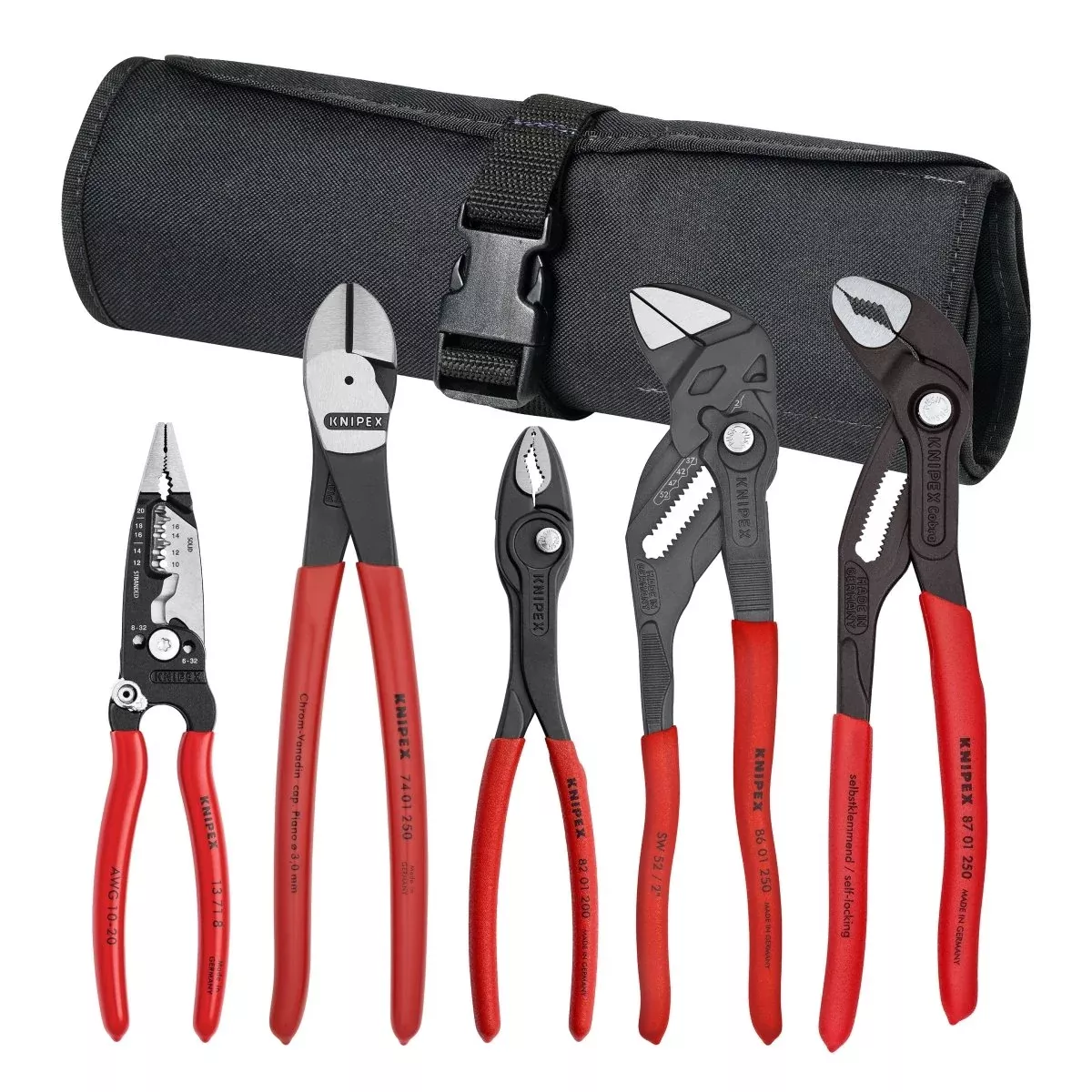

KNIPEX 5 Pc Core Pliers Tool Set is highly regarded for its exceptional quality, reliability, and versatility. Designed with precision and crafted using quality materials, KNIPEX tools deliver outstanding performance across a wide range of applications. Set includes one (1) each of: Forged Wire Stripper, High Leverage Diagonal Cutters, TwinGrip Pliers, Pliers Wrench and Cobra® Water Pump Pliers. 13 71 8 – 8″ Forged Wire Stripper 20-10 AWG. Strips 20 to 10 AWG – both solid and stranded; Cuts 6-32 and 8-32 screws without threading. 74 01 250 – 10″ High Leverage Diagonal Cutters. 20% easier cutting due to high leverage design; Unique heavy-duty forged-on axle for superior strength. 82 01 200 – 8″ TwinGrip Pliers. Easily grip stripped screws and bolts with the front and side gripping areas; Optimized side jaw with opposing teeth for maximum force. 86 01 250 – 10″ Pliers Wrench. Replaces a full set of inch and metric open end wrenches up to 2″ (52 mm); Smooth jaws for damage free installation of plated fittings – working directly on chrome. 87 01 250 – 10″ Cobra® Water Pump Pliers. Push-button adjustment directly on the workpiece – adjust once and it stays set; Self-locking means no slipping off the workpiece. Tool roll up pouch constructed of hard-wearing polyester fabric offers a convenient way to store tools when not in use. Sewn pocket for each tool so tools remain secure and double side release buckle makes it easy to open and close.
- Part Number: 9K 00 80 150 US
- UPC: 843221029173
- Country of Origin: Germany
- Width: 14 3/4″
- Height: 4 1/4″
- Weight: 4.6 lbs.
- 1000 Volt Insulated: No
- ESD Indicator: No
- Spring Loaded: No
- Material Type: Chrome vanadium electric steel, forged, oil-hardened|Chrome vanadium heavy-duty steel, forged, oil-hardened|High-grade chrome vanadium electric steel|High-grade special tool steel, forged, multi stage oil-hardened
- Handle Type: Non-slip plastic|Plastic coating
- Gripping Surface: Serrated|Smooth
- Surface Finish: Polished|Polished jaws
- Other Surface Finish: Black atramentized|Grey atramentized
- Joint Type: Box-joint|Bolted|Forged-in axle
- Cutting Capacity – Piano Wire: 1/8″ (74 01 250)
- Cutting Capacity – Hard Wire (Steel Wire): 9/64″ (74 01 250)
- Cutting Capacity – Medium Hard Wire (Nail): 3/16″ (74 01 250)
- Cutting Edge Shape: Bevel|Shear
- Number of Adjustment Positions: 5 (82 01 200); 19 (86 01 250); 25 (87 01 250)
- Jaw Type: Flat
- Jaw Length: 1 3/8″ (87 01 250)
- Jaw Thickness: 5/16″ (86 01 250)
- Tip Thickness: 5/16″ (86 01 250)
- Max Jaw Opening – Round Pipe: 7/8″ (82 01 200); 2″ (87 01 250)
- Max Jaw Opening – Square Stock: 7/8″ (82 01 200)
- Max Jaw Opening – Hex: 7/8″ (82 01 200); 2″ (86 01 250); 1 3/4″ (87 01 250)
- Max Jaw Opening – Working Capacity: 7/8″ (82 01 200); 2″ (86 01 250 and 87 01 250)
- Stripping Capacity: 20 to 10 (13 71 8) AWG
- DIN: DIN ISO 5749 (74 01 250); DIN ISO 8976 (87 01 250)
- Reach: does not contain SVHC
- RoHS: not applicable
- Limited lifetime warranty
