The KC HiLiTES Cyclone V2 LED Rock Light 6-Light System (Clear) (5W Flood Beam) (91040) from Nomadic Supply Company® is a complete 6-pod rock light kit using KC’s Cyclone V2 LED pods with clear lenses, delivering 600 raw lumens per pod with full plug-and-play wiring, a premium fuse block, and universal mounting hardware for undercarriage and wheel-well installation.
KC HiLiTES Cyclone V2 LED Rock Light 6-Light System (Clear) (5W Flood Beam) (91040) Features:
- 5W Samsung SMD LED Output. 15 Samsung SMD 3035 LEDs deliver 600 raw lumens per pod at just 0.42A — bright enough to fully illuminate a wheel well or undercarriage section with each pod.
- IP68 Waterproof Rating. Each pod is fully sealed to IP68 standards for permanent submersion, built to handle mud, water, rocks, and debris thrown at the undercarriage on the most demanding trails.
- Flood Beam Pattern. 360° horizontal flood pattern delivers wide-area illumination under the vehicle — ideal for rock crawling, undercarriage lighting, and step-area visibility.
- Compact 2.2″ Profile. The flat 0.53″ height and 2.2″ diameter make the Cyclone V2 pods mountable in tight undercarriage and wheel-well locations where no other light fits.
- Plug-N-Play Wiring. Complete wiring harness with 2×16ft, 2×11ft, and 2×8ft leads allows flexible routing from a single central power source to all 6 pod locations with no custom wiring.
- Premium Fuse Block with Switch. Centralized fuse block with ground post and switch keeps the install clean and protects all 6 lights from electrical faults simultaneously.
- Clear Lens. Provides full white flood output for maximum rock crawling and undercarriage visibility at night, with each pod accepting any Cyclone V2 replacement lens color for future customization.

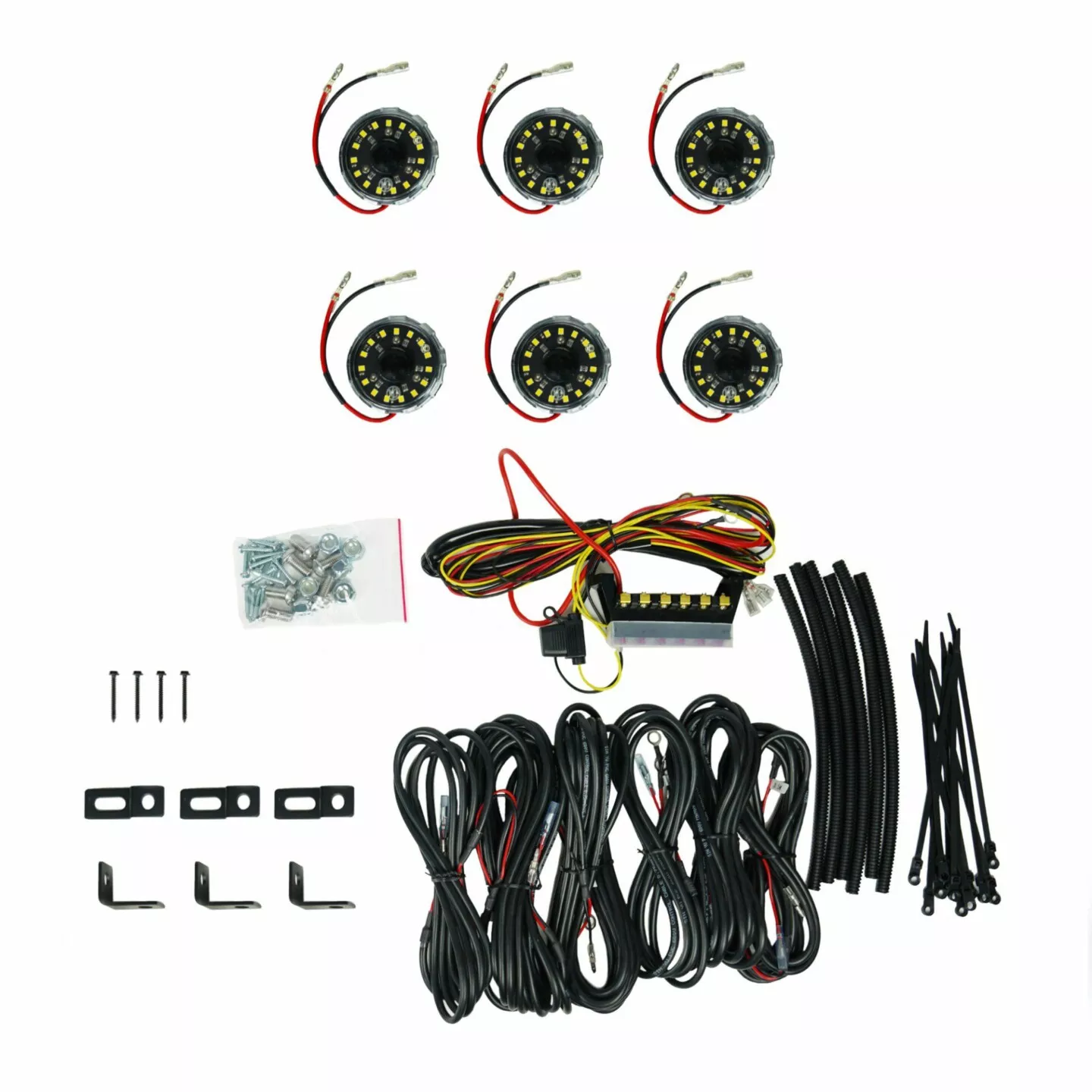

KC HiLiTES Cyclone V2 LED Rock Light 6-Light System (Clear) (5W Flood Beam) (91040) Includes:
- (6) KC HiLiTES Cyclone V2 LED Rock Light Pods (Clear Lens)
- Premium Fuse Block with Ground Post and Switch
- (6) Deluxe Wiring Harnesses (2× 16ft, 2× 11ft, 2× 8ft)
- Universal Mounting Hardware
KC HiLiTES Cyclone V2 LED Rock Light 6-Light System (Clear) (5W Flood Beam) (91040) Specifications:
- Wattage: 5W per light
- LED Source: 15× Samsung SMD 3035 LED
- Amp Draw: 0.42A per light
- Voltage: 9V–16V
- IP Rating: IP68
- Raw Lumens: 600 lm per light
- Dimensions (Dia × Depth): 2.20″ × 0.53″
KC HiLiTES Cyclone V2 LED Rock Light 6-Light System (Clear) (5W Flood Beam) (91040) Documents:
KC HiLiTES Cyclone V2 LED Rock Light 6-Light System (Clear) (5W Flood Beam) (91040) Installation Instructions
