The KC HiLiTES Cyclone V2 LED 2-Light Universal Under Hood Lighting System (5W Flood Beam) (355) from Nomadic Supply Company® is a complete 2-light under-hood lighting kit using KC’s proven Cyclone V2 LED pods with all wiring, a weatherproof switch, and mounting hardware included for quick installation on any vehicle.
KC HiLiTES Cyclone V2 LED 2-Light Universal Under Hood Lighting System (5W Flood Beam) (355) Features:
- 5W Samsung SMD LED Output. 15 Samsung SMD 3035 LEDs deliver 600 raw lumens from a 5W draw — bright, efficient, and low enough on amperage to run a dozen Cyclones on a single circuit without concern.
- Die-Cast Aluminum Housing. The 2.2″ diameter die-cast aluminum base provides strength, rigidity, and superior heat dissipation, protecting the LED for a rated lifespan of 50,000+ hours.
- IP68 Waterproof Rating. Fully sealed for permanent submersion — confident use in engine bays, underbody, wheel wells, and anywhere water and mud are a constant concern.
- Flood Beam Pattern. Wide 360° flood beam delivers ample close-range illumination in all directions — ideal for rock crawling, wheel wells, engine bays, truck beds, and interior lighting applications.
- Replaceable Colored Lens Options. Polycarbonate snap-on/snap-off lens swaps in seconds with a screwdriver — available in Clear, Diffused, Amber, Red, Blue, and Green for any lighting need.
- Universal Mounting. Centrally located mounting hole compatible with Dzus clips, surface mounts, flush mounts, angled mounts, and magnetic mounts for placement virtually anywhere on the vehicle.
- Universal Under Hood Kit. Includes all hardware, wiring, and a weatherproof switch specifically sized and configured for under-hood mounting — bolt-on installation with no cutting or custom wiring required.

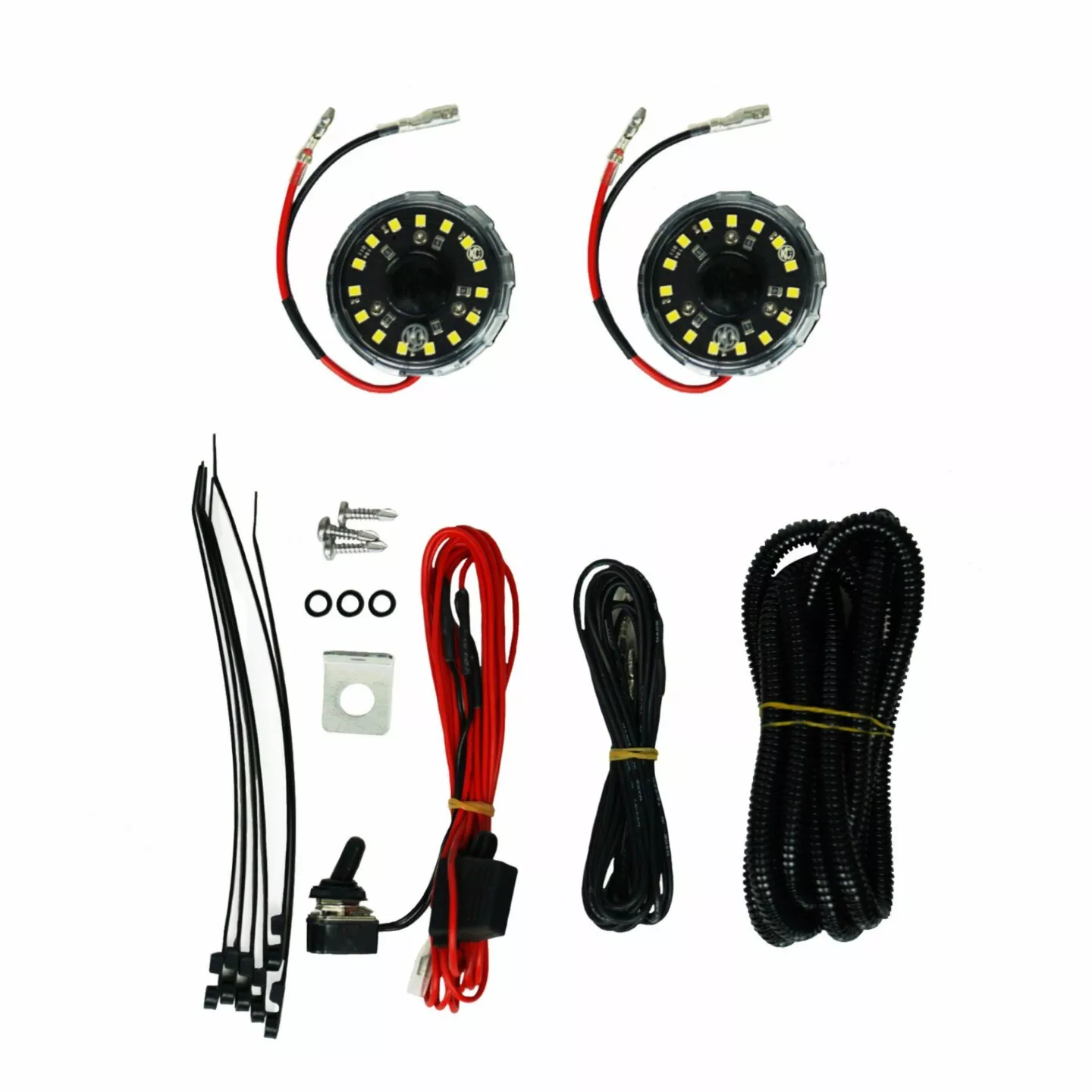

KC HiLiTES Cyclone V2 LED 2-Light Universal Under Hood Lighting System (5W Flood Beam) (355) Includes:
- (2) KC HiLiTES Cyclone V2 LED Lights (Clear Lens)
- Wiring with Weatherproof Switch
- Universal Under Hood Mounting Hardware
KC HiLiTES Cyclone V2 LED 2-Light Universal Under Hood Lighting System (5W Flood Beam) (355) Specifications:
- Wattage: 5W per light
- LED Source: 15× Samsung SMD 3035 LED
- Amp Draw: 0.40A per light
- Voltage: 9V–16V
- IP Rating: IP68
- Raw Lumens: 600 lm per light
- Dimensions (Dia × Depth): 2.20″ × 0.53″
KC HiLiTES Cyclone V2 LED 2-Light Universal Under Hood Lighting System (5W Flood Beam) (355) Documents:
KC HiLiTES Cyclone V2 LED 2-Light Universal Under Hood Lighting System (5W Flood Beam) (355) Installation Instructions
