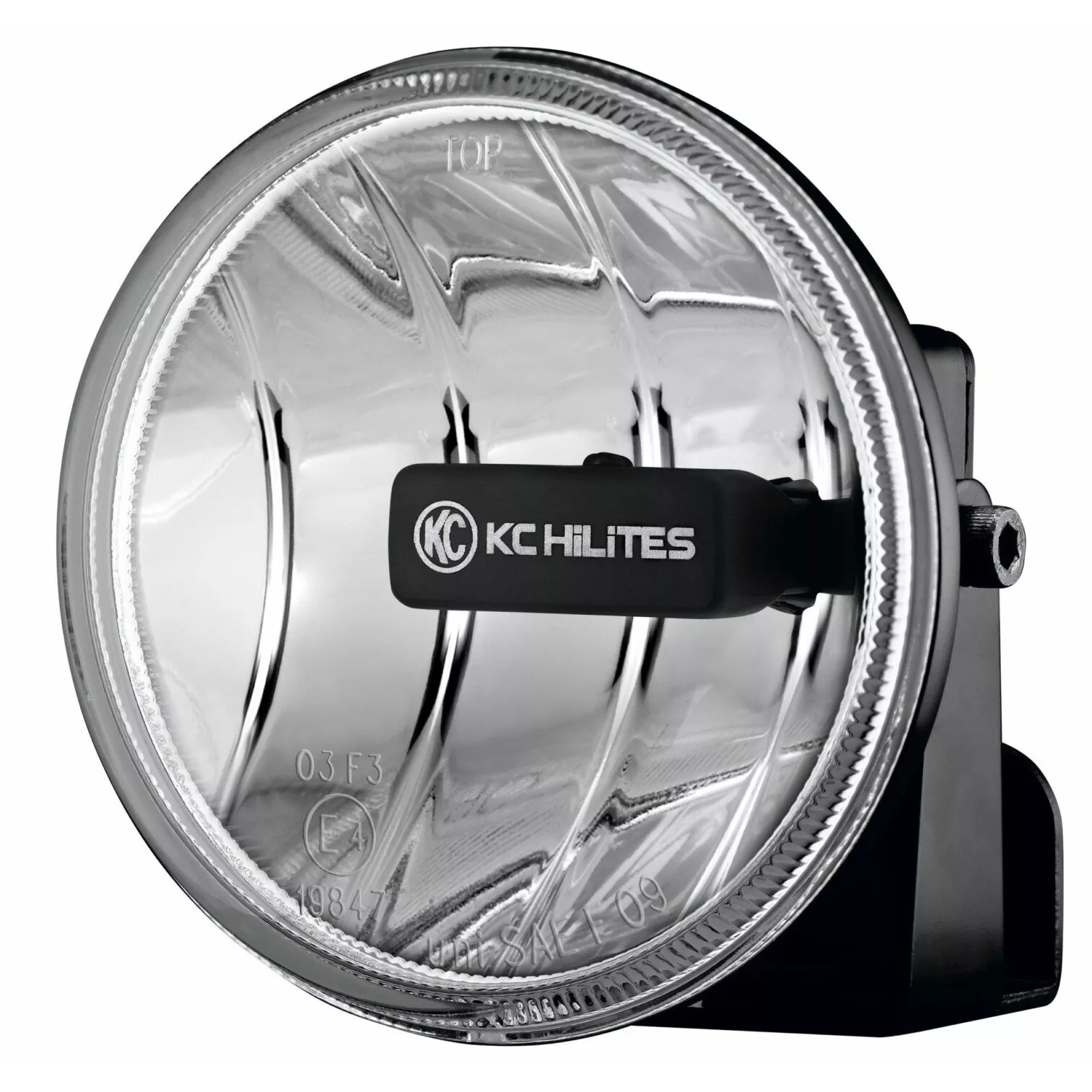

The KC HiLiTES 4″ Gravity LED G4 2-Light System (SAE/ECE) (10W Fog Beam) (493) from Nomadic Supply Company® is a 10W SAE/ECE street-legal fog light featuring KC’s patented Gravity Reflective Diode system in a compact 4″ magnesium housing, delivering 866 raw lumens at just 0.74A draw.
KC HiLiTES 4″ Gravity LED G4 2-Light System (SAE/ECE (10W Fog Beam) (493) Features:
- 10W CREE LED Output. Powered by a CREE LED delivering 866 raw lumens at just 10W and 0.74A draw — bright, efficient, and easy on your vehicle’s electrical system.
- Patented GRD System. KC’s Gravity Reflective Diode (GRD) system precisely aims LEDs into optical reflectors to capture all available light and project it forward for maximum beam efficiency.
- SAE/ECE Street Legal. Meets SAE J583 and ECE-R19 fog light standards, fully legal for on-road use while delivering meaningful visibility improvement over stock lights in low-visibility conditions.
- Fog Beam Pattern. Low, wide-angle fog beam increases short-range peripheral visibility — ideal for dust, rain, snow, and fog conditions encountered on and off the trail.
- Lightweight Magnesium Housing. The compact 4″ magnesium housing provides maximum heat dissipation to protect the LED, while keeping weight to a minimum compared to steel-housed alternatives.
- IP68 Waterproof. Fully sealed to IP68 standards for permanent submersion protection, built for stream crossings, mud, and heavy rain.
- Universal Adjustable Bracket. Includes KC’s innovative adjustable mount for easy horizontal aiming adjustment, ensuring a consistent and optimal beam angle on any vehicle.
KC HiLiTES 4″ Gravity LED G4 2-Light System (SAE/ECE (10W Fog Beam) (493) Specifications:
- Wattage: 10W per light
- LED Source: CREE LED
- Color Temperature: 5000K
- Amp Draw: 0.74A per light
- Voltage: 9V–36V
- IP Rating: IP68
- Compliance: SAE J583 and ECE-R19
- Raw Lumens: 866 lm per light
- Lux at 10 Meters: 150 lx per light
- Candela: 15,000 cd per light
- Beam Distance: 245m per light
- Dimensions (W×H×D): 3.94″ × 3.94″ × 3.23″
