High Teck E-Coat Repair Aerosol – OEM Color Match
High Teck E-Coat Repair Aerosol is a corrosion-resistant, direct-to-metal coating designed to replicate OEM factory e-coat finishes. Available in multiple factory-matched colors, this aerosol restores both the appearance and protection of original e-coated surfaces on replacement panels and repaired areas.
This versatile coating can be used as a DTM primer or as a standalone OEM-style finish. It provides excellent adhesion to bare metal, e-coat, primers, and painted surfaces while delivering long-term corrosion protection and UV resistance.
Ideal for collision repair, restoration, and panel replacement work, High Teck E-Coat helps recreate factory-correct finishes on structural and visible components alike.

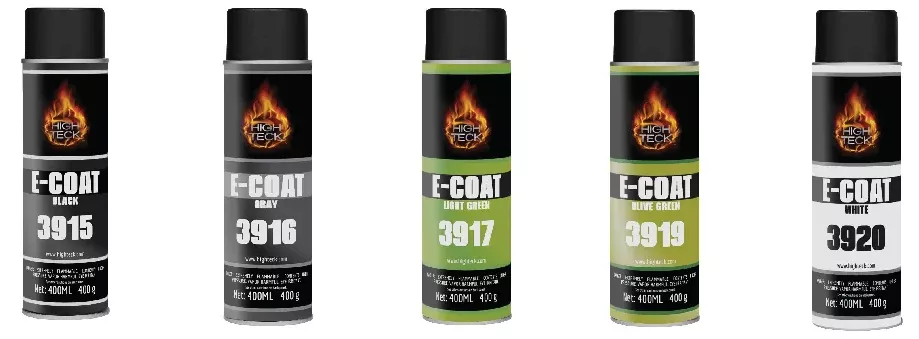

Available Colors
| Color | Part Number | Finish Type |
|---|---|---|
| Black | 3915 | OEM E-Coat Match |
| Gray | 3916 | OEM E-Coat Match |
| Light Green | 3917 | OEM E-Coat Match |
| Olive Green | 3919 | OEM E-Coat Match |
| White | 3920 | OEM E-Coat Match |
Key Features
- Direct-to-metal e-coat repair coating
- Matches OEM factory primer and e-coat colors
- Excellent corrosion resistance technology
- UV resistant finish for long-term durability
- Superior adhesion to metal, primers, and painted surfaces
- Compatible with most solvent and water-based topcoats
- No etch primer required on steel or aluminum
- Ideal for collision repair and restoration work
Common Applications
- Replacement body panels
- Vehicle floors and underbody areas
- Engine bays and compartments
- Core supports and structural components
- Door skins and inner panels
- Spot repairs on OEM-coated surfaces
Recommended Substrates
- Lightly abraded OEM e-coat
- Bare steel and aluminum
- Polyester body filler
- Prepared painted surfaces
- Fiberglass and SMC
Application Instructions
- Remove all rust, oxidation, and contaminants from the surface.
- Abrade surface using 600P–800P grit sandpaper.
- Shake can thoroughly for at least 2 minutes.
- Apply 1–2 medium coats from approximately 10 inches away.
- Allow 10 minutes flash time between coats.
- Allow 20–30 minutes dust-free and 30–60 minutes full dry at 70°F.
- Invert can after use and spray to clear nozzle.
Topcoat Recommendations
| Topcoat Type | Instructions |
|---|---|
| Solvent-Based | Topcoat after 30 minutes |
| Water-Based | Allow full cure, then lightly scuff before application |
Technical Specifications
| Specification | Details |
|---|---|
| Brand | High Teck |
| Product Type | E-Coat Repair Aerosol |
| Format | 450 mL Aerosol |
| Build Per Coat | 0.60 mil |
| Maximum Build | 1.0 mil |
| Coverage | Approx. 17 sq ft per can |
| Flash Time | 10 minutes @ 70°F |
| Dry Time | 30–60 minutes @ 70°F |
| Application Temp | 70°F recommended |
| Storage Temp | 40°F – 78°F |
Important Note
For galvanized surfaces, apply an appropriate etching primer before using High Teck E-Coat. Always follow safety guidelines and read full product instructions before use.
Pro Tip
Keeping multiple OEM e-coat colors on hand allows you to match factory finishes more accurately during panel replacement or repair work—especially in visible areas like engine bays and door jambs.
