The Go Power! Retreat 100 Watt Monocrystalline Solar Panel Kit from Nomadic Supply Company® is our most efficient solar charging kit available and is ideal for rooftops where space is limited. The Go Power! Retreat 100 Watt Monocrystalline Solar Panel Kit features 100 watts and 5.43 amps of charge power. For extended or full-time traveling, see our Go Power! Overlander Solar Panel Kit or an AC power system like the Go Power! Solar Elite.

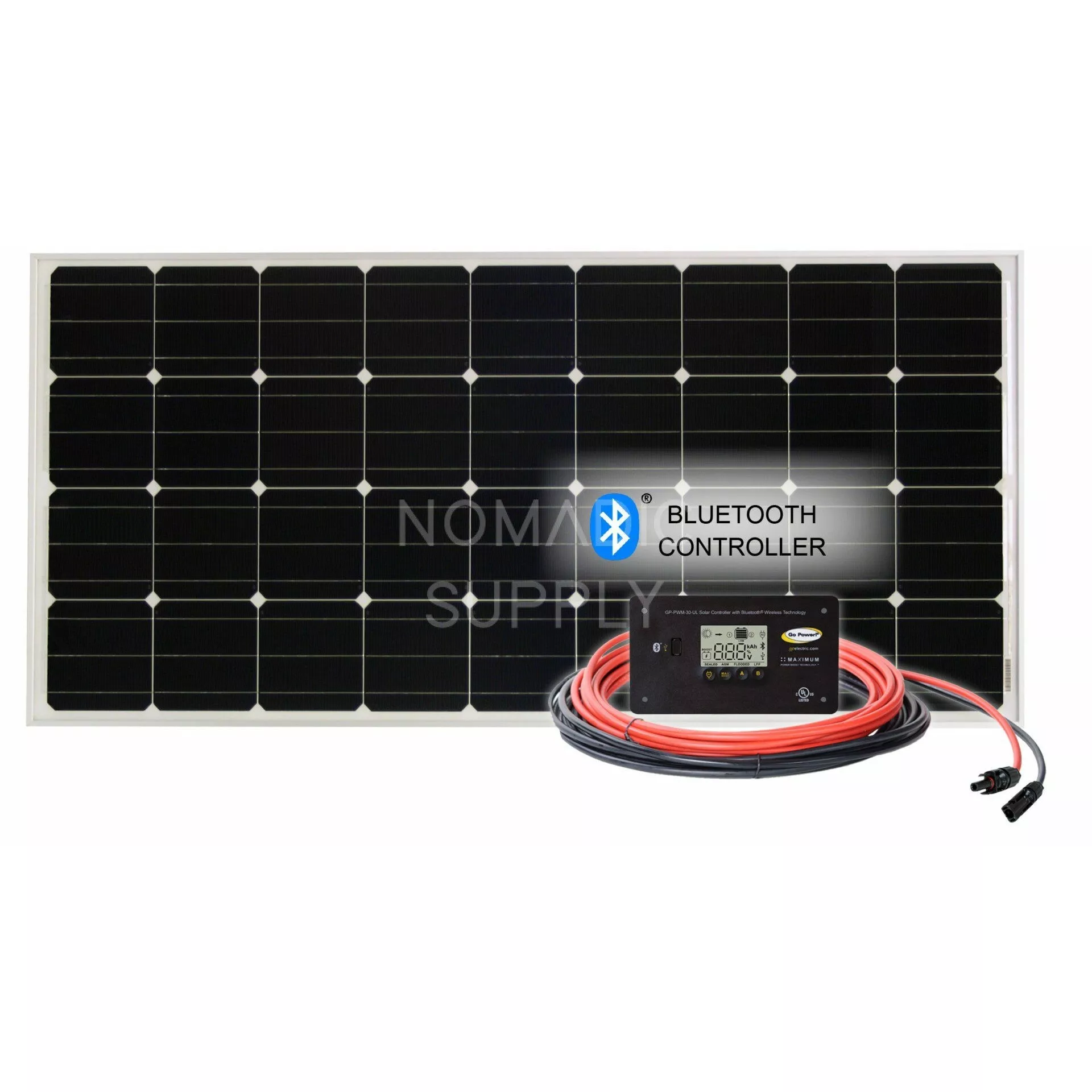

Go Power! Retreat 100 Watt Monocrystalline Solar Panel Kit Includes::
- 100-watt solar panel (GP-PV-100M)
- 30-amp dual-bank, Bluetooth PWM Solar Controller (GP-PWM-30-UL)*
- 25′ of MC4 output cable – RED (10)
- 25′ of MC4 output cable – BLACK (10)
- Mounting hardware (1 x GP-MH-4-KB)
*If you have the GP-PWM-30-UL controller WITHOUT Bluetooth, please click here for the User Manual and Spec Sheet.
Solar Module and Controller
Large Solar Panel Kit Specifications
| Solar cell type | Monocrystalline |
| Output power | 100 W |
| Rated current | 5.43 A |
| Rated DC voltage | 18.4 V |
| Open-circuit voltage | 22.6 V |
| Module efficiency | 15.34% |
| Connectivity | MC4 connectors |
| Solar controller | 30 A PWM, multi battery option, 4 stage charging, digital display and flush mount |
| Frame type | Silver / black anodized aluminum frame |
| Certifications | CE |
| Dimensions | 47.09 x 21.46 x 1.38 in / 1196 x 545 x 35 mm |
| Weight | 17.6 lbs / 8 kg |
| Warranty | 25 years (module) / 5 years (controller) |
| OVERLANDER | RETREAT | ECO 80 Watt | GP-PSK-120 | GP-PSK-80 | |
|---|---|---|---|---|---|
| Output power | 170 W | 100 W | 80 W | 120 W | 80 W |
| Solar cell | Monocrystalline | Monocrystalline | Polycrystalline | Monocrystalline | Monocrystalline |
| Installation | Roof mount | Roof mount | Roof mount | Ground / rooftop | Ground / rooftop |
| Solar Controller | 30 A, flush mount (included) | 30 A, flush mount (included) | 30 A, flush mount (included) | 10 A, built-in PWM | 10 A, built-in PWM |
| Expansion capability | GP-OVERLANDER-E expansion kits (up to 510 W) | GP-RETREAT-E expansion kit (up to 500 W) | n/a | Can supplement any large solar kit | |
| Accessories (included) |
|
Battery clamps, ring terminals, anderson-style connectors, SAE adapter, XLR adapter | |||
| Accessories (optional) | Solar expansion kits, adjustable solar mount (ARM-UNI), can be Built-into a complete solar and inverter system | 30′ expansion cable, 7 pin trailer plug | |||
| Warranty | 25 years (module) / 5 years (controller) | 25 years (module) / 3 years (controller) |
Go Power! Retreat 100 Watt Monocrystalline Solar Panel Kit Documents:
Go Power! Retreat 100 Watt Monocrystalline Solar Panel Kit User Manual
Go Power! Retreat 100 Watt Monocrystalline Solar Panel Kit Spec Sheet
Go Power! Retreat 100 Watt Monocrystalline Solar Panel Kit Solar Controller User Manual (GP-PWM-30-UL)
Spec Sheet
Spec Sheet
User Manual
