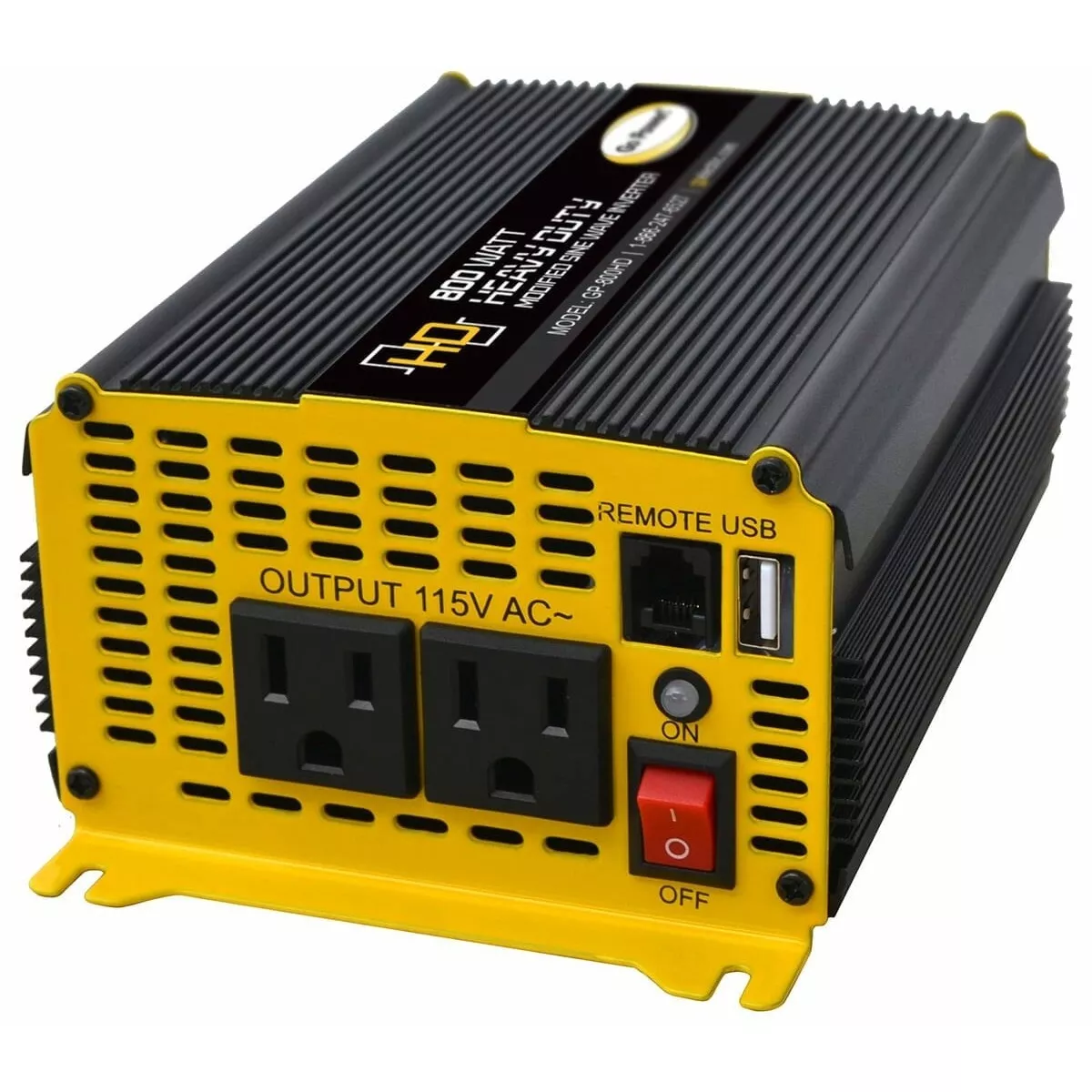

The Go Power! GP-800HD 800 Watt Heavy-Duty Modified Sine Wave Inverter from Nomadic Supply Company® provides mid-range power, ideally for medium-sized power tools or small refrigerator.
A versatile performer for your mid-range power needs, the Go Power! GP-800HD heavy-duty modified sine wave inverter is powerful yet economical. Easy to install, connect the inverter directly to your battery, and then plug your appliances into its two AC outlets. Use the GP-800HD to power lights, drills, blenders and more.
When you’re not using the Go Power! GP-800HD 800 Watt Heavy-Duty Modified Sine Wave Inverter, you can switch it off to conserve power. Ideal for powering kitchen appliances, or as a source of emergency back-up power, the GP-800HD fits a range of applications.
Go Power! GP-800HD 800 Watt Heavy-Duty Modified Sine Wave Inverter Power Specs
| GP-225HD | GP-400HD | GP-800HD | GP-1000HD | |
| Continuous Output Power | 225 W (VA) | 400 W (VA) | 800 W (VA) | 1000 W (VA) |
| Maximum Surge Rating | 450 W (VA) | 800 W (VA) | 1600 W (VA) | 2000 W (VA) |
| Output Waveform | Modified Sine Wave | |||
| Output Voltage Range | 100 – 120 VAC RMS +5/-15 | |||
| Input Voltage | 10.5 – 16 VDC |
Go Power! GP-800HD 800 Watt Heavy-Duty Modified Sine Wave Inverter Operation Specs
| GP-225HD | GP-400HD | GP-800HD | GP-1000HD | |
| Efficiency | ≥80% | ≥80% | ≥80% | ≥80% |
| No Load Current Draw | ≤0.7 A | ≤0.7 A | ≤0.8 A | ≤0.8 A |
| USB Output | 4.75 – 5.25 VDC / 2.1 A | |||
| Protection | Overload, Over Temperature,
Over/Under Voltage, Short Circuit |
|||
| Low Battery Alarm ± 0.5 V | 10.5 V | |||
| Low Battery Shutdown ± 0.5 V | 10 V | |||
| Operating Temperature Range | 32˚F – 104˚F (0˚C – 40˚C) | |||
| Storage Temperature Range | 14˚F – 122˚F (-10˚C – 50˚C) | |||
| Cooling | Thermostatically Controlled Fan | |||
| AC Output Connections | 2 Standard North American Outlets | |||
| Remote Power Option | No | Yes |
Go Power! GP-800HD 800 Watt Heavy-Duty Modified Sine Wave Inverter Specs
| GP-225HD | GP-400HD | GP-800HD | GP-1000HD | |
| Continuous Output Power | 225 W (VA) | 400 W (VA) | 800 W (VA) | 1000 W (VA) |
| Maximum Surge Rating | 450 W (VA) | 800 W (VA) | 1600 W (VA) | 2000 W (VA) |
| Output Waveform | Modified Sine Wave | |||
| Output Voltage Range | 100 – 120 VAC RMS +5/-15 | |||
| Input Voltage | 10.5 – 16 VDC |
Go Power! GP-800HD 800 Watt Heavy-Duty Modified Sine Wave Inverter Documents:
Go Power! GP-800HD 800 Watt Heavy-Duty Modified Sine Wave Inverter User Manual (GP-800HD)
Go Power! GP-800HD 800 Watt Heavy-Duty Modified Sine Wave Inverter Spec Sheet (GP-800HD)
