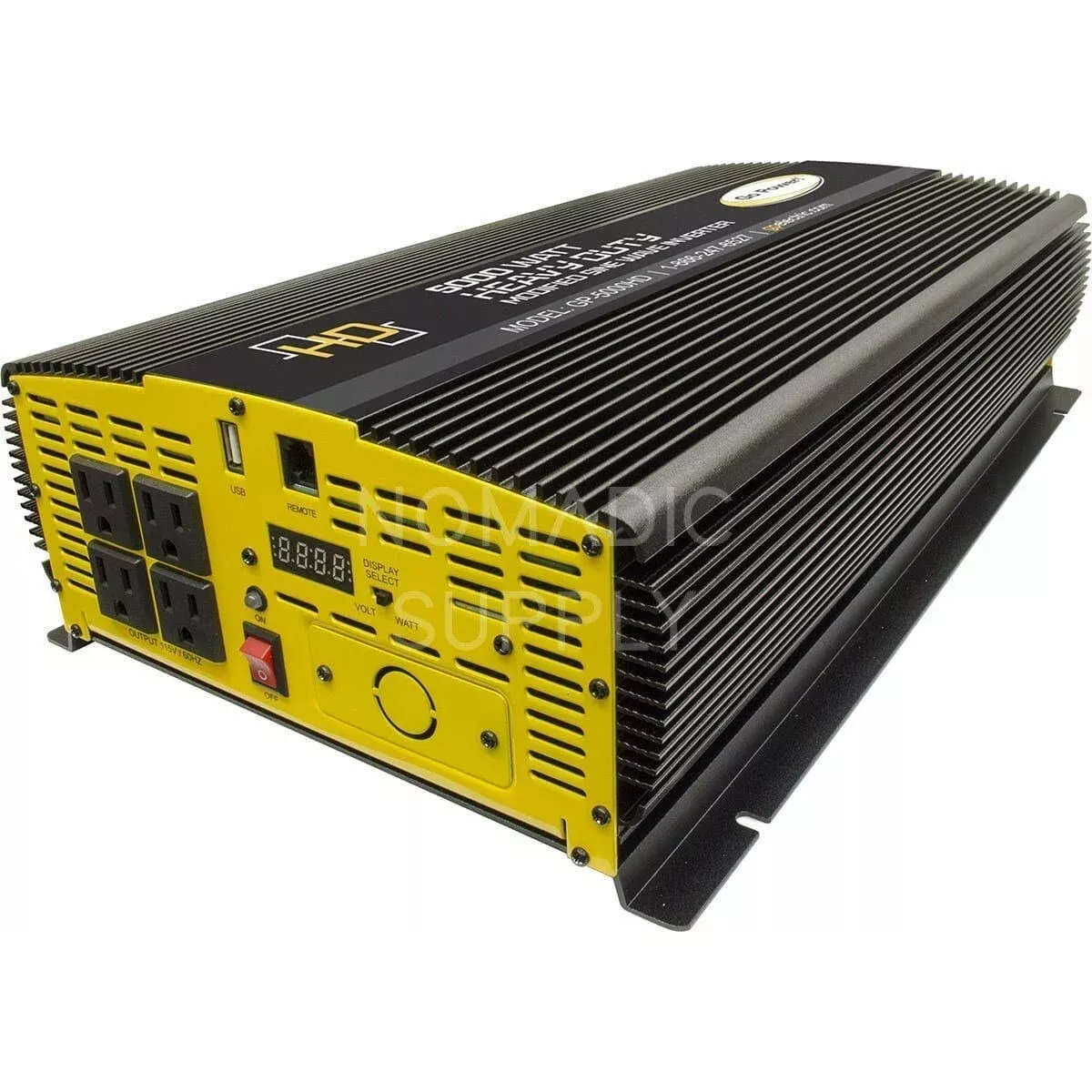

The Go Power! GP-5000HD 5000 Watt Heavy-Duty Modified Sine Wave Inverter from Nomadic Supply Company® provides enough power to run several appliances at once. With a 5000-watt output, this inverter is the best choice for most large power requirements. Plug your appliances directly into its four AC outlets, or wire it into your electrical system using the optional Go Power! transfer switch.
Ideal for powering several appliances, or as a source of emergency back-up power, the Go Power! GP-5000HD 5000 Watt Heavy-Duty Modified Sine Wave Inverter fits a range of applications.
The Go Power! 5000 Watt Heavy-Duty Modified Sine Wave Inverter runs larger loads: run multiple appliances and tools at once. Includes four outlets.
Go Power! GP-5000HD 5000 Watt Heavy-Duty Modified Sine Wave Inverter Power Specs
| GP-1750HD | GP-3000HD | GP-5000HD | |
| Continuous Output Power | 1750 W (VA) | 3000 W (VA) | 5000 W (VA) |
| Maximum Surge Rating | 3500 W (VA) | 6000 W (VA) | 10000 W (VA) |
| Output Waveform | Modified Sine Wave | ||
| Output Voltage Range | 100 – 120 VAC RMS +5/-15 | ||
| Input Voltage | 10.5 – 16 VDC | ||
| Efficiency | ≥80% | ≥85% | ≥80% |
Go Power! GP-5000HD 5000 Watt Heavy-Duty Modified Sine Wave Inverter Operations Specs
| GP-1750HD | GP-3000HD | GP-5000HD | |
| No Load Current Draw | ≤1 A | ≤1.2 A | ≤1.2 A |
| USB Output | 4.75 – 5.25 VDC / 2.1 A | ||
| Protection | Overload, Over Temperature,
Over/Under Voltage, Short Circuit |
||
| Low Battery Alarm ± 0.5 V | 10.5 V | ||
| Low Battery Shutdown ± 0.5 V | 10 V | ||
| Operating Temperature Range | 32˚F – 104˚F (0˚C – 40˚C) | ||
| Storage Temperature Range | 14˚F – 122˚F (-10˚C – 50˚C) | ||
| Cooling | Thermostatically Controlled Fan | ||
| AC Output Connections | 3 Standard North American Outlets | 4 Standard North American Outlets | |
| Remote Power Option | Yes |
Go Power! GP-5000HD 5000 Watt Heavy-Duty Modified Sine Wave Inverter Specs
| GP-1750HD | GP-3000HD | GP-5000HD | |
| Dimensions (L x W x H) | 8.07” x 8.86” x 3.50”
(205 mm x 225 mm x 89 mm) |
11.41” x 9.92” x 4.13”
(290 mm x 252 mm x 105 mm) |
18.50” x 9.92” x 4.13”
(470 mm x 252 mm x 105 mm) |
| Weight | 6.42 lbs (2.91 kg) | 10.54 lbs (4.78 kg) | 15.65 lbs (7.10 kg) |
| Warranty | 1 Year | ||
| Inverter Install Kits (sold separately) | GP-DC-KIT3 | GP-DC-KIT5 | |
| Remotes (sold separately) | GP-REMOTE | ||
|
*Specifications subject to change without notice |
Go Power! GP-5000HD 5000 Watt Heavy-Duty Modified Sine Wave Inverter Documents:
Go Power! GP-5000HD 5000 Watt Heavy-Duty Modified Sine Wave Inverter User Manual (GP-5000HD)
Go Power! GP-5000HD 5000 Watt Heavy-Duty Modified Sine Wave Inverter Spec Sheet (GP-5000HD)
Spec Sheet
User Manual
