Park in the shade while your kit sits in the sun to charge your batteries!

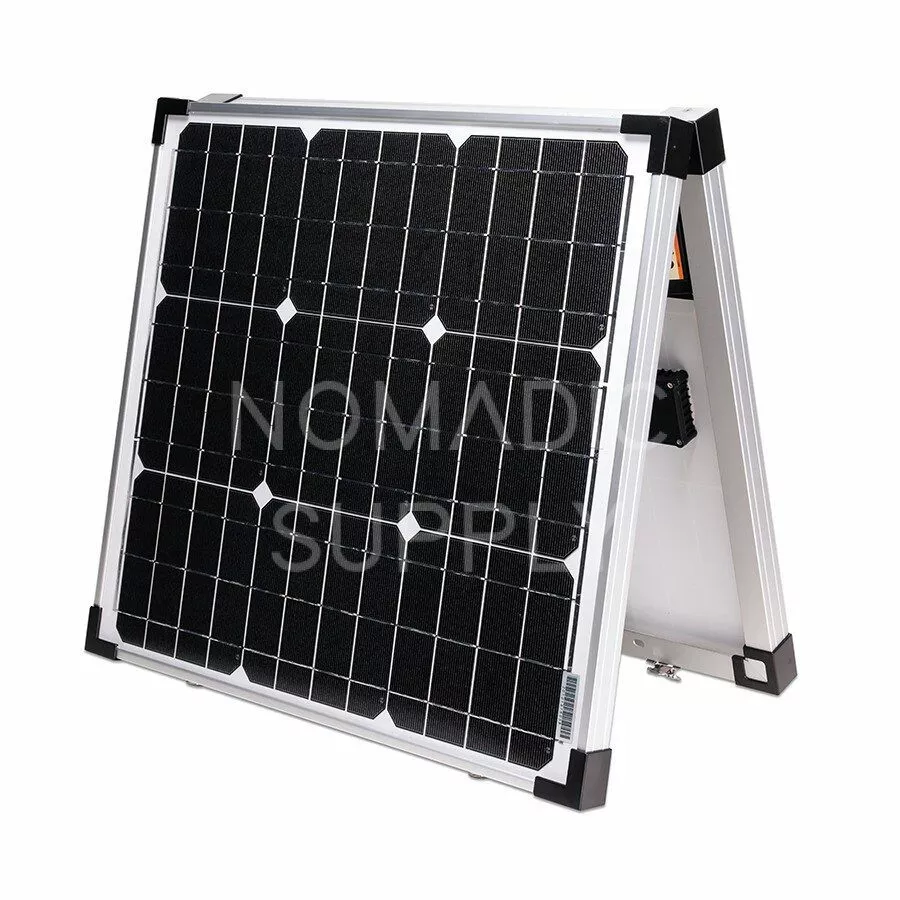

The Go Power! 90 Watt Portable Solar Panel Kit (GP-PSK-90) (PSK) folding solar modules offer some of the most versatile and convenient battery charging options for those who don’t want to permanently mount solar to a rooftop or want to supplement a roof top system. The Anderson-style battery charging connectors allow you to quickly interchange the charging accessory to best suite your needs – from maintaining your RV or trailer battery while on the road to trickle charging your car, ATV or boat battery. Adjustable folding legs to maximize solar exposure and for compact easy storage. Multiple charging connectivity options. Includes a heavy-duty nylon case for storage protection. They also are a great supplemental solar kit to a roof top kit.
Go Power! 90 Watt Portable Solar Panel Kit (GP-PSK-90) Includes:
The Portable Solar Panel Kits come with a variety of battery charging options with Anderson-style, quick connectivity.
- 10 amp charge controller (GP-PWM-10-FM)
- Battery clamps
- Quick connectors
- Ring terminal connectors
- SAE solar plug adapter
- XLR-style solar plug adapter
- 12′ of UV 12/2 cable
- Heavy-duty, nylon storage case
Go Power! 90 Watt Portable Solar Panel Kit (GP-PSK-90) Specifications:
| GP-PSK-200 | GP-PSK-130 | GP-PSK-90 | |
|---|---|---|---|
| Solar cell type | Monocrystalline | Monocrystalline | Monocrystalline |
| Output power | 200 W | 130 W | 90 W |
| Rated current | 11.4 A | 6.7 A | 4.6 A |
| Rated DC voltage | 17.6 V | 19.7 V | 19.8 V |
| Open-circuit voltage | 21.1 V | 23.8 V | 23.6 V |
| Connectivity | Battery clamps, Quick connectors, Ring terminal connectors,
SAE solar plug adapter, XLR-style solar plug adapter |
||
| Solar controller | 30-amp Single Bank | 10 A, PWM, built-in | |
| Frame type | Silver anodized aluminum frame, built-in adjustable folding legs | ||
| Certifications | ce | ||
| Rated | IP52 | ||
| Dimensions Closed (H x W x D) | 39 x 26.4 x 5.6 in / 1005 x 670 x 70 mm | 32.5 x 19.9 x 2.8 in / 824 x 503 x 70 mm | 21.7 x 19.9 x 2.5 in / 550 x 505 x 65 mm |
| Dimensions (open) | 39 x 52.8 x 2.8 in / 1005 x 1340 x 70 mm | 32.5 x 39.8 x 1.4 in / 824 x 1006 x 33 mm | 21.7 x 39.8 x 1.3 in / 550 x 1010 x 33 mm |
| Weight | 51 lbs / 23 kg | 33 lbs / 15 kg | 19.8 lbs / 9 kg |
| Warranty | 25 years (module) / 3 years (controller) |
| Nominal System Voltage | 12V |
| Max Solar Array Current | 10A |
| Battery Voltage Range | 6V — 15.5V |
| Max. Solar panel input voltage | 28V |
| Operating Consumption | 6mA |
| Display Consumption | 10mA |
| Temp. Compensation | -13mV/ºF / – 24mV/ºC |
| Operating Temperature | – 40 to 185ºF / – 40 to 85ºC |
| Humidity | 99% N.C. |
| Dimensions (H x W x D): | 5.87 x 3.86 x 1.26 in; 149 x 98 x 32 mm |
| Weight | 9.2 oz; 260 grams |
| Maximum Wire Gauge: | 4 AWG |
| Warranty | 5 year |
| Protection | Battery Reverse Polarity, Solar Array Reverse
Polarity, Over temperature, Over Current |
| Rated | IP50 |
FAQ and Support:
Is this kit waterproof?
This kit is not waterproof or weatherproof. Never leave your Portable Solar Panel Kit unattended, plugged in overnight, or subject to inclement weather.
What is included in this kit?
This kit includes: – 10 amp charge controller (GP-PWM-10-FM)- Battery clamps- Quick connectors- Ring terminal connectors- SAE solar plug adapter- XLR-style solar plug adapter- 12′ of UV 12/2 cable- Heavy-duty, nylon storage case
