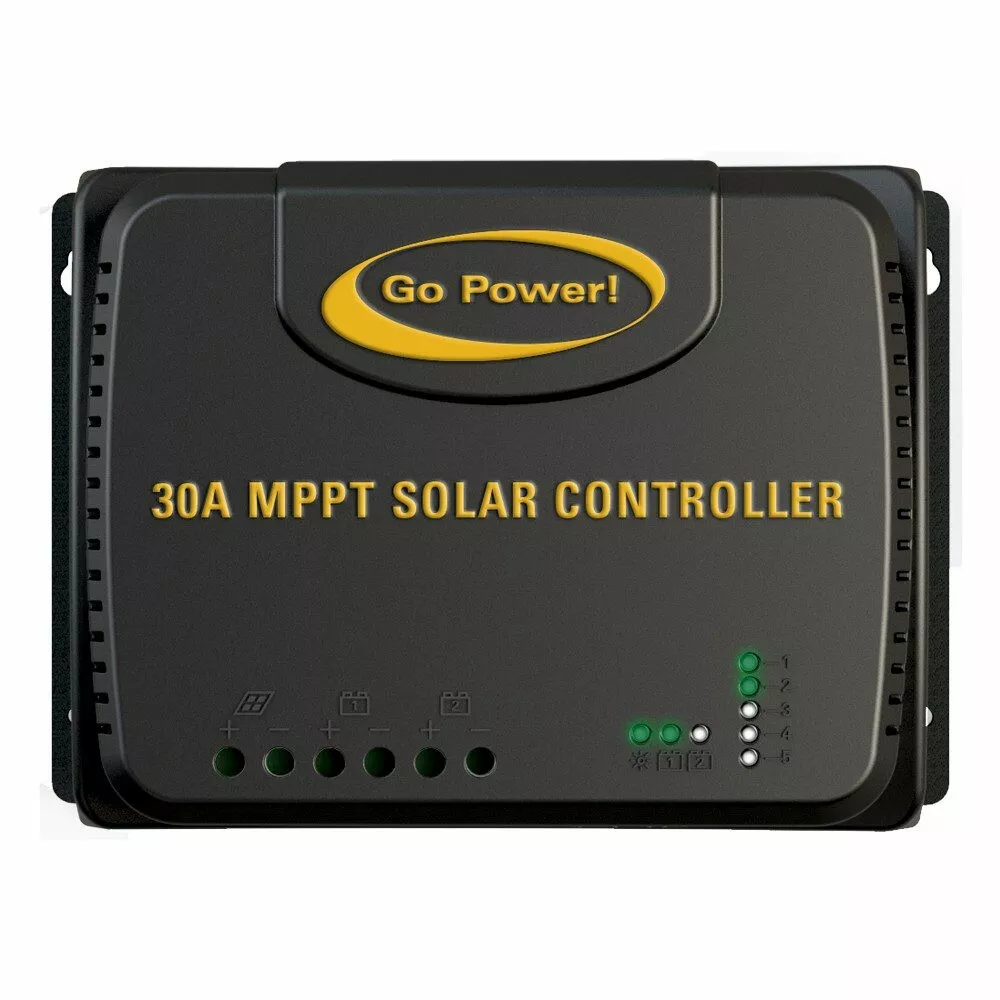

Our Go Power! 30A MPPT Solar Controller + RV-C (GP-RVC-MPPT-30) from Nomadic Supply Company® uses Maximum Power Point Tracking (MPPT) charging with up to 98% efficiency. MPPT solar controllers optimize an RV’s solar charging in all sun and tilt conditions, and are ideal for series wiring configurations. Easy to install compatible with “smart RV” RV-C systems, this controller comes standard in the 190-watt Solar Eclipse Kits.
An RV-C capable 30 Amp MPPT Solar Controller uses Maximum Power Point Tracking (MPPT) charging with up to 98% efficiency. MPPT solar controllers optimize an RV’s solar charging in all sun and tilt conditions, and are ideal for series wiring configurations. Easy to install compatible with “smart RV” RV-C systems, this controller comes standard in the 190-watt Solar Eclipse Kits.
Go Power! 30A MPPT Solar Controller + RV-C (GP-RVC-MPPT-30) Features:
- Easily integrates into onboard communications (RV-C) systems
- The most efficient MPPT controller for RVs
- Compatible with all battery types, including Lithium
- Maximizes all power from your solar modules
- Stackable: add additional controllers to expand your solar array
- Optional Bluetooth remote
- 5-year warranty
- This product is not called GP-RVC-30-MPPT
Go Power! 30A MPPT Solar Controller + RV-C (GP-RVC-MPPT-30) Accessories
- Surface-mounted remote display; shows the charge current to the battery, and battery voltage – ( Go Power! GP-RVC-R Bluetooth-Enabled MPPT Remote)
- Bluetooth® Wireless Technology; works seamlessly with the Go Power! Connect app to provide wireless monitoring of the controller’s parameters and data view
Go Power! 30A MPPT Solar Controller + RV-C (GP-RVC-MPPT-30) Specifications:
|
SPEC |
PARAMETERS |
||||
| System Voltage | 12/24V | ||||
| No-load Loss | 8ma | ||||
| Max PV Input Voltage | <100V | ||||
| Rated Current Charge | 30A | ||||
| Max PV Input Power | 600W/12V;1200W/24V | ||||
| Battery Type Selection | GEL | AGM | FLOODED | LiFePO4 | Custom |
| Equalize Charge Voltage | – | – | 14.9V/29.8V | – | 8.32V |
| Bulk-Absorption Voltage | 14.1V/28.2V | 14.4V/28.8V | 8.32V | ||
| Float Charge Voltage | 13.7V/27.4V | 14.0V/28.0V | 8.32V | ||
| Recharge Voltage | 13.2V/26.4V | 8.32V | |||
| Over-Discharge Return Voltage | 12.8V/25.2V | 12.2V/24.4V | 8.32V | ||
| Under-Voltage Warning Level | 12.0V/24.0V | 8.32V | |||
| Over-Discharge Voltage | 11.0V/22.0V | 8.32V | |||
| Operation Temperature | -35°C ~ +45°C | ||||
| Dimensions | 3.37 x 7.77 x 5.71 in (85.6 x 197.5 x 145 mm) | ||||
| Weight | 3.14lb (1.42kg) | ||||
| IP Protection | IP30 | ||||
| Communication | RS485, Canbus | ||||
| Operation Altitude | <3000M | ||||
| Warranty | 5-years |
Go Power! 30A MPPT Solar Controller + RV-C (GP-RVC-MPPT-30) Documents:
Go Power! 30A MPPT Solar Controller + RV-C (GP-RVC-MPPT-30) Owner’s Manual (MPPT-RVC-30)
Go Power! 30A MPPT Solar Controller + RV-C (GP-RVC-MPPT-30) Remote Manual (RVC-R)
Go Power! 30A MPPT Solar Controller + RV-C (GP-RVC-MPPT-30) Spec Sheet (MPPT-RVC-30)
Spec Sheet
Spec Sheet
User Manual
