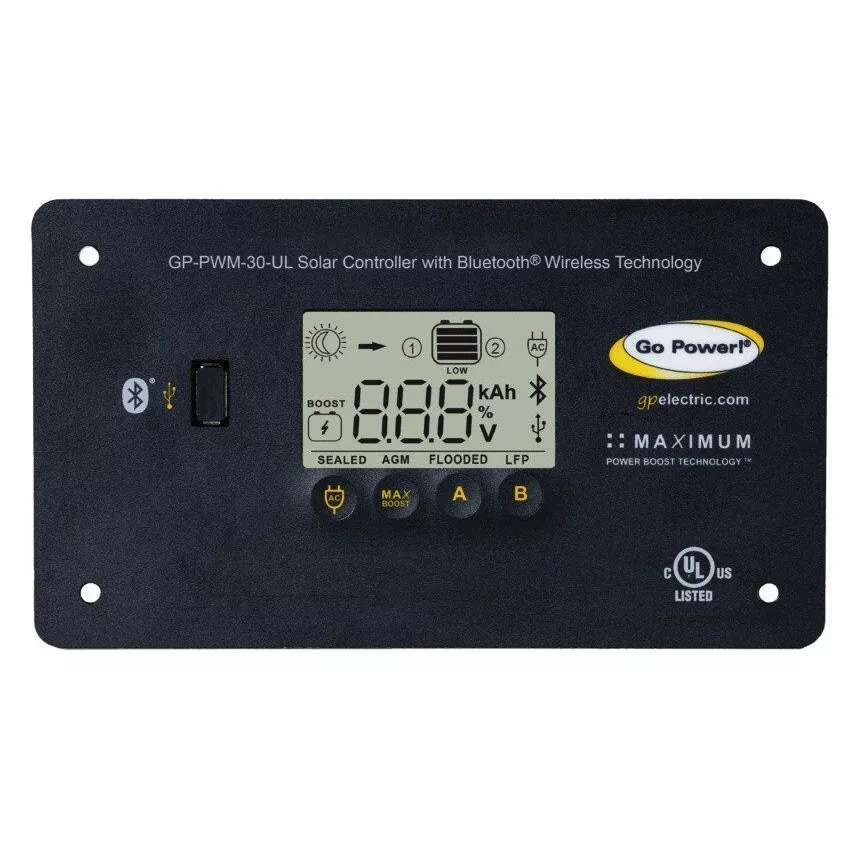

The Go Power! 30 Amp Dual Bank Bluetooth Digital Solar Controller (GP-PWM-30-UL) from Nomadic Supply Company® protects the life of your solar battery, whether its Lithium, AGM, or Lead Acid.
A solar charge controller is an essential component of your photovoltaic (PV) system. The Go Power! 30 Amp Dual Bank Bluetooth Digital Solar Controller (GP-PWM-30-UL) maintains the life of the battery by protecting it from overcharging. When your battery has reached a 100% state of charge, the controller prevents overcharging by limiting the current flowing into the batteries from your solar array.
If your camper van came with model GP-PWM-30-SQ, you can replace it with the Go Power! 30 Amp Dual Bank Bluetooth Digital Solar Controller (GP-PWM-30-UL).
Our Go Power! 30 Amp Dual Bank Bluetooth Digital Solar Controller (GP-PWM-30-UL) features Maximum Power Boost Technology (MPBT). This allows you to override the normal charging algorithm of the solar controller to ‘boost’ the solar charge, which is ideal at the end of the daylight to ensure batteries are topped up for the evening. Performance of the solar controller will not be affected if MPBT function is not utilized.
Go Power! 30 Amp Dual Bank Bluetooth Digital Solar Controller (GP-PWM-30-UL) Features:
- Dual Bank capable
- Bluetooth ready; used the Go Power! Connect app
- 12 volt flush mounted PV charge controller rated for a continuous solar current input of 30 amps.
- Uses pulse width modulation (PWM) technology
- Unique four stage charging system with optional equalize setting, to charge and protect your battery bank
- LCD digital display that shows solar array charge current, system battery voltage and battery capacity
- Built-in USB charge port
- Connects up to 600 watts of solar
- Charges 1 or 2 battery banks
- Remote on/off control of select Go Power! ISW inverters
- 5 year warranty
Go Power! 30 Amp Dual Bank Bluetooth Digital Solar Controller (GP-PWM-30-UL) Bluetooth Capabilities:
Using Go Power! Connect, you can connect to your PWM-30-UL controller to:
- Set the battery type and charging profile
- Turn your compatible Go Power! ISW Inverter on or off
- Toggle Maximum Power Boost mode
- View essential battery stats, including:
- Battery Voltage
- PV Charging Current
- Battery State of Charge (SOC)
Go Power! 30 Amp Dual Bank Bluetooth Digital Solar Controller (GP-PWM-30-UL) Specifications:
| Nominal System Voltage | 12V |
| Max Solar Array Current | 30A |
| Battery Voltage Range | 6V — 15.5V |
| Max. Solar panel input voltage | 28V |
| Operating Consumption | 6mA |
| Display Consumption | 10mA |
| Temp. Compensation | -13mV/ºF / – 24mV/ºC |
| Operating Temperature | – 40 to 185ºF / – 40 to 85ºC |
| Humidity | 99% N.C. |
| Dimensions (H x W x D): | 4.25 x 7.48 x 1.38 in; 108 x 190 x 35 mm |
| Weight | 10.6 oz; 300 g; |
| Maximum Wire Gauge: | 4 AWG |
| Warranty | 5 years |
| Protection | Battery Reverse Polarity, Solar Array Reverse
Polarity, Over temperature, Over Current |
Go Power! 30 Amp Dual Bank Bluetooth Digital Solar Controller (GP-PWM-30-UL) Documents:
Go Power! 30 Amp Dual Bank Bluetooth Digital Solar Controller (GP-PWM-30-UL) User Manual
Go Power! 30 Amp Dual Bank Bluetooth Digital Solar Controller (GP-PWM-30-UL) Spec Sheet
Spec Sheet
User Manual
User Manual (French)
