The Go Power! 20-Watt Eco Solar Panel Trickle Charger Kit (GP-ECO-20) from Nomadic Supply Company® is an economical solar solution for keeping your batteries charged and healthy. Go Power! 10 Watt Eco Solar Panel Trickle Charger Kit (GP-ECO-10) comes with everything needed to install on your RV rooftop.
Go Power! 20-Watt Eco Solar Panel Trickle Charger Kit (GP-ECO-20) Features:
- High-efficiency, tempered glass solar modules
- Has a durable surface
- Is ideal for efficient trickle charging
- 10-year solar module power output warranty

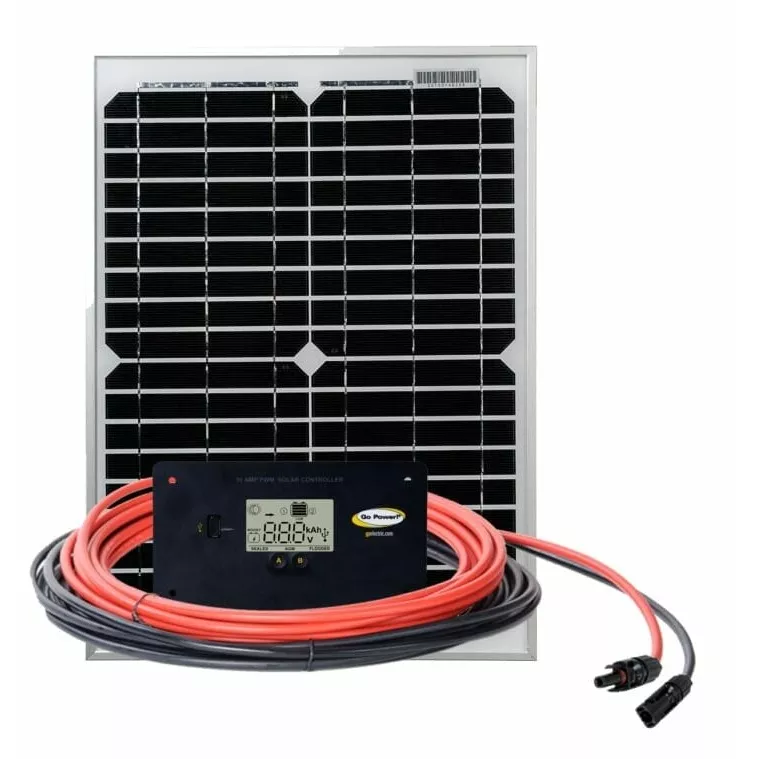

Go Power! 20-Watt Eco Solar Panel Trickle Charger Kit (GP-ECO-20) Includes:
- 20 watts / 1.14 amps flexible solar module
- 10-amp digital PWM Flush-Mounted Solar Controller
- 25′ of MC4 output cable – RED (10)
- 25′ of MC4 output cable – BLACK (10)
Go Power! 20-Watt Eco Solar Panel Trickle Charger Kit (GP-ECO-20) Specifications:
| Specifications | GP-ECO-80 | GP-ECO-20 | GP-ECO-10 |
| Rated Power (Pm) | 80 W | 20 W | 10 W |
| Maximum Power Voltage (Vmp) | 18.4 V | 17.5 V | 17.5 V |
| Maximum Power Current (Imp) | 4.35 A | 1.14 A | 0.57 A |
| Open Circuit Voltage (Voc) | 22.8 V | 21.6 V | 21 V |
| Short Circuit Current (Isc) | 4.60 A | 1.21 A | 0.62 A |
| Cell type | Monocrystalline | Monocrystalline | Monocrystalline |
| Max System Voltage | 1000 VDC | 600 VDC | 600 VDC |
| Weight | 13.2 lb (6 kg) | 3.97 lb (1.8 kg) | 1.7 lb (0.8 kg) |
| Dimensions | 30.71 x 26.46 x 1.38 in
(780 x 672 x 35 mm) |
13.58 x 18.50 x 0.98 in
(345 x 470 x 25 mm) |
13.19 x 9.25 x 0.98 in
(335 x 235 x 25 mm) |
| Frame type / material | Clear anodized aluminum frame | ||
| Warranty (Limited Power Output)* | 25 year | 10 year | 10 year |
Controller Specs
| BATTERY SETTINGS | Sealed/GEL | AGM | Flooded | LiFePO4 |
| Bulk Charge Voltage Set Point | 14.1V | 14.4V | 14.7V | 14.4V |
| Absorption Charge Voltage (30 min / day)
Automatic boost charge applied for 2hr if battery voltage drops below 12.3V |
14.1V | 14.4V | 14.4V | 14.4V |
| Float Charge Voltage | 13V | 13V | 13V | 14V |
| Equalize Charge Voltage
(2h / 28 days or after V <12.1V) |
Disabled | Disabled | 15V | Disabled |
Go Power! 20-Watt Eco Solar Panel Trickle Charger Kit (GP-ECO-20) Documents:
Go Power! 20 Watt Eco Solar Panel Trickle Charger Kit (GP-ECO-20) User Manual (GP-ECO-20)
Go Power! 20 Watt Eco Solar Panel Trickle Charger Kit (GP-ECO-20) Spec Sheet (GP-ECO-20)
Go Power! 20 Watt Eco Solar Panel Trickle Charger Kit (GP-ECO-20) Solar Controller User Manual (GP-PWM-10-FM)
Spec Sheet
