The new Fiamma 98655Z108 F80S/F65 Eagle Awning Mounting Bracket for Ford Transit allows you to install a Fiamma F80S Awning or a Fiamma F65 Eagle Awning on the Ford Transit High Roof 148” wheelbase regular length and extended length vans.

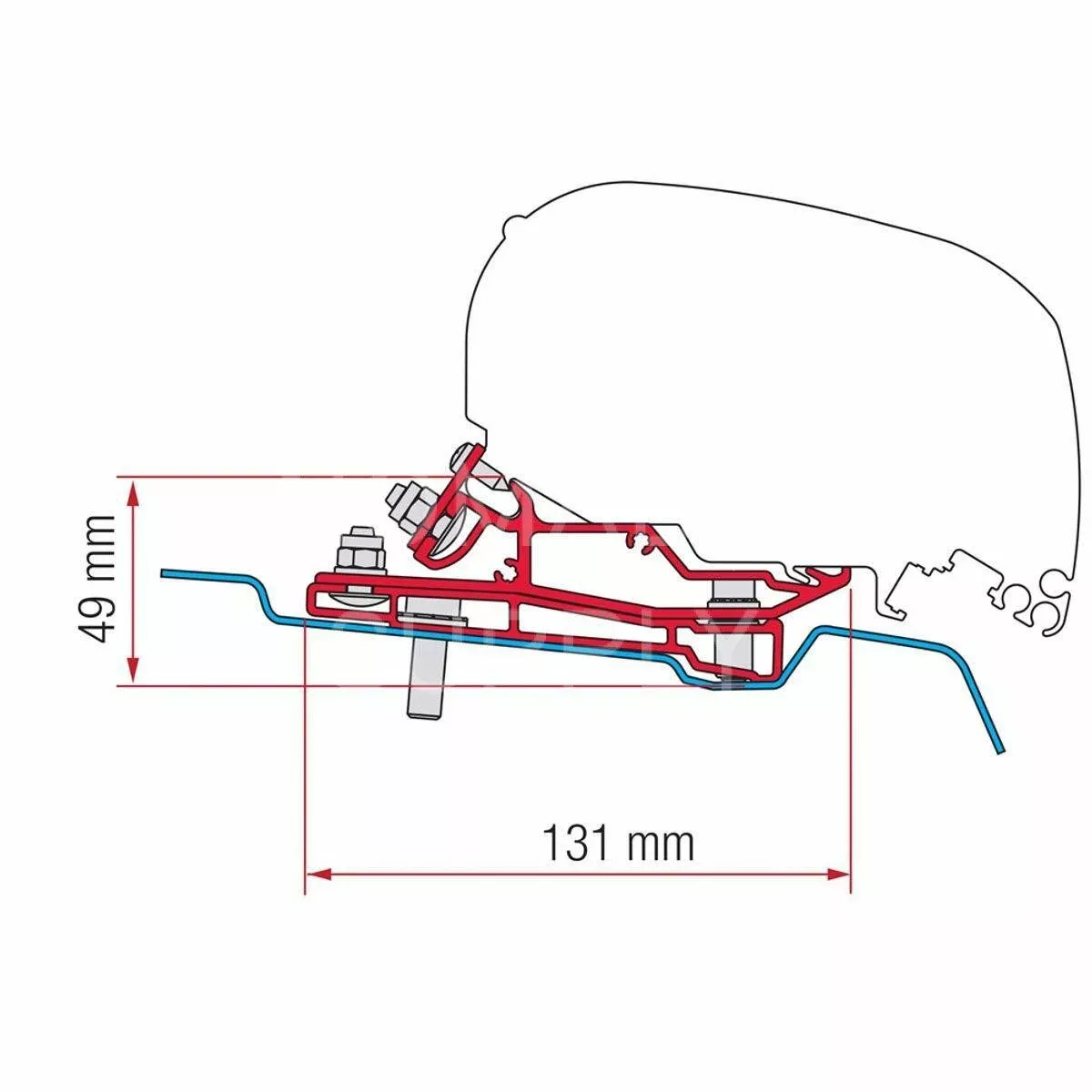

Fiamma 98655Z108 F80S Awning Mounting Bracket for Ford Transit is a full length, 4.0m bracket. Since the roofline of the Transit drops down early, the bracket is full length to help support the awning out an additional 14 inches so that the sliding door is adequately covered.
Fiamma 98655Z108 F80S Awning Mounting Bracket for Ford Transit includes a rain guard that prevents water shedding from the roof of the van.
Fiamma 98655Z108 F80S/F65 Eagle Awning Mounting Bracket for Ford Transit Compatible Vehicles:
2014+ Ford Transit High Roof 148” Wheelbase
2014+ Ford Transit High Roof 148” Wheelbase Extended Length
Extremely Important Mounting Instructions:
The Fiamma 98655Z108 F80S/F65 Eagle Awning Mounting Bracket for Ford Transit is designed specifically for the 400-length awnings. Should you wish to attempt to use the Fiamma 98655Z108 F80S/F65 Eagle Awning Mounting Bracket for Ford Transit for any awning shorter than 13’9″, you MUST mount the awning towards the rear of the van and you MUST cut off the excess bracket that sticks out past the roofline at the front. If you want to mount the awning all of the way to the right (front) of the van to cover the sliding side door, then you MUST use the entire length of the bracket to make sure that it is mounted properly to support the weight of the awning that is sticking out from the roof.
If you have the Ford Transit H3 – L4 the bracket is already pre-drilled with a measure 3900mm:
Should you wish to try to use the Fiamma 98655Z108 F80S/F65 Eagle Awning Mounting Bracket for Ford Transit for any awning shorter than 13’9″, you MUST mount the awning towards the rear of the van and you MUST cut off the excess bracket that sticks out past the roofline at the front. You MUST ensure that the bracket is fixed extremely well in the cut off part to prevent torsion and failure of the awning:
If you want to mount the awning all of the way to the right (front) of the van to cover the sliding side door, then you MUST use the entire length of the bracket to make sure that it is mounted properly to support the weight of the awning that is sticking out from the roof:
Another option for the standard length Ford Transit van is the Fiamma 98655-741 bracket to mount it to the side of the van.
Fiamma 98655Z108 F80S/F65 Eagle Awning Mounting Bracket for Ford Transit Compatible Awnings:
| 07830A01R | F80s 290 – Polar White (9’6″) – 6’6″ extension/55 lbs. |
| 07830B01R | F80s 320 – Polar White (10’6″) – 8’2″ extension/58 lbs. |
| 07830D01R | F80s 370 – Polar White (12’2″) – 8’2″ extension/66 lbs. |
| 07830E01R | F80s 400 – Polar White (13’2″) – 8’2″ extension/71 lbs. |
| 07832B01R | F80s 320 – Titanium (10’6″) – 8’2″ extension/58 lbs. |
| 07832D01R | F80s 370 -Titanium (12’2″) – 8’2″ extension/66 lbs. |
| 07832E01R | F80s 400 – Titanium (13’2″) – 8’2″ extension/71 lbs. |
| 07831B01R | F80s 320 – Deep Black (10’6″) – 8’2″ extension/58 lbs. |
| 07831D01R | F80s 370 – Deep Black (12’2″) – 8’2″ extension/66 lbs. |
| 07831E01R | F80s 400 – Deep Black (13’2″) – 8’2″ extension/71 lbs. |
| 05810-13R | Fiamma F65 Eagle 66 – Polar White (6’6″) – 5″ extension/33 lbs. |
| 07755C01R | Fiamma F65 Eagle 400 – Polar White (13’9″) – 8’2″ extension/83 lbs. |
| 07756C01R | Fiamma F65 Eagle 400 – Titanium (13’9″) – 8’2″ extension/83 lbs. |
| 07757C01R | Fiamma F65 Eagle 400 – Deep Black (13’9″) – 8’2″ extension/83 lbs. |
| 07755F01R | Fiamma F65 Eagle ProMaster 319 – White (10’6″) – 8’2″ extension/64 lbs. |
| 07755G01R | Fiamma F65 Eagle ProMaster 369 – White (12’2″) – 8’2″ extension/72 lbs. |
| 07755H01R | Fiamma F65 Eagle ProMaster 399 – White (13’2″) – 8’2″ extension/83 lbs. |
The bracket may need to be cut to be compatible with a Fiamma F80s awning.
