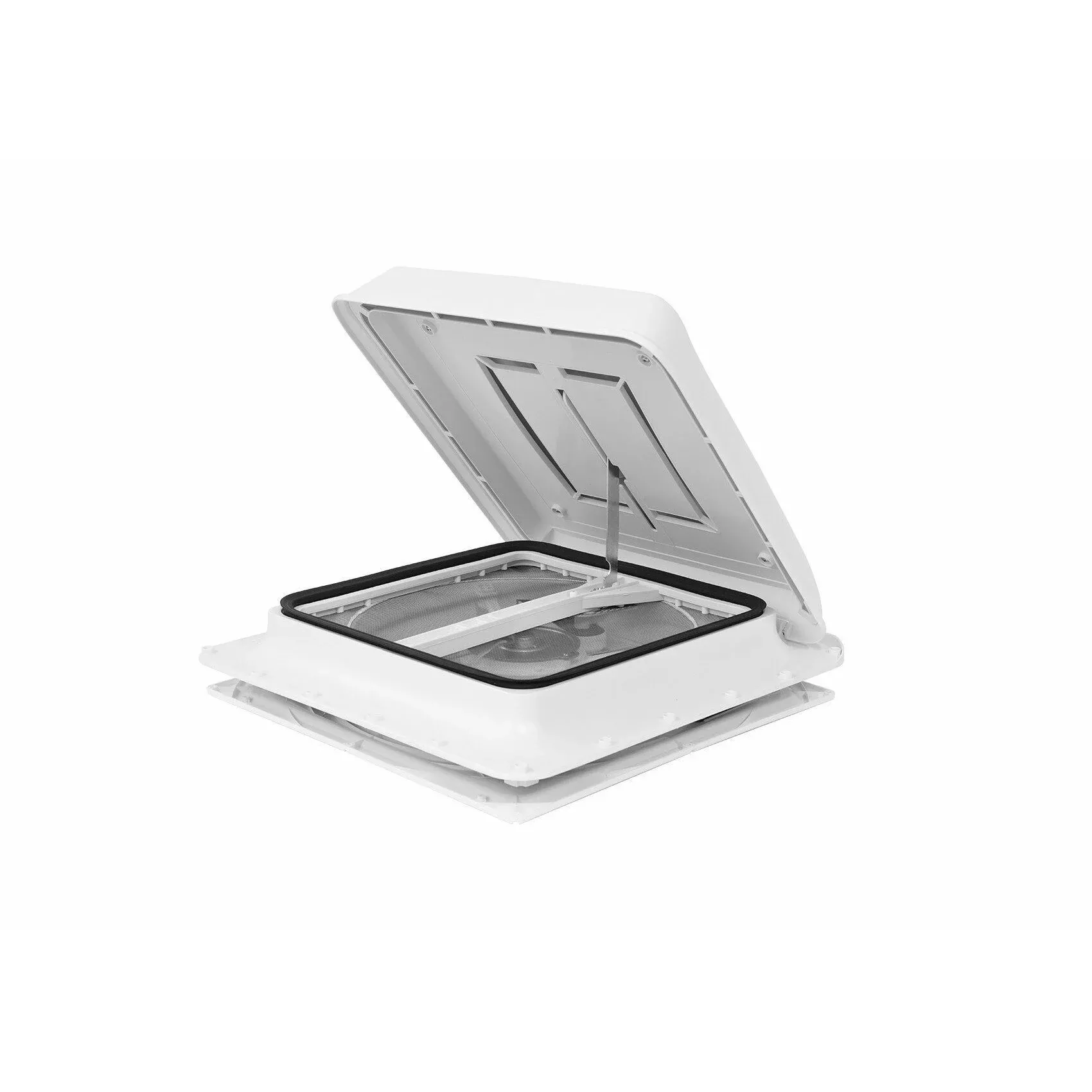

The Fiamma Turbo-Vent Camper Van Roof Fan (White) (03624F02-) 16″ roof light from Nomadic Supply Company® offers high quality and durability. Thanks to its elegant external aerodynamic profile top, it does not require the use of a roof-light spoiler. During high-speed testing, noise and vibrations were greatly reduced. The outer cover and exclusive patented rubber seal, guarantee a watertight system and ensure that rain is displaced.
The Fiamma Turbo-Vent Camper Van Roof Fan (White) (03624F02-) has a large 10-blade fan with 12V DC variable speed motor. The Fiamma Turbo-Vent Fan changes the air inside your vehicle within seconds. The transparent smoke lid filters light and has integrated vent channels that allow reduced airflow in the closed position.
Fiamma Camper Van Turbo-Vent Roof Fan (White) (03624F02-) Features:
[1] Aerodynamic: its shape means that no spoiler is needed
[2] Installation: with through screws, wide and reinforced frame
[3] Permanent ventilation: for constant exchange of air
[4] Opening system: with handy hand wheel
[5] Mosquito net: In aluminum as standard
[6] Ventilator: large motorized fan
- Wide reinforced frame
- Vented lid
- Opens with a hand wheel
- Aluminum insect screen
- Variable speed fan – reversible
- Replaces standard 16″ roof lights
- High quality UV-resistant materials
Fiamma Camper Van Turbo-Vent Roof Fan (White) (03624F02-) Specifications:
Inner Frame Color: Ivory
Outer Frame Color: White
Lid Color: White
Fan Speed: Variable
Input Voltage: 12V
Watts: 36W
Min. Amps: 0.3 A / 0.2 A
Max. Amps: 3 A
Max Air Flow: 1200 CFM
Fan Diameter: 11-13/16″
Weight: 10.14 lb
Roof Depth: 3 to 4.5 cm (1-3/16 to 1-3/4″)
Cut-Out Dimensions: 15-3/8″ x 15-3/8″
Nominal Dimensions (Closed): 17-7/8″ x 17-7/8″ x 3-3/8″H
Fiamma Turbo-Vent Camper Van Roof Fan Models:
| Turbo-Vent Premium | Turbo-Vent | |
| Available colors | White 03624F02- | Crystal 03624F02D |
| 12V Motor | ||
| Polar Control Thermostat | ||
| Touch control | – | |
| Fan Speed | Variable | Variable |
| Tension | 12 V | 12 V |
| Absorbed power | 36 W | 36 W |
| Min. electric input | 0,3 A | 0,3 A |
| Max electric input | 3 A | 3 A |
| Max air flow | 35 m3/min | 35 m3/min |
| Fan diameter | 30 cm | 30 cm |
| Permanent air flow | 80 cm2 | 80 cm2 |
| Weight | 4,6 kg | 4,6 kg |
| Certificates | ABE 19330 E24 10R-030530 | ABE 19330 E24 10R-030530 |
| Rollo-Vent | Optional | Optional |
| Spoiler Universal | Optional | Optional |
| Thermo-Vent 40 | Optional | Optional |
Fiamma Turbo-Vent Camper Van Roof Fan (White) (03624F02-) Replacement Parts:
Fiamma Camper Van Turbo-Vent Roof Fan (White) (03624F02-) Documents:
Fiamma Turbo-Vent Camper Van Roof Fan (White) (03624F02-) Owner’s Manual
Fiamma Product Catalog from Nomadic Supply Company®
