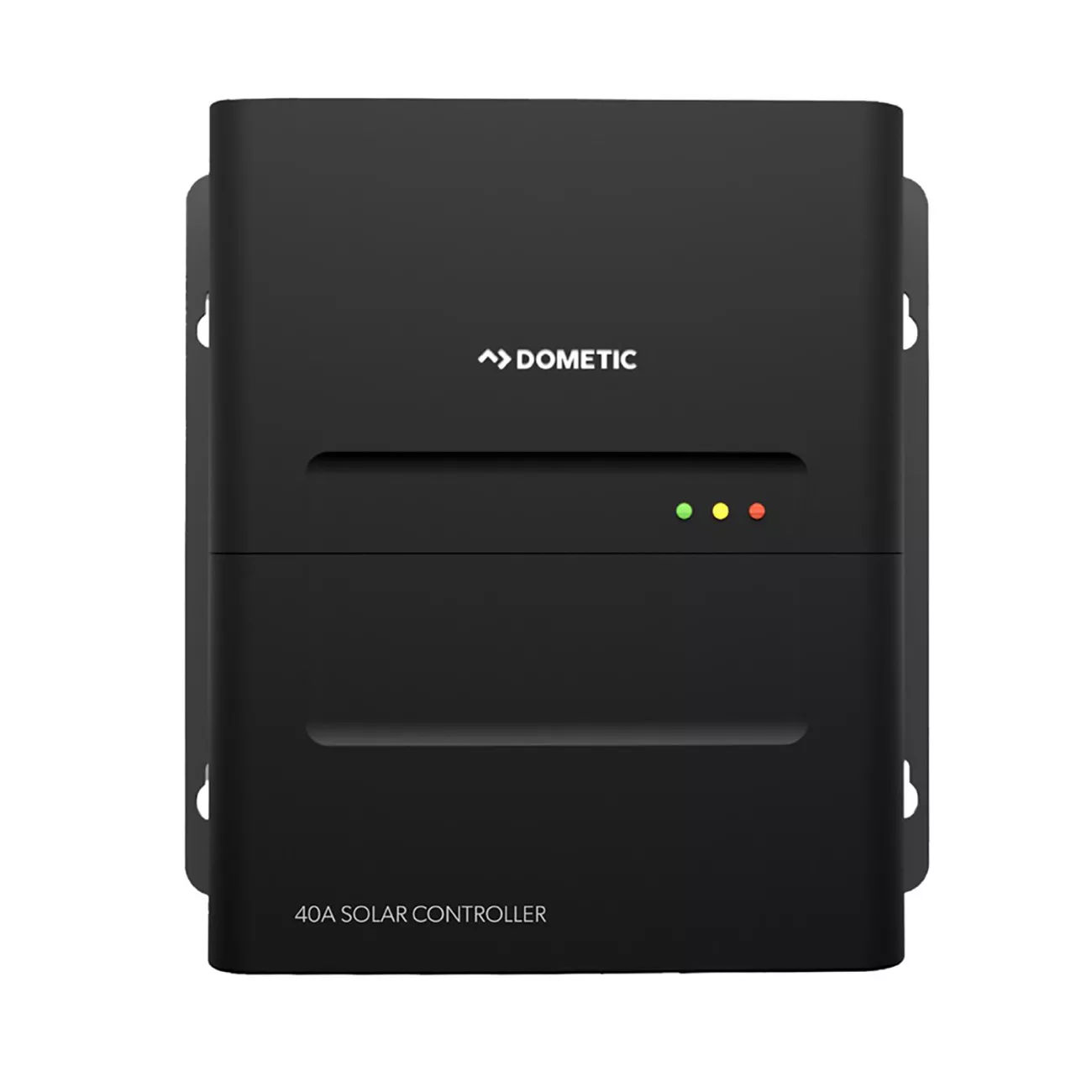

The Dometic Go Power! SC-DB-MPPT-40-12 40 Amp Digital Solar Controller from Nomadic Supply Company® optimizes the power generated by your solar panels and keeps your batteries charged and healthy. Monitor your controller remotely with the Go Power! Connect / Dometic Power app. View essential battery information and customize charge parameters using a connected handheld device.
Stackable
Expand your solar system and build the ultimate solar array. These controllers can accept up to 6400 watts of solar, using 8 controllers on a single system.
Connected
PowerTrak™ compatible. This inverter utilizes built-in intelligence and RV-C communication to interact with other PowerTrak-compatible products.
Supported by Mobile
Unlock the full potential of your RV’s power system with the Go Power! Connect / Dometic Power app! Get real-time insights into your solar charging stats, battery levels, and power consumption on your mobile device. Monitor performance and set inverter and charging parameters. Available on the iOS and Android app stores.
Dometic Go Power! SC-DB-MPPT-40-12 40 Amp Digital Solar Controller Features:
-
RV-C and PowerTrak™ compatible
-
Charge two battery banks simultaneously
- Stackable—pair up to 8 on a single system
- Supports multiple battery chemistries
- Faster install with push-in cable clamps
- Reacts faster to solar changes and shading
- Up to 98% power conversion efficiency
- Customizable charge settings
- Automatic battery voltage recognition
- 5-year warranty
Dometic Go Power! SC-DB-MPPT-40-12 40 Amp Digital Solar Controller Specifications:
| SPECIFICATIONS | SC-DB-MPPT-40-12 |
|---|---|
| System Voltage | 12/24 V |
| Temperature Compensation | -3mV/°C/2V, none for Lithium batteries |
| Battery Voltage Range | 8 V – 32 V |
| Max Total Charge Current | 40 A |
| Max Secondary Charge Current | Adjustable to a 2.5 A maximum |
| Max Panel Input Voltage | 96 Voc |
| Max PV Power Input | 900 W @12V / 1800 W @24V |
| No-Load Loss | 36.5 mA @12.5 V |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Humidity | 95% non-condensing |
| Grounding | Common Negative |
| Number of Battery Outputs | 2 |
| Max Wire Gauge (B1 & B2) | 8 AWG |
| Standards | FCC Part 15 Class B, RoHS |
| Protection | Battery reverse polarity, Over temperature, Internal overvoltage, PV overcurrent, Reverse current
(Battery to PV) |
| Stackability | Up to 8 controllers (Maximum 240 / 320A or 4800 / 6400 W solar)
Connected using 83542 – GP-RVC-PT-BC |
| Dimensions (L x W x H) | 7.55 in x 6.97 in x 2.6 in (192 x 177 x 68 mm) |
| Weight | 7 lbs / 3.18 kg |
| Warranty | 5 Years |
