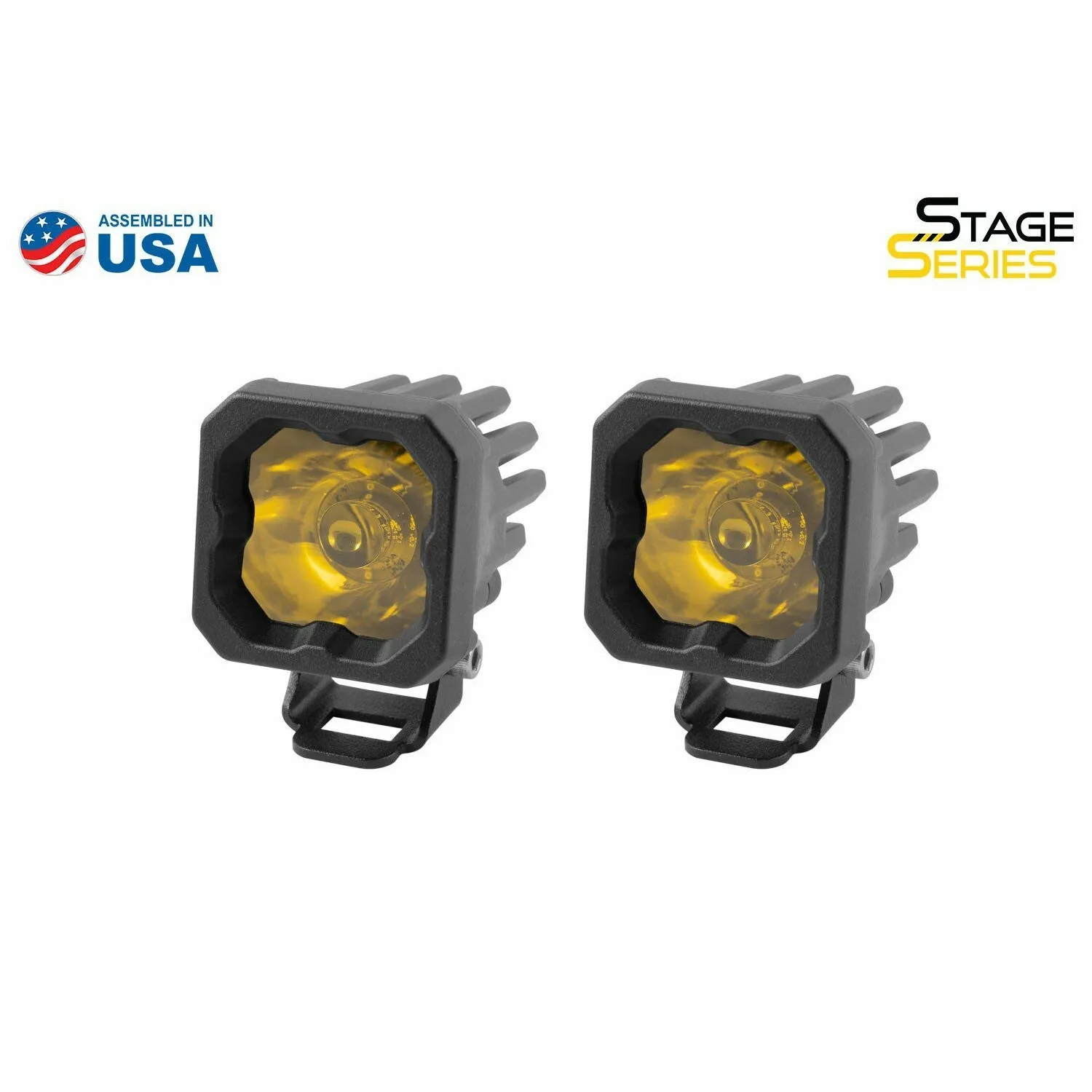

The Diode Dynamics Stage Series C1 LED Pod Sport Yellow Spot ABL (Pair) (DD6453P) from Nomadic Supply Company® is a matched pair of compact Sport single-LED pods with a universal bracket for flexible positioning on any vehicle, built around custom-engineered TIR optics that deliver maximum light output in a form factor small enough to mount where larger pods simply won’t fit. Each pod features 3000K selective yellow output, a Spot beam pattern, & an amber backlight — two functions from one ultra-compact package designed, torture-tested, & assembled in the USA.
Diode Dynamics Stage Series C1 LED Pod Sport Yellow Spot ABL (Pair) (DD6453P) Features:
- Custom TIR Optics. The SSC1’s custom-molded TIR optic serves as both the optical element & the outer lens — eliminating the ~10% light loss of standard outer-lens designs. Every lumen from the LED is collected & directed precisely on target, dramatically reducing glare while maximizing intensity versus reflector-based or basic-lens competitors.
- Spot Beam Pattern. The Spot beam delivers a highly focused 7° beam directly from the TIR optic for maximum long-distance throw. Every lumen is directed precisely on target, making it ideal for high-speed trail driving & directing light far into the distance.
- Yellow Output. Selective yellow at 3000K scatters less in rain, fog, & dust than white light, improving visibility where it matters most in poor weather while adding a distinctive look on or off road.
- Sport Power (10W). The Sport power level runs a 10-watt high-intensity LED chip — the most popular choice for auxiliary lighting where output & thermal efficiency are equally important.
- Standard Mount. The included universal bracket positions the SSC1 at virtually any angle on any surface. Compatible with optional flush mount bezels, GoPro-style mounts (adapter sold separately), & all Diode Dynamics vehicle-specific Stage Series hardware.
- Amber Backlight. The amber backlight fully illuminates the TIR optic when active — run it on a separate circuit for a warm accent that double-duties the SSC1 as both a main beam & a distinctive running or accent light.
- Interchangeable Lens. Diode Dynamics sells replacement lenses for the SSC1, allowing you to swap beam patterns or colors without replacing the entire pod — useful as your lighting needs evolve or when building out a more versatile setup.
- Proven Reliability. Every Stage Series C1 pod is tested from -40° to 185°F for long-term operation, along with vibration, moisture intrusion, & corrosion resistance — all to SAE standards used for factory automotive components. Built to last on-road and off.
- Simple Wiring. A custom-molded DT-type Deutsch-style connector with a 6″ pigtail & bare leads comes on every SSC1. Wire directly, use any off-shelf Deutsch DT-sized harness, or add an optional Diode Dynamics wiring harness.
- Quantity. This listing includes two (2) SSC1 pods — a matched pair for symmetrical installations on bumpers, A-pillars, roof racks, or any dual-light setup. Both pods are identical in output & color for uniform lighting.
- Made in the USA. Designed, torture-tested, & assembled domestically by Diode Dynamics — one of the most trusted names in performance automotive LED lighting for over a decade.
Diode Dynamics Stage Series C1 LED Pod Sport Yellow Spot ABL (Pair) (DD6453P) Specifications:
- Power: 10W per pod
- Color Temperature: 3000K selective yellow
- Beam Pattern: Spot (7° focused)
- Backlight Color: Amber
- Mounting: Standard mount with included universal bracket
- Connector: DT-type Deutsch-style, 6″ pigtail with bare leads
- Operating Temperature: -40°F to 185°F
- Quantity: 2 pods (pair)
- Part Number: DD6453P
