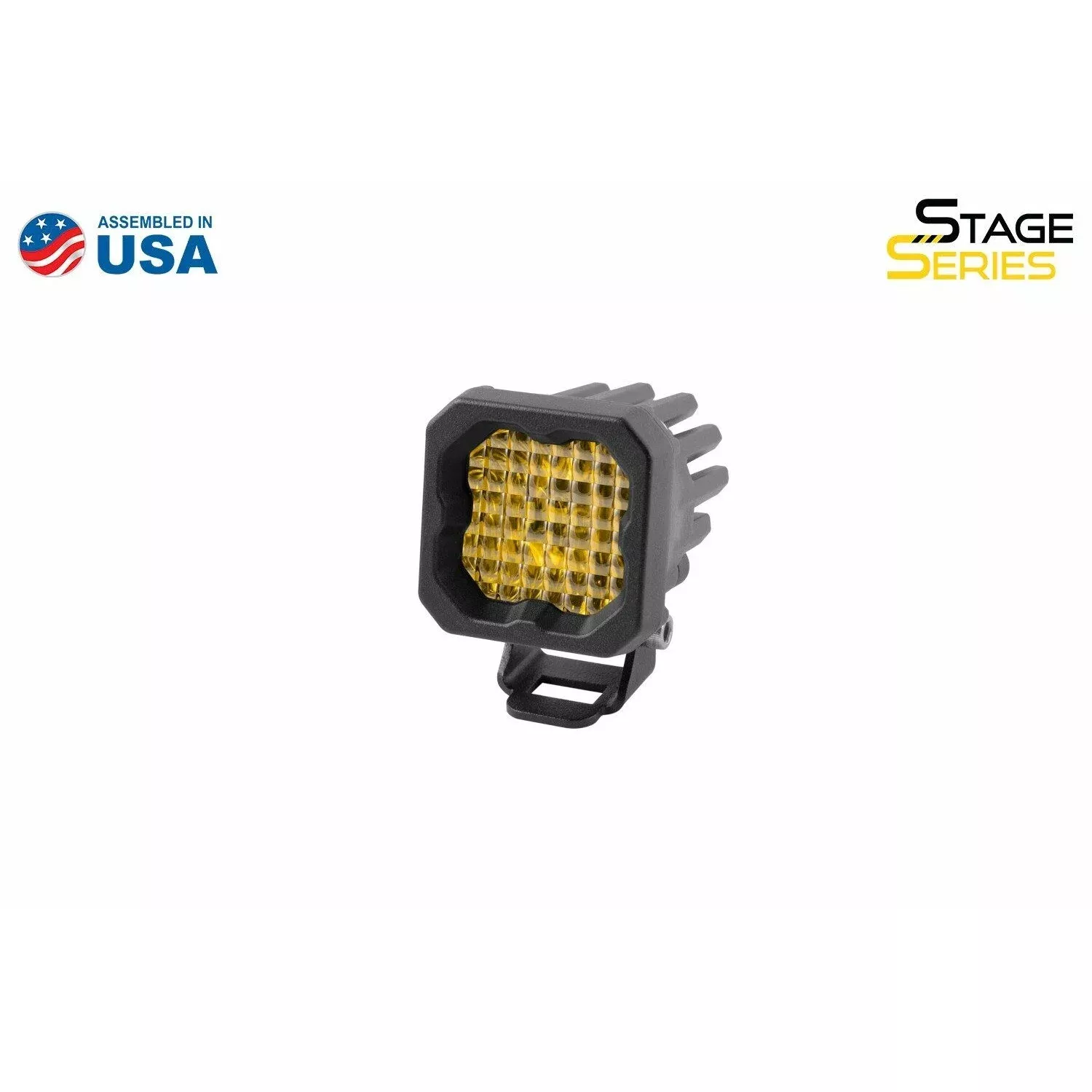

The Diode Dynamics Stage Series C1 LED Pod Pro Yellow Wide Standard ABL (DD6458S) from Nomadic Supply Company® is a compact Pro single-LED pod with a universal bracket for flexible positioning on any vehicle, built around custom-engineered TIR optics that deliver maximum light output in a form factor small enough to mount where larger pods simply won’t fit. It features 3000K selective yellow output, a Wide beam pattern, & an amber backlight — two functions from one ultra-compact package designed, torture-tested, & assembled in the USA.
Diode Dynamics Stage Series C1 LED Pod Pro Yellow Wide Standard ABL (DD6458S) Features:
- Custom TIR Optics. The SSC1’s custom-molded TIR optic serves as both the optical element & the outer lens — eliminating the ~10% light loss of standard outer-lens designs. Every lumen from the LED is collected & directed precisely on target, dramatically reducing glare while maximizing intensity versus reflector-based or basic-lens competitors.
- Wide Beam Pattern. The Wide beam spans a full 50° horizontal with a tighter 20° vertical spread, striking a balance between spread & reach. It fills out an area with enough punch to carry distance — versatile for bumper lights, ditch lights, & general-purpose auxiliary use.
- Yellow Output. Selective yellow at 3000K scatters less in rain, fog, & dust than white light, improving visibility where it matters most in poor weather while adding a distinctive look on or off road.
- Pro Power (20W). The Pro power level doubles the Sport’s wattage to 20 watts for demanding applications requiring maximum raw brightness. Note: The Pro Spot uses a slightly larger emitter than the Sport Spot, spreading output marginally more at the same beam designation.
- Standard Mount. The included universal bracket positions the SSC1 at virtually any angle on any surface. Compatible with optional flush mount bezels, GoPro-style mounts (adapter sold separately), & all Diode Dynamics vehicle-specific Stage Series hardware.
- Amber Backlight. The amber backlight fully illuminates the TIR optic when active — run it on a separate circuit for a warm accent that double-duties the SSC1 as both a main beam & a distinctive running or accent light.
- Interchangeable Lens. Diode Dynamics sells replacement lenses for the SSC1, allowing you to swap beam patterns or colors without replacing the entire pod — useful as your lighting needs evolve or when building out a more versatile setup.
- Proven Reliability. Every Stage Series C1 pod is tested from -40° to 185°F for long-term operation, along with vibration, moisture intrusion, & corrosion resistance — all to SAE standards used for factory automotive components. Built to last on-road and off.
- Simple Wiring. A custom-molded DT-type Deutsch-style connector with a 6″ pigtail & bare leads comes on every SSC1. Wire directly, use any off-shelf Deutsch DT-sized harness, or add an optional Diode Dynamics wiring harness.
- Quantity. This listing is for one (1) SSC1 pod. Additional pods, mounting hardware, & accessories are sold separately — all Diode Dynamics Stage Series C1 components are fully compatible.
- Made in the USA. Designed, torture-tested, & assembled domestically by Diode Dynamics — one of the most trusted names in performance automotive LED lighting for over a decade.
Diode Dynamics Stage Series C1 LED Pod Pro Yellow Wide Standard ABL (DD6458S) Specifications:
- Power: 20W per pod
- Color Temperature: 3000K selective yellow
- Beam Pattern: Wide (50°H × 20°V)
- Backlight Color: Amber
- Mounting: Standard mount with included universal bracket
- Connector: DT-type Deutsch-style, 6″ pigtail with bare leads
- Operating Temperature: -40°F to 185°F
- Quantity: 1 pod
- Part Number: DD6458S
