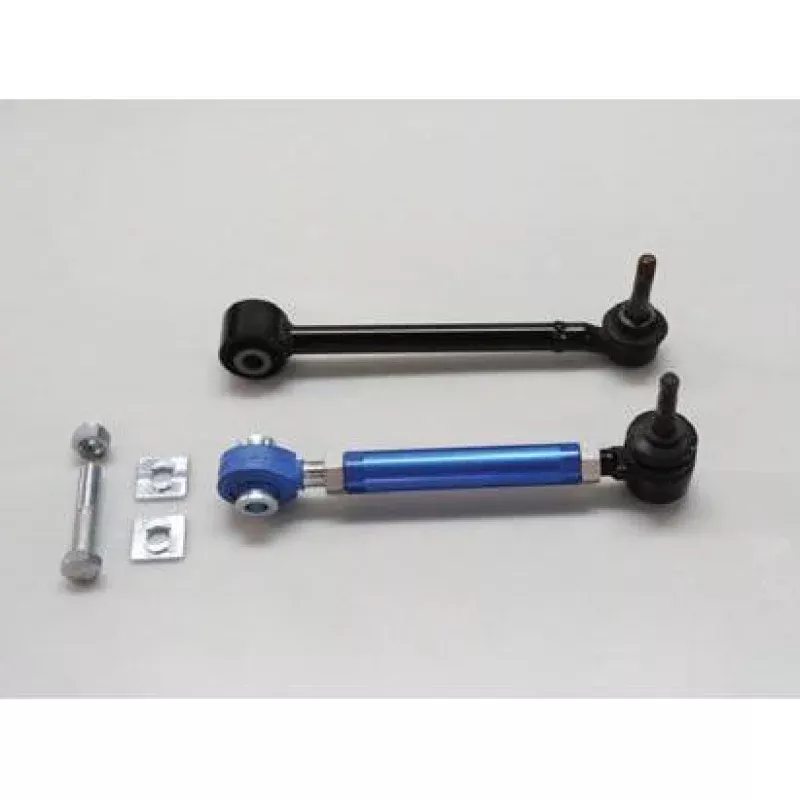

Cusco Rear Lateral Link Front +/- 12mm Toe Correction Subaru BRZ/Scion FR-S/Toyota 86

SKU: 692 474 LA | UPC: 4996338024121

Cusco Rear Lateral Link Front +/- 12mm Toe Correction Subaru BRZ/Scion FR-S/Toyota 86 2013-2021

The Cusco Rear Lateral Link Front provides exact toe adjustment up to +/-12mm per side on 2013-2021 Subaru BRZ, Scion FR-S, and Toyota 86 models. This direct OEM replacement forward rear toe arm sharpens handling by optimizing tire contact patch and minimizing understeer in corners. Track and street drivers benefit from locked-in rear geometry for confident control.

Key Features

• +/- 12mm Toe Adjustment: Full-length threading allows precise shifts up to 12mm per side to dial in alignment for track aggression or street comfort
• 6061 Aluminum Construction: Forged lightweight body cuts unsprung mass versus OEM steel while holding firm against suspension loads
• Spherical Pillow Ball Ends: 16mm heim joints with 5-ton rating kill bushing slop for direct steering feedback and zero deflection
• Direct Bolt-On Design: Matches ZN6/ZC6 chassis specs with no cutting or fabrication needed for instant fitment
• Enhanced Chassis Rigidity: Reinforces rear toe control to sustain geometry under heavy lateral forces and high-speed turns

Product Notes

• Requires professional wheel alignment post-install to set toe within +/-12mm range
• Sold individually for left or right side service
• Works with OEM or aftermarket shocks, springs, and sway bars

Installation Notes

• Professional installation recommended.
• Torque spherical joints and bushings to Cusco spec of 45-55 Nm
• Reuses OEM bolts. spherical ends self-center during bolt-up

This Part Fits

Why Choose Cusco?

• Decades of JDM motorsport development for reliable track performance
• Precision CNC-machined components built to last under daily abuse
• Street DRIVE series balances adjustability with everyday drivability

Frequently Asked Questions

• Q: Will this fit all 2013-2021 BRZ/FR-S/86 models?
  A: Yes, direct bolt-on for ZN6 Toyota 86/Scion FR-S and ZC6 Subaru BRZ chassis from 2013-2021, including GT, TRD, and special editions
• Q: What material is used for the link?
  A: Forged 6061-T6 aluminum arm with 16mm spherical bearings rated for 5-ton loads
• Q: Is alignment needed after install?
  A: Yes, four-wheel alignment required to verify +/-12mm toe adjustment and promote even tire wear
