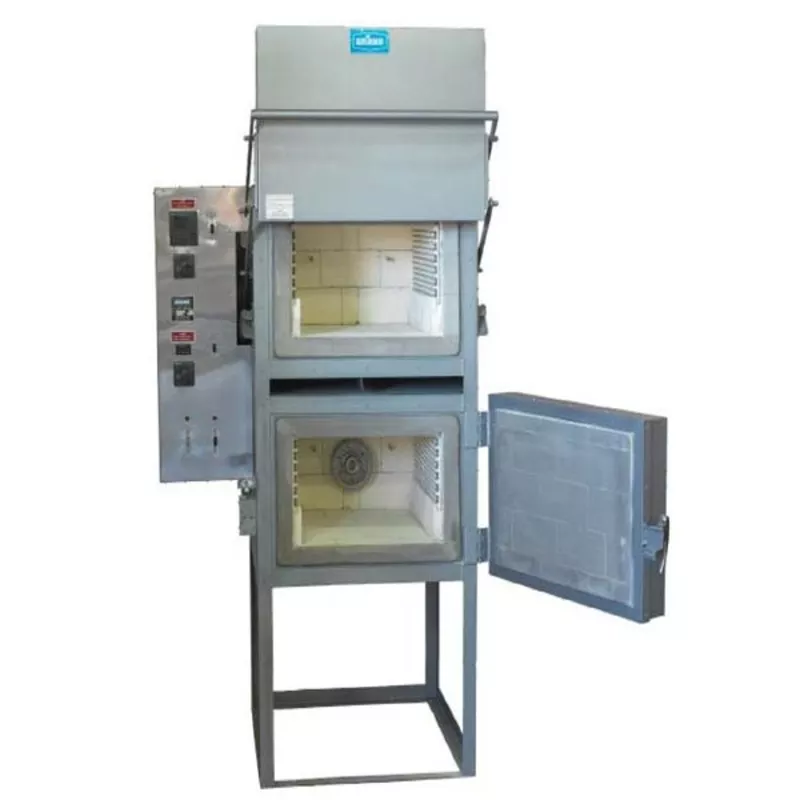

| Model: | Cress Kilns – C163210D |
| Top Dimensions Inside: | 32″ (length) x 16″ (width) x 10″ (height) |
| Bottom Dimensions Inside: | 29″ (length) x 16″ (width) x 10″ (height) |
| Dimensions Outside (Overall): | 60″ (length) x 43″ (width) x 62″ (height) |
| Elements: | Side Elements |
| Max Intermittent Temp: | 2250 F |
| MaxContinuousTemp: | 1250 F |
| Input Power: | 18,.5kW |
| Voltage: | 240V Optional 208V or 480V |
| Amperage (1P/3P) | 80/60amps (240V) 91/61amps (208V) 39/31amps (480V) |
| Shipping Weight: | 1400 (Motor Freight) |
