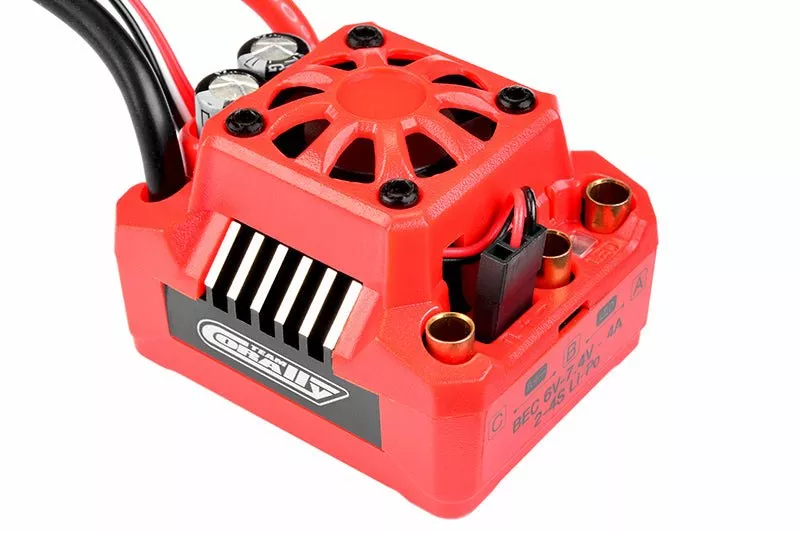

Corally – Speed Controller Torox 135 Brushless 2-4S (Radix 4)

Max. Cont. Current (A):135A
Weight (g):105 g
Motor Limit:
2S LiPo / 6 Cell NiMH: KV=6000 (3656 size motor)
3S LiPo / 9 Cell NiMH: KV=4000 (3656 size motor)
4S LiPo / 12 Cell NiMH: KV=3000 (3656 size motor)
Input Voltage (V) min. – max.:7.4 – 14.4 V
Max. Current (A):850A
Length (mm):49 mm
Nr of Li-xx Cells:2-4S LiPo
Width (mm):39.5 mm
Nr of Ni-xx Cells:6-12 Cells
Height (mm):34.7 mm
BEC Voltage (V):6-7.4 V programmable
BEC Current (A):6A
Lipo Cut off:Programmable
Thermal Protection Temperature:105C / 125C programmable
Water Protection:Yes
Cooling Fan:30x30x10 mm
Connector (Motor):6.5 mm female
Connector (Battery):XT90-connector
Battery wire size:10 AWG
Car Type Use:1/10 – 1/8 scale
