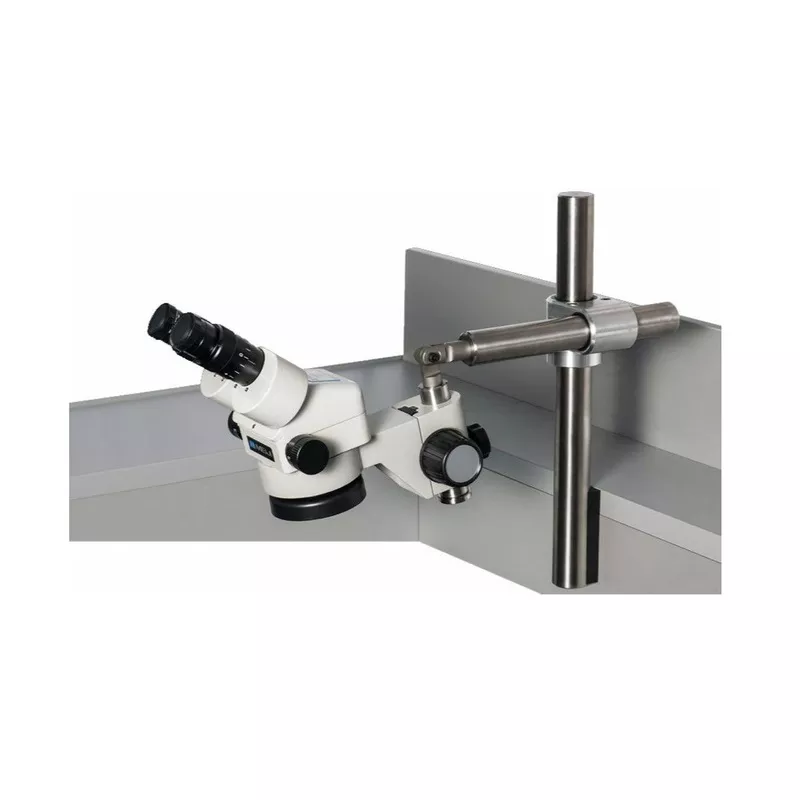

This microscope package pairs the Meiji EMZ-10 zoom microscope with the Jura by GRS fixed-position stand and an LED ring/spot light to create a stable, repeatable micro stone setting workstation. It is the configuration recommended by Jura for use on a Jura bench or similar jeweler’s workbench.
Features
- Purpose-built for micro stone setting: The Jura by GRS stand uses fixed-position geometry to keep working angles constant throughout a session.
- Flexible mounting: The newest version of the Jura by GRS stand can be bench-top mounted or wall mounted.
- Set-and-forget adjustment: Position is set via two set-screw pointsonce dialed in, no frequent repositioning is required.
- 0 protective lens: Used in place of an auxiliary lens to preserve optical performance while protecting the objective and maintaining the standard 110 mm working distance.
- Wide zoom range: The EMZ-10 delivers a 6.5:1 zoom ratio for fast framing from layout to fine detail inspection.
- Included LED light: Provides consistent, adjustable illumination at the work surface without requiring a separate purchase.
Specifications
| Zoom Ratio | 6.5:1 |
|---|---|
| Zoom Range | 0.7 4.5 |
| Magnification (with 10 eyepieces) | 7 45 |
| Field of View | 32 mm 5.1 mm |
| Standard Working Distance | 110 mm (with 0 protective lens) |
| Eyetube Inclination | 45 |
| Interpupillary Distance | 54 75 mm |
| Dioptric Adjustment | Dual (5 diopters) |
| Extended Magnification Range* | 2.1 270 |
| Extended Working Distances* | 45 mm 326 mm |
*With optional auxiliary lenses; see Notes section below.
What’s Included
- Meiji EMZ-10 zoom microscope body
- 10 eyepiece pair (MA502)
- 0 protective lens protects the objective and maintains 110 mm working distance
- Jura by GRS microscope stand bench-top or wall mount
- LED light source (129.934)
Notes
- For micro stone setting, maintain the recommended 110 mm working distance when using the included protective lens.
- If additional tool clearance is needed, an optional auxiliary lens can be usednote that greater working distance reduces maximum magnification.
- Optional auxiliary lens performance with 10 eyepieces: 0.3 yields 326 mm working distance and 2.1 13.5 magnification; 0.5 yields 194 mm and 3.5 22.5; 0.75 yields 127 mm and 5.25 33.75.
- When installing the Jura by GRS stand, set height and reach once, then lock both set screws to preserve alignment.
