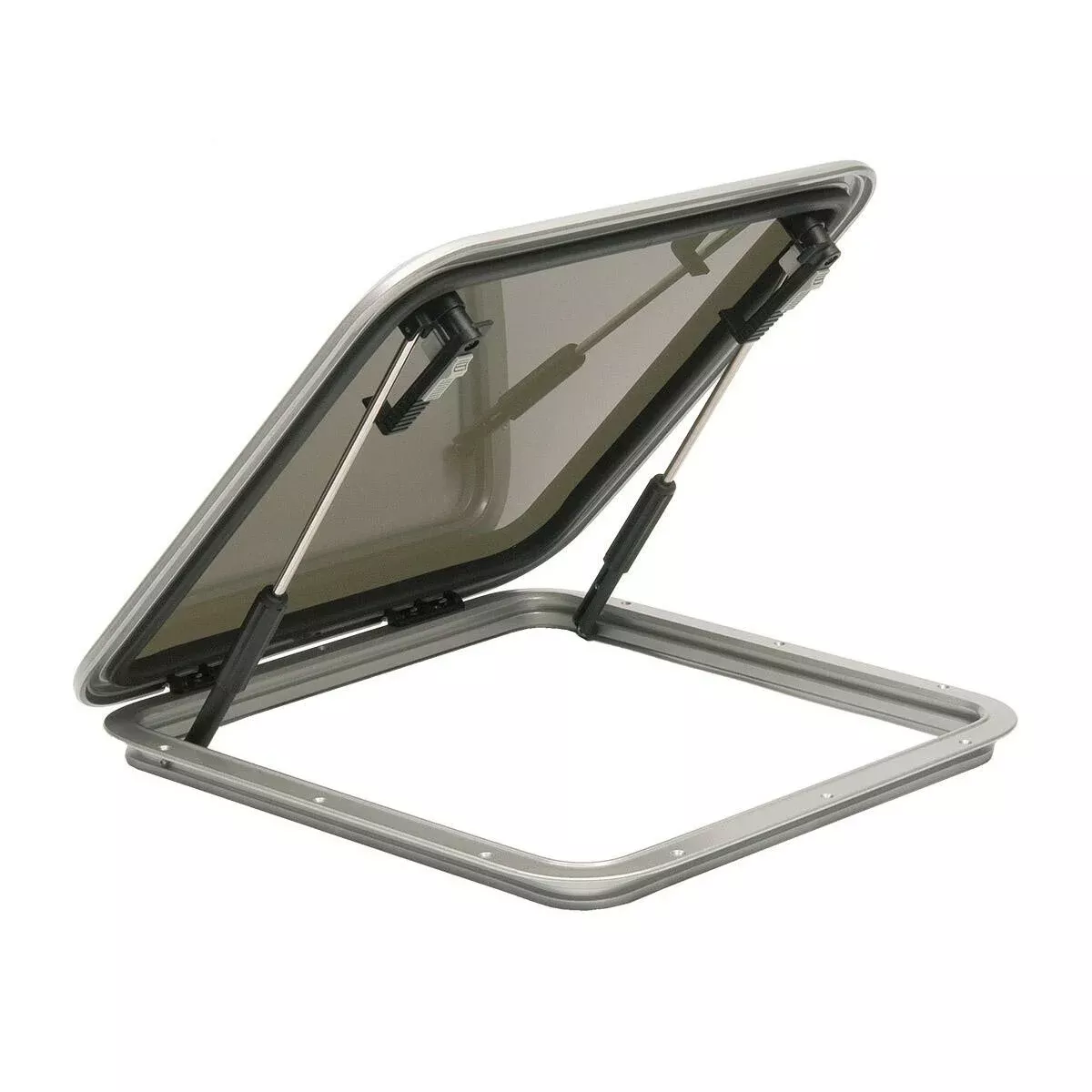

The Bomar Low-Profile A-Series Deck Hatch w/ Smoke Window (N1039-10A) from Nomadic Supply Company® has an anodized heavy-duty aluminum frame with a heavy-duty acrylic top and a Style A-external hinge. No sharp corners to snag lines or sails. Heavy-duty hinges, quick-acting, adjustable tie-down dogs. Locked vent position. opens a full 180 degrees and locks in the vent position.
Bomar Low Profile Extruded Deck Hatch design features heavy-duty hinges and snag-free opening to produce a neat and functional hatch as chosen by many major boat builders throughout the world. Available in a choice of clear anodized, or white powder-coated, heavy-duty extruded aluminum frames with a tough smoke acrylic pane which assures privacy, yet allows in plenty of light. White acrylic panes are available for special order.
The Bomar Low-Profile A-Series Deck Hatch w/ Smoke Window (N1039-10A) is original equipment on many boats, including Bayliner, Wellcraft, Carver, and Silverton.
The Bomar Low-Profile A-Series Deck Hatch w/ Smoke Window (N1039-10A) is constructed of anodized, heavy-duty aluminum and tough smoked acrylic. No sharp corners to snag lines. Adjustable tie-down dogs. Supplied fully assembled.
Bomar Low-Profile A-Series Deck Hatch w/ Smoke Window (N1039-10A) Features:
- Anodized heavy-duty aluminum frame, smoked-acrylic lens
- Adjustable latches with locked vent position
- Heavy-duty hinges with stainless-steel supports
- One year warranty
- “P series” lid style with internal hinges
- Twist lock adjustable riser arms keep the hatch open from 0º to 90º.
- Internal/external closing handles
- Single riser arm
- Heavy-duty anodized aluminum frame and external (A) hinges
- High-impact acrylic lens
- No sharp corners to snag lines or sails
- Quick-acting adjustable tie-down dogs
- Stainless steel riser arm holds hatch lid open in any position up to 90°
- Adjustable latches with lockable vent position
- Spare parts available
- Optional molded trim ring and sewn screen available separately
- CE certified for Design Category A / Area II
Bomar Low-Profile A-Series Deck Hatch w/ Smoke Window (N1039-10A) Specifications:
- Lens color: Smoke
- Lens material: 1/4″ Acrylic
- Frame material: Clear anodized aluminum
- Hatch opening: 19-1/16″ x 19-1/16″ (484 mm x 484 mm)
- Cutout dimensions: 20-3/16″ x 20-3/16″ (513 mm x 513 mm), 1-11/16″ (43 mm) corner radius
- O.D. deck flange: 21-13/16″ x 21-13/16″ (554 mm x 554 mm)
- O.D. lid: 22-5/8″ x 22-5/8″ (575 mm x 575 mm), 2-7/8″ (73 mm) O.D. radius
- Deck-to-lid height: 15/16″ (24 mm)
- Internal flange: 25mm deep
- Cut out radius: 43mm
- Height Deck to Lid: 24mm
Note: Allow 1/2″ clearance for external (A) hinges
Sold Separately:
- Bomar Low-Profile A-Series Deck Hatch Trim Ring (NT2039) fits internally to cover cut-outs
- Insect screens fit inside hatch
- Seabreeze sliding shade screens available to suit some models
Bomar Low-Profile A-Series Deck Hatch w/ Smoke Window (N1039-10A) Documents:
Bomar Low-Profile A-Series Deck Hatch Product Sheet
