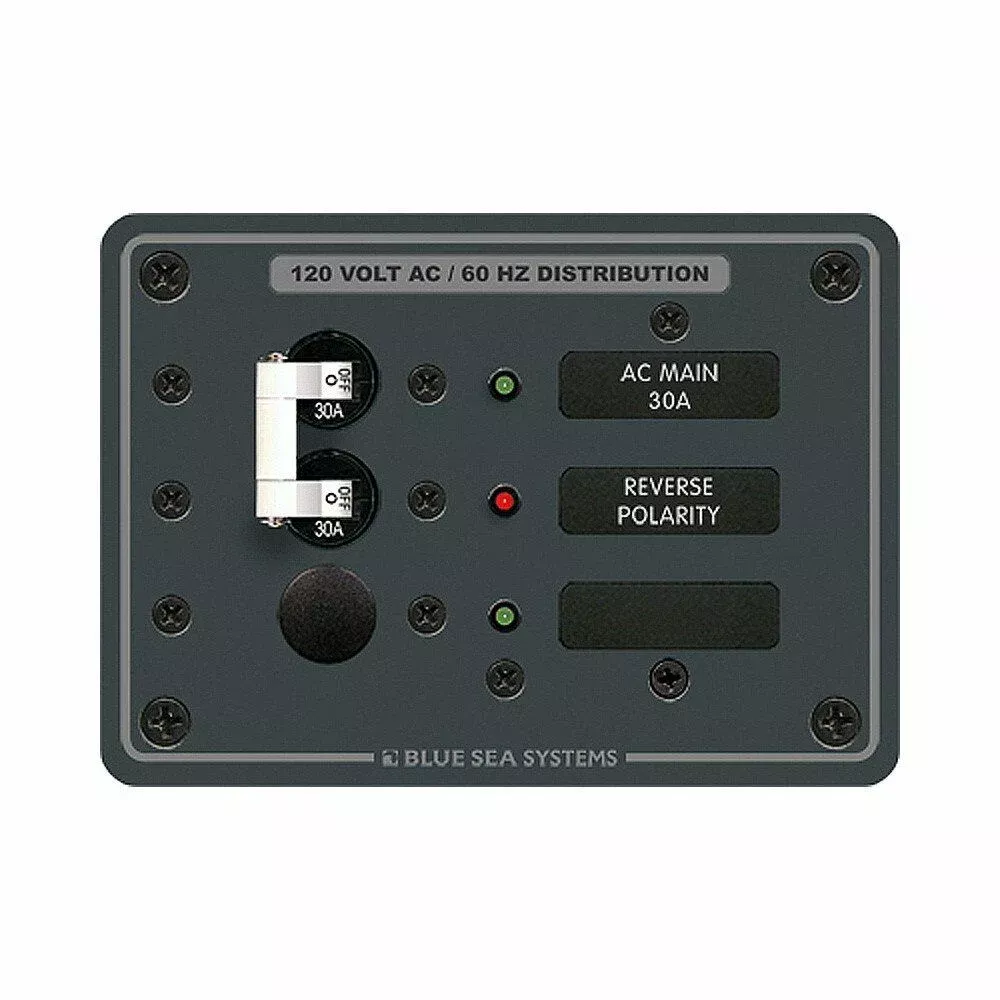

The Blue Sea Traditional Metal AC Panel AC Main 1 Position (8029-BSS) from Nomadic Supply Company®.
The Blue Sea 8029 AC Main +1 Position Breaker Panel provides protection to your vessel’s electrical system from an AC power source. It includes a 30A main and a place for a single circuit breaker.
Blue Sea Traditional Metal AC Panel AC Main 1 Position (8029-BSS) Features:
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels – No kit required
- “ON” indicating LEDs installed in all circuit positions
- Interior circuit breaker panel
- 30A main breaker
- (1) blank space for a circuit breaker
- Green ON-indicating LEDs installed in all circuit positions
- Red reverse polarity indication LED
- All hot, neutral and safety ground buses installed and fully pre-wired
- Tin-plated copper bus bars provide high conductivity and corrosion resistance
- Includes AC panel basic label set
- Backlit label positions
- Detailed installation instructions and cutout template included
Blue Sea Traditional Metal AC Panel AC Main 1 Position (8029-BSS) Specifications:
- Positions: 1
- Nominal Voltage: 120v AC
- Main + (1) Blank position
- Nominal Voltage: 120V AC
- Max. Panel Amperage: 30A
- Circuit Breaker (A-Series): Main, 30A
- Actuator: White toggle
- Dimensions: 5.25″ W x 3.75″ H x 2.50″ D
Blue Sea Traditional Metal AC Panel AC Main 1 Position (8029-BSS) Includes:
- (2) 8034 LED – 120v AC Green
- (1) 8066 LED – 120v AC Red
- (1) 7238 A-Series White Toggle Circuit Breaker – Double Pole 30A (Main)
Blue Sea Traditional Metal AC Panel AC Main 1 Position (8029-BSS) Documents:
Blue Sea 8029 AC Main +1 Position Breaker Panel Installation Manual
