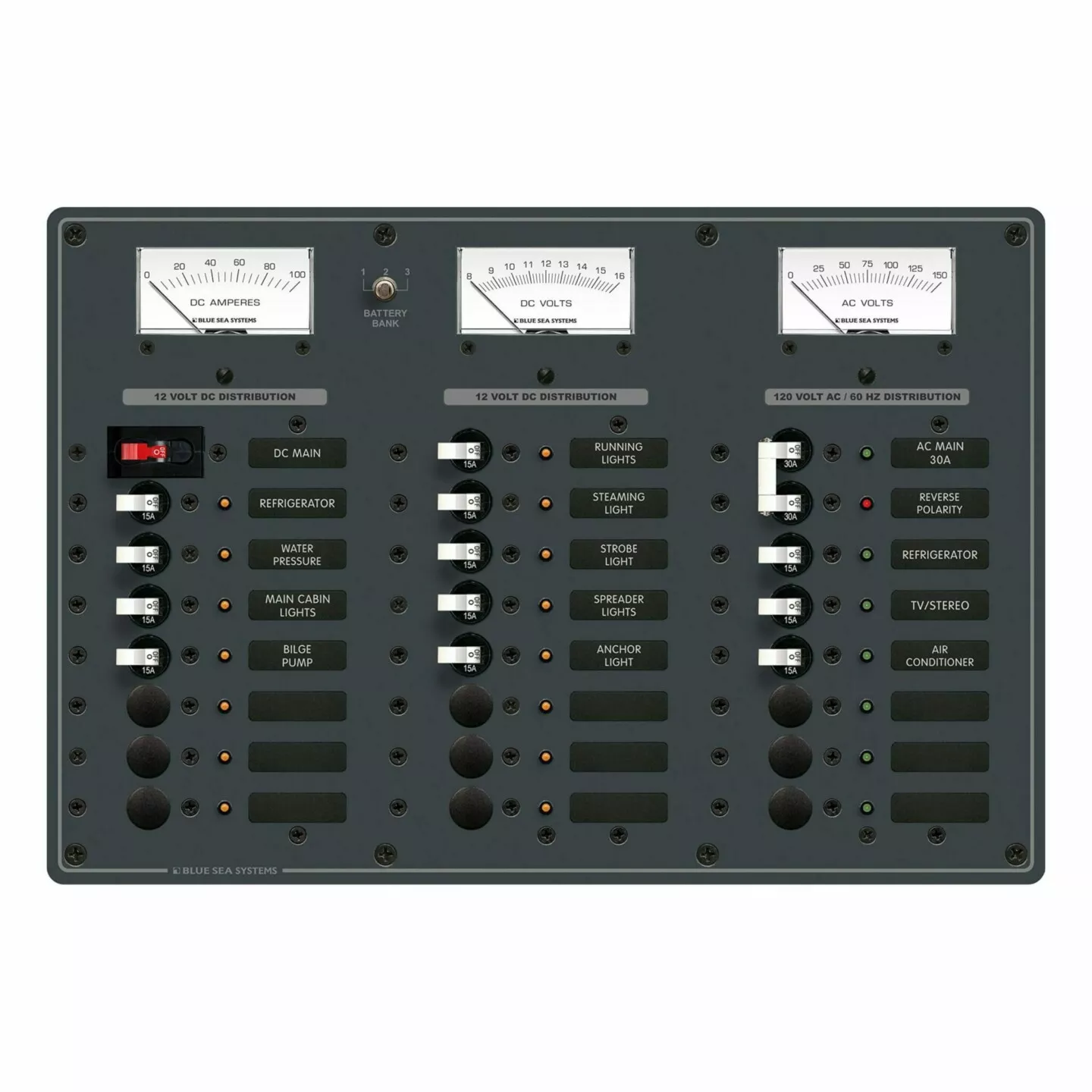

The Blue Sea 8084 AC/DC Combination Circuit Breaker Panel from Nomadic Supply Company® combines AC and DC switching, circuit protection, source selection, and monitoring in a single panel.
Blue Sea AC Main 6 Position and DC Main 15 Position Panel (8084-BSS) Features:
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC
- Traditional metal panel style
- ON-indicating LEDs installed in all circuit positions
- Label backlighting pre-installed
- Includes analog voltmeters 9353 (AC) and 8003 (DC), as well as analog ammeter 8017 (DC)
- Includes toggle switch to monitor voltage on up to (3) batteries
- All AC and DC buses installed and fully pre-wired
- Tin-plated copper bus bars provide high conductivity and corrosion resistance
- Complete with circuit identification label sets, detailed installation instructions and cutout template
AC Features:
- Red reverse polarity indicating LED
- Ready for installation of optional 4029 AC Isolation Cover
- 9353, 0-150 Volt AC Voltmeter
DC Features:
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
- Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter
Blue Sea AC Main 6 Position and DC Main 15 Position Panel (8084-BSS) Specifications:
- AC/DC voltage: 120V AC/12V DC
- Max. panel amperage: 50A AC, 100A DC
- Total AC positions: Main + (6) Positions
- Total DC positions: Main + (15) Positions
- AC circuit breakers: Main, 30A AC/(3) Branch, 15A AC
- DC circuit breakers: Main, 100A DC/(9) Branch, 15A DC
- AC Voltmeter displays voltage from 0-150V AC
- DC meters:
- Voltmeter displays voltage from 8-16V DC
- Ammeter displays amperage from 0-100A DC
- Actuator style: White toggle
- AC Positions: Main +6
- DC Positions: Main +15
- 120 Volts AC
- 12 Volts DC
- (1) 30A – (3) 15A AC Circuit Breakers
- (1) 100A – (9) 15A DC Circuit Breakers
- Height 10.00in (254 mm)
- Width 14.75in (374.65 mm)
- Depth 3.00in (76.2 mm)
- Weight 6.50lb (2.95 kg)
- Weight 8.75lb (3.97 kg)
*Combined AC/DC panels require an AC Insulating Cover to meet ABYC Standards
