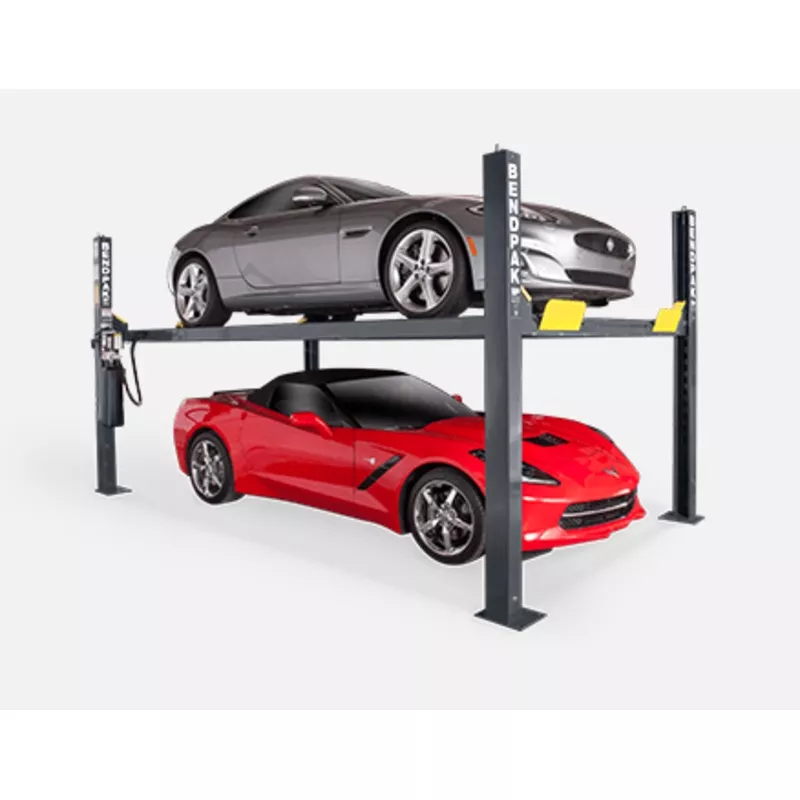

BendPak HD-9STX 4 Post 9,000 LB Lift
This product requires a forklift provided by the customer at the shipping destination to offload.
The HD-9STX is our tall and narrow four-post lift that combines a small horizontal footprint with extended-height runways, so higher-clearance vehicles can be easily parked underneath.
More Height in Less Floor Space
The HD-9STX is your 9,000-lb. rugged lifting solution for when you need get something heavy and high, but you don’t have a lot of space on the ground. Perfect for vehicle storage and servicein the shop or garages with high ceilings. Whether you’re a service professional or a DIY’er, BendPaks got the right lift for you. This model is available with optional casters, drip-trays, jack platform and more.
With more height to work with, this lift does something others do not: it fits trucks and SUVs in the lower level. This is essential for parking purposes, especially if your lower-level vehicle is too heavy for the runways. A high-rise lift also increases the comfort of techs working underneath. Pulling transmissions and draining oil is safer and easier on high-rise car lift. The HD-9STX eliminates stooping and awkward straining when accessing the vehicle underbody. When youre uncomfortable, youre more likely to make mistakes, and theres nothing better than a car lift that lifts to the perfect height. The HD-9STX maximizes versatility in a car lift that adapts to your height and lifestyle. The narrow designs fits in the same floor space as the HD-9ST but requires a bit more ceiling height to fully enjoy.
Features:
- 9,000-lb. maximum lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Freestanding design
- Narrow-width
- High-rise
- Perfect for parking, storage and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8″ aircraft cable
- Rugged 1.25″ roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Runways feature non-skid surface
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low-ground clearance vehicles
- Optional drive-thru ramps available
- Optional drip trays available
- Optional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
- ETL Approved
Specifications:
- Capacity:
- Lifting Capacity* | 9,000 lbs. (4,082 kg)
- *Max Capacity | Front Axle 4,500 lbs. (2,041 kg)
- *Max Capacity | Rear Axle 4,500 lbs. (2,041 kg)
- Rise:
- A – Min. Runway Height | 5″ (127 mm)
- B – Max. Rise | 82″ (2,083 mm)
- C – Max. Lifting Height | 86.5″ (2,197 mm)
- Time to Full Rise | 50 seconds
- Outside Dimensions:
- D – Overall Width | 100.25″ (2,546 mm)
- E – Outside Length | 198″ (5,029 mm)
- F – Overall Length | 224″ (5,690 mm)
- G – Height of Columns | 100″ (2,540 mm)
- Inside Dimensions:
- H – Width Between Columns: 89.75″ (2,280 mm)
- I – Drive-Thru Clearance: 76.5″ (1,943 mm)
- Runways:
- J – Runway Width: 19″ (483 mm)
- K – Length of Runways: 188″ (4,775 mm)
- L – Width Between Runways: 37.5″ (953 mm)
- M – Runway Centerline: 56.5″ (1,435 mm)
- N – Outside Edge of Runways: 75.5″ (1,918 mm)
- Minimum Wheelbase:
- Rated Capacity | 135″ (3,429 mm)
- 75% Capacity | 115″ (2,921 mm)
- 50% Capacity | 95″ (2,413 mm)
- 25% Capacity | 80″ (2,032 mm)
- Locking:
- Locking Positions | 15
- Lock Spacing | Every 4″ / 102 mm
- Power Unit:
- Motor | 220 VAC / 60 Hz. 1Ph.
- Noise | 45 dB
- Shipping:
- Weight | 1,992 lbs. / 906 kg
- Dimensions | 190″ x 22″ x 41″
Optional Accessories(Sold Separately):
- 5174670 |48″ Aluminum Approach Ramp Kit / Pair
- 5210207 |4-Post Lift Aluminum Deck Platform / Diamond Plate
- 5210997 |Portable Wheel Kit / Fits HD-7 and HD-9 Series Four-Post Lifts / Set of 4
- 5150509 |18 Gallon Rolling Drain Pan For 4-Post Lifts
- 5175800 |Fixed Sliding Jack Tray / FITS NARROW RUNWAY POSITIONS ONLY
- 5175349 |6,000-lb. Capacity / Telescoping Sliding Jack Platform
- 5175801 |3,000-lb. Capacity / Telescoping Boat Trailer Tongue Platform
- 5215306 |Compressed Air Bottle for 4-Post Lifts Safety Locks
PLEASE NOTE, IMPORTANT INFORMATION:
- This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. (Liftgate Delivery is not an option on this product. You must provide a way to get it off the truck.)
- Note:An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
- Note:Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 2017.
