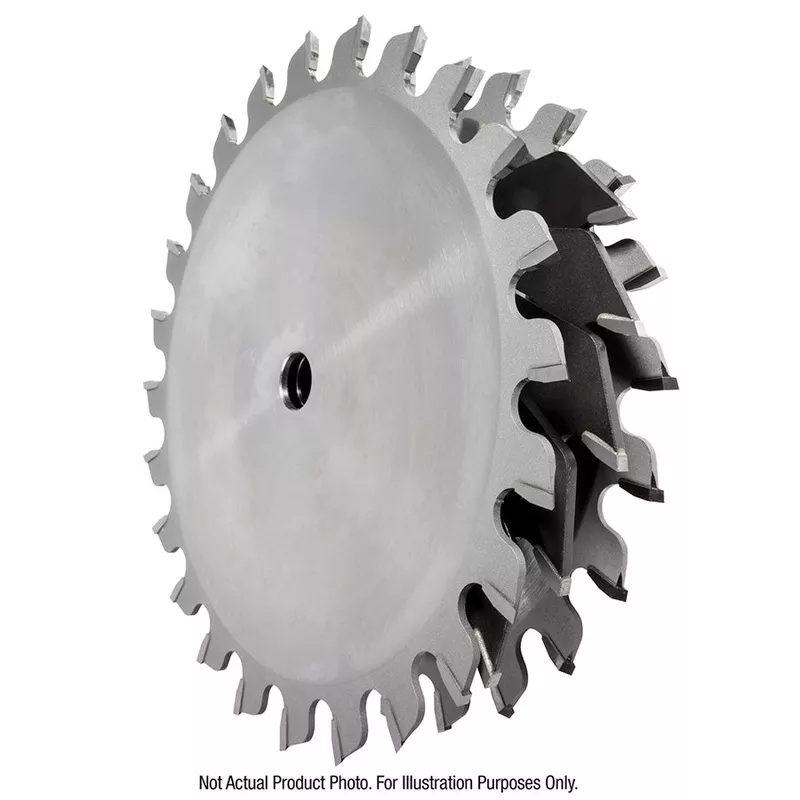

651030-1, Amana Carbide Tipped Dado 10 Inch Dia x 24T ATB/FT 15 Deg, 1 Inch Bore, Dado Set with Five 2-Wing Chippers
Dadoes (cross-grain cuts) and grooves (cuts with the grain) are cut efficiently on the table saw with a dado stack set. Unlike a wobbler, a stack set produces a flat-bottom cut with chip-free edges. Amana Tool makes dado stack sets for every machine and every type of woodworking material. The standard width capacity ranges from 1/4″ to 13/16″. Additional chippers may be purchased separately to expand the capacity beyond 13/16″. The standard set, regardless of diameter or tooth count, consists of two outside saw blades and four inside chippers. The outside blades feature hollow-ground plates for proper clearance, and alternate top bevel (ATB) grind with every sixth tooth flat ground (FT).
For plywood and melamine, the sets with 46-tooth outside blades are recommended.
Teeth refers to the number of teeth for each outside saw blade.
Specifications:
| (D) Diameter | 10 (250mm) |
|---|---|
| Teeth | 24 |
| (d) Bore | 1 |
| Tooth Grind | ATB/FT |
| Hook Angle | 15 |
| Kerf (B) | 1/4 – 13/16 |
| Description | (5) 2-Wing Chippers |
