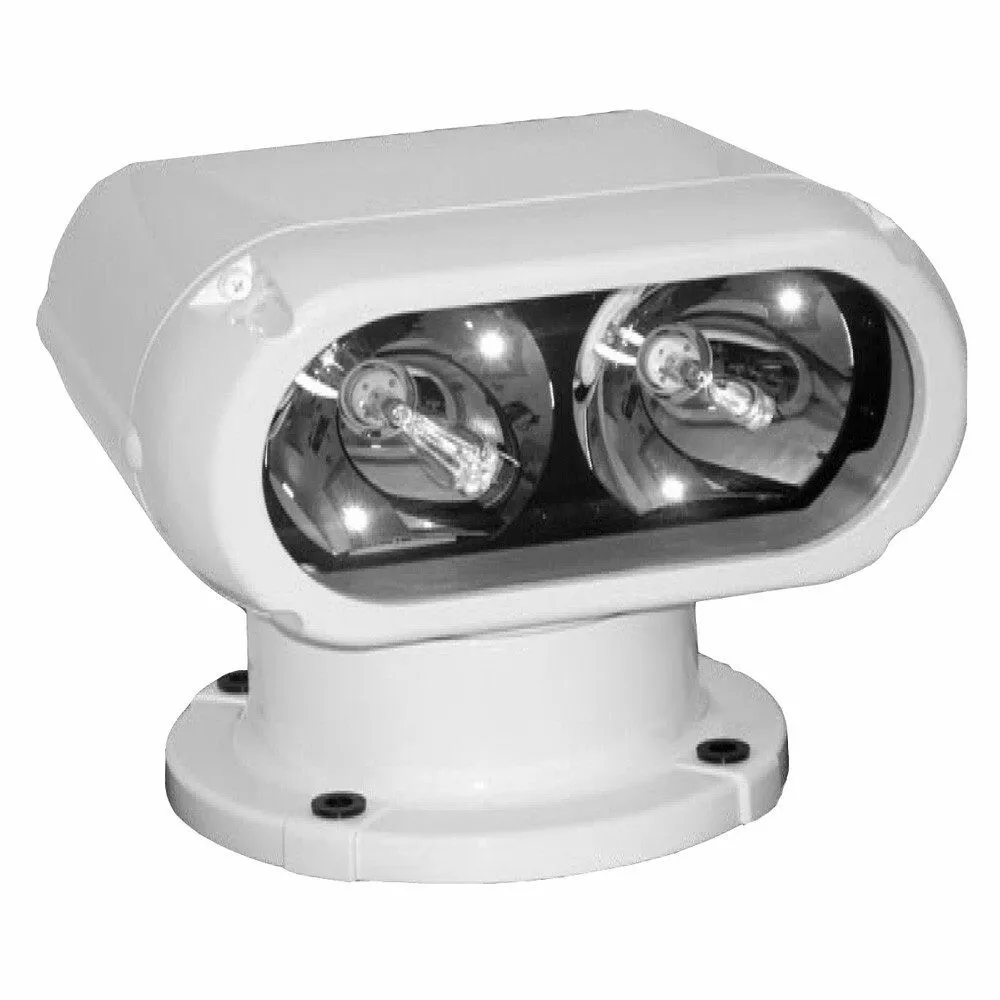

The ACR RCL-300 12V/24V Remote Controlled Search Light from Nomadic Supply Company® is gasketed and finished to stand up to the marine environment, and all functions can be operated using the supplied Point Pad™ and Master Controller (up to three remote controllers may be installed).
Twin, 35-watt, Metal Halide HID lamps create a narrow-beam searchlight that’s perfect for large sport yachts and mega-yachts, as well as large sport fish and commercial vessels. The RCL-300A Searchlight is made to improve safety at sea during night operations. It’s also simple to use with a commercial-grade joystick that has an IP 69K rating and illumination.
ACR RCL-300 Remote Controlled Searchlight 12V/24V (1933) Features:
- 12v – 24v 1 million* CD
- Internal elevation mechanism provides pitch control of spotlight beam; protects elevation mechanism from weather
- Includes a fingertip remote control Point Pad; up to three remote Point Pad units may be installed on the system; surface/flush mount options included
- Rugged triple-primed and sealed, marine-grade aluminum housing
- Exclusive XRCiZ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
- Auto return function that returns light to forward position when powered down
- Salt water-resistant construction with nylon and phenolic washers, aluminized stainless steel screws with insulating lubricant
- Wiring harness included
- *Twin 35w, metal halide HID lamps provide over 500k CD each and 1 million effective CD when combined
ACR RCL-300 Remote Controlled Searchlight 12V/24V (1933) Specifications:
- Size: 12″ x 13″ x 9.3″ (31 x 33 x 23.5 cm)
- Weight: 36lbs (16.39 kg)
- Material: Marine grade cast aluminum, tempered glass
- Input Voltage: 12V-24VDC
- Amp Draw Startup 25A @12V, Running 8A @ 12V
- Color: White
- Operation: Remote-controlled Point Pad
- Beam Angle: 6°
- Elevation Angle: 15° up, 30° down
- Rotation: 360° continuous
- Rotation Speed:Fast 30° per second Slow 10° per second
- Elevation Speed: 3° per second
- Lamp: Twin 35 Watt metal halide lamps 1,000 hours operating life
ACR RCL-300 12V/24V Remote Controlled Search Light Accessories:
- Secondary Point Pad for remote control with install kit (P/N 9282.3)
- Replacement 35 Watt Halide lamps (P/N 6009)
- Footprint Diameter: 9″ (23cm)
- Limited Warranty: 1 Year
- Carton Dimensions:20.5″ x 14.25″ x 19.25″
- Carton Weight: 40 lbs
ACR RCL-300 Remote Controlled Searchlight 12V/24V (1933) Documents:
ACR RCL-300 Remote Controlled Search Light 12V/24V Quick Guide
ACR RCL-300 Remote Controlled Search Light 12V/24V Brochure
ACR RCL-300 Remote Controlled Search Light 12V/24V Owner’s Manual
ACR RCL-300 Remote Controlled Search Light 12V/24V Installation Guide
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
